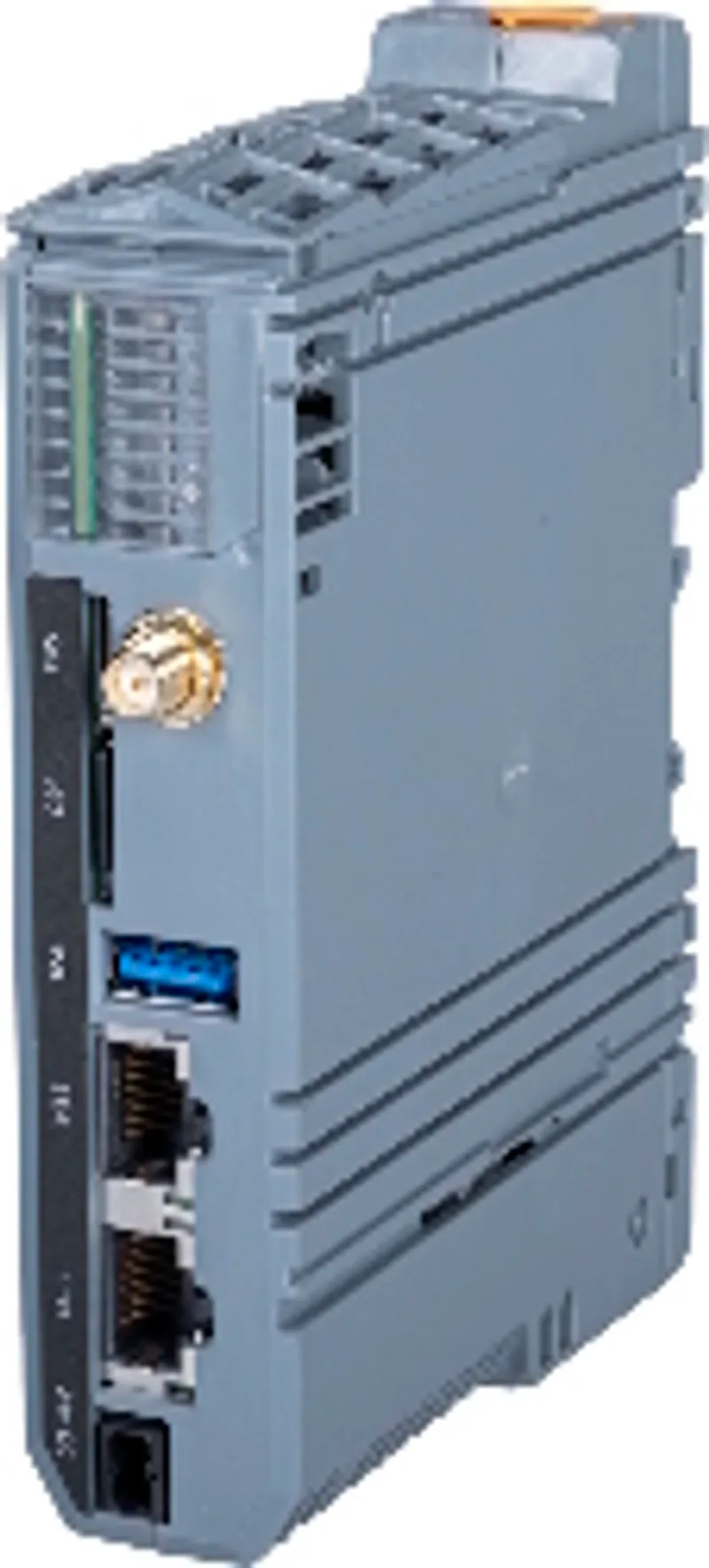

What is the B&R X20EDS410-4G?
B&R's X20 Edge connects machine control with enterprise systems for enhanced production insight. Equipped with an ARM-based CPU and Linux OS, it provides flexible programming possibilities like Python and a containerized environment for deploying AI, machine learning and IIoT applications. Dual Ethernet ports and a 4G global modem open up communication possibilities like OPC UA and cloud connectivity, creating a seamless data flow between machines and IT infrastructure. Ideal as a smart IIoT gateway, the X20 Edge offers machine builders simplified integration of digital services, while end users gain access to advanced analytics – all in a compact, industrial-grade device.
Specifications
Short description
| Interfaces | 1x USB 3.0, 2x Gigabit Ethernet |
| System module | Edge controller |
General information
| Diagnostics – Module status | Yes, using LED status indicator |
| Diagnostics – Network status | Yes, using LED status indicator |
| Certifications – CE | In preparation |
| B&R ID code | 0x35A6 |
| Cooling | Fanless |
| Status indicators | Module status, network status |
| Power consumption | 9.6 W |
Input power supply
| Input voltage | 24 VDC -20% / +25% SELV/PELV; (nominal voltage: 24 VDC) |
| Input current | Max. 0.4 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
Controller
| Processor – Data code | 32 kB |
| Processor – Program code | 32 kB |
| Processor – Type | Cortex-A53 |
| Processor – Clock frequency | 1.6 GHz |
| Processor – Total number of cores | 4 |
| Processor – Architecture | 64-bit |
| Processor – L2 cache | 512 kB |
| Standard memory – RAM | 4 GB LPDDR4 SDRAM |
| Application memory – Type | microSD |
| Application memory – Data retention | 10 years (when new) to 1 year (end of service life) |
| Application memory – Capacity | 64 GB |
| Application memory – Lifetime monitoring | Yes |
| Application memory – MTBF | >3,000,000 hours (at 25°C) |
| Application memory – Writable data amount | 166 TB |
| Application memory – Sequential reading | 100 MB/s |
| Application memory – Sequential writing | 45 MB/s |
| Software | B&R-specific Debian image |
| Real-time clock | Nonvolatile, ±20 ppm at 25°C |
| Floating point unit (FPU) | Yes |
Interfaces
| ETH0 and ETH1 – Physical layer | 100BASE-TX/1000BASE-T |
| ETH0 and ETH1 – Half-duplex | Yes |
| ETH0 and ETH1 – Full-duplex | Yes |
| ETH0 and ETH1 – Autonegotiation | Yes |
| ETH0 and ETH1 – Auto-MDI/MDIX | Yes |
| ETH0 and ETH1 – Type | 2x Ethernet |
| ETH0 and ETH1 – Variant | 2x shielded RJ45 |
| ETH0 and ETH1 – Line length | Max. 100 m between 2 stations (segment length) |
| ETH0 and ETH1 – Transfer rate | 100 Mbit/s and 1 Gbit/s |
| USB – Type | USB 2.0 / 3.0 |
| USB – Variant | Type A |
| Modem – Type | Quectel EG21-GL LTE Cat 1 |
| Modem – Variant | RP-SMA female |
Electrical properties
| Electrical isolation | Ethernet isolated from each other and from power supply; USB for power supply not isolated |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.6°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | Not permitted |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 70°C |
| Temperature – Transport | -40 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 27.5 mm |
| Dimensions – Height | 124 mm |
| Dimensions – Depth | 92 mm |
| Weight | 165 g |
Accessories
Optional accessories (1)
| 0TB1102.2100-01 | Terminal blocks — Accessory terminal block, 2-pin, push-in terminal block 1.5 mm² |
