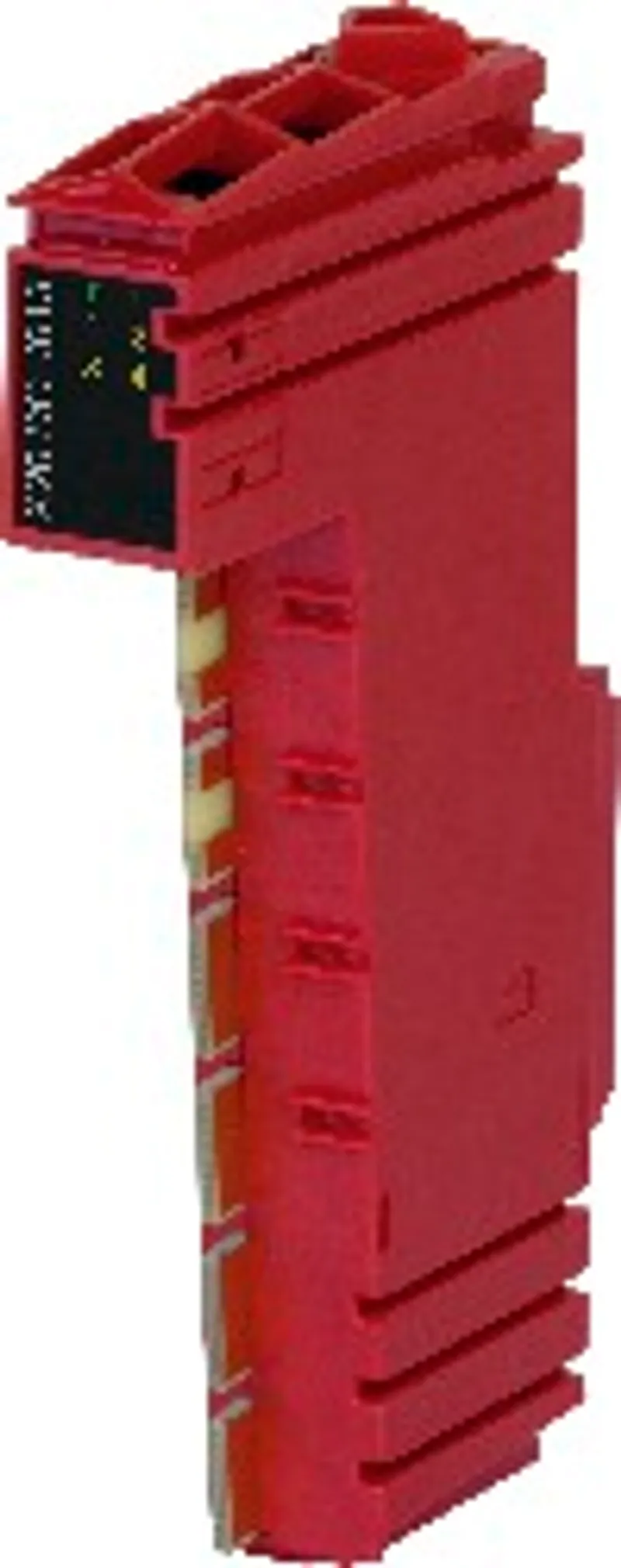

Name: B&R X20DO4613 – I/O module, 4 digital outputs for controlling external…
Brand: B&R
SKU: X20DO4613

MPN: X20DO4613 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital outputs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20DO4613 be shipped?

X20DO4613 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20DO4613 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20DO4613 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO4613, subject to availability and destination.

• 4 digital outputs

• Controls external power triacs or non-parallel thyristors

• Outputs with 48 - 240 VAC

• 50 Hz or 60 Hz

• Outputs electrically isolated from one another

• Phase-angle control

• Zero-crossing detection

• Negative half-waves can be switched off

• 2-wire connections

• 240 V coding

• OSP mode

• Frequency mode

The module is a digital output module that is equipped with 4 opto-triac outputs using phase-angle control. L and N are fed to the module for zero-crossing detection.

The 4 outputs are electrically isolated from one another and are used for controlling external power triacs or nonparallel thyristors.

Accessories

Required accessories (order separately)

X20BM12	Bus modules — Bus module for 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module and terminal…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

4 digital outputs for controlling external power triacs or non-parallel thyristors

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator
Power consumption – Bus	0.8 W
Power consumption – Internal I/O	-
Power consumption – External I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xAD05
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x Residual voltage (on-state voltage) x Nominal output current. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	+1 W

Digital outputs

Nominal current at 25°C – Nominal output current	80 mA
Nominal current at 25°C – Total nominal current	320 mA
Current over entire temperature range – Output current	50 mA
Current over entire temperature range – Summation current	200 mA
Phase-angle control – Area	5 to 95%
Phase-angle control – Resolution	1%
Phase-angle control – Accuracy (60 to 240 VAC)	<100 μs
Insulation voltages – Channel - Bus	Tested at 2300 VAC
Insulation voltages – Channel - Channel	Tested at 2300 VAC
Protective circuit – External	Generally fuse
Protective circuit – Internal	Snubber circuit (RC element) and varistor
Variant	Opto-triac
Circuit	Normally open contact
Nominal voltage	48 to 240 VAC
Max. voltage	264 VAC
Rated frequency	47 to 63 Hz
Connection type	2-wire connections
Zero-crossing detection	Yes
Holding current	Max. 3.5 mA
Leakage current	Max. 1.5 mA (per channel)
Residual voltage (on-state voltage)	Max. 3 V
Voltage monitoring L - N	No
Recommended wiring	Twisted pair cabling to the terminal pairs
Line length	Max. 10 m
Overvoltage protection between L and N	Yes

Electrical properties

Electrical isolation

Channel isolated from channel, bus and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately.; Order 1x bus module X20BM12 separately.
Pitch	12.5 +0.2 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20DO4613	PDF · 2 MB · 2.50 (10/01/2024) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN
