Home / B&R / Digital outputs / B&R X20DO2623 – I/O module, 2 digital SSR outputs 100 to 240 VAC for 3-wire…

Available on request

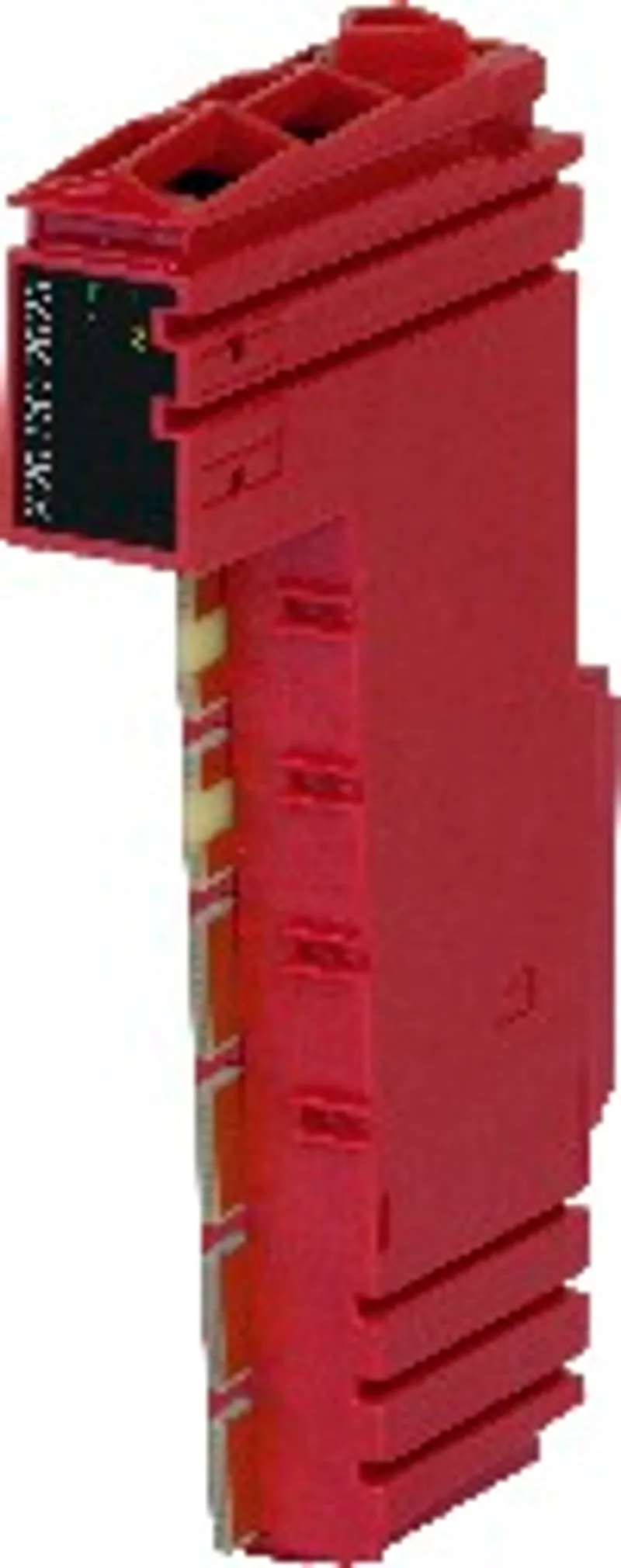

B&R X20DO2623 – I/O module, 2 digital SSR outputs 100 to 240 VAC for 3-wire…

Name: B&R X20DO2623 – I/O module, 2 digital SSR outputs 100 to 240 VAC for 3-wire…
Brand: B&R
SKU: X20DO2623

MPN: X20DO2623 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital outputs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20DO2623 be shipped?

X20DO2623 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20DO2623 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20DO2623 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO2623, subject to availability and destination.

• 2 digital outputs

• Outputs with integrated snubber circuit

• Outputs with 100 to 240 VAC

• L switching

• 50 Hz or 60 Hz

• 3-wire connections

• Integrated full-wave control

• 240 V coding

The module is a digital output module that is equipped with 2 SSR outputs with zero cross-over switches and uses 3-line connections. The module is also equipped with integrated full-wave control. The supply (L and N) is fed directly to the module.

Accessories

Required accessories (order separately)

X20BM12	Bus modules — Bus module for 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module and terminal…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

2 digital SSR outputs 100 to 240 VAC for 3-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator
Power consumption – Bus	0.35 W
Power consumption – Internal I/O	-
Power consumption – External I/O	0.38 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x267B
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x Residual voltage (on-state voltage) x Nominal output current. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	+3

Digital outputs

Switching delay – 0 → 1	≤11 ms
Switching delay – 1 → 0	≤11 ms
Switching delay – 0 → 1	≤9.3 ms
Switching delay – 1 → 0	≤9.3 ms
Output voltage – Minimum	80 VAC
Protective circuit – External	Generally varistor or fuse
Protective circuit – Internal	Snubber circuit (RC element)
Variant	SSR
Circuit	L-switching
Nominal voltage	100 to 240 VAC
Max. voltage	264 VAC
Rated frequency	47 to 63 Hz
Nominal output current	1 A
Total nominal current	1 A
Surge current	40 A (20 ms), 10 A (1 s)
Connection type	3-wire connections
Zero-crossing switches	Yes
Leakage current	Max. 10 mA at 240 V
Residual voltage (on-state voltage)	1.5 V
Insulation voltage between channel and bus	Tested at 2500 VAC
Voltage monitoring L - N	No
Overvoltage protection between L and N	Yes

Electrical properties

Electrical isolation

Channel isolated from bus and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately.; Order 1x bus module X20BM12 separately.
Pitch	12.5 +0.2 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20DO2623	PDF · 2 MB · 3.30 (10/01/2024) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20 Electronic module	ZIP · 10 KB · 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice	ZIP · 872 KB · 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module	PDF · 3 KB · 1.0 (10/17/2005)

Certificates (8)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice	PDF · 92 KB · 1.00 (09/30/2025)
EU Declaration ATEX X20	PDF · 218 KB · 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20	PDF · 169 KB · 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
UK Declaration PLC X20	PDF · 151 KB · 2024-01 (01/18/2024)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
