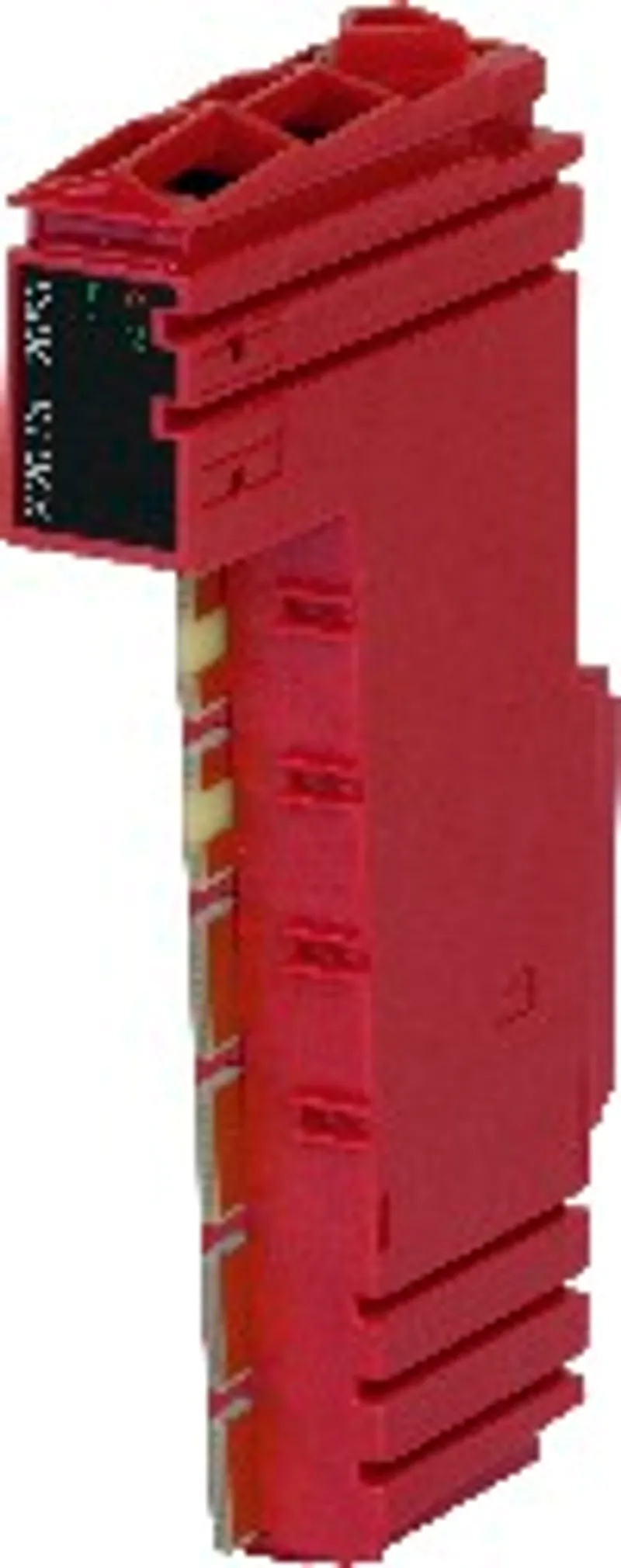

• 2 digital inputs

• 100 to 240 VAC inputs

• 50 Hz or 60 Hz

• 3-wire connections

• 240 V coded

The module is equipped with 2 inputs for 3-wire connections. It is designed for an input voltage of 100 to 240 VAC.

Accessories

Required accessories (order separately)

X20BM12	Bus modules — Bus module for 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module and terminal…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

2 digital inputs 100 to 240 VAC for 3-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – External I/O power supply	Yes, using software (typ. threshold 85 VAC)
Power consumption – Bus	0.14 W
Power consumption – Internal I/O	-
Power consumption – External I/O	0.55 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x2544
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Digital inputs

Input filter – 1 → 0	≤30 ms
Input filter – 0 → 1	≤40 ms
Input filter – Software	Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Switching threshold – Low	<40 VAC
Switching threshold – High	>79 VAC
Input voltage – Maximum	264 VAC
Input current – 100 VAC / 60 Hz	4 mA (Rev. ≥ E0), 5 mA (Rev. < E0)
Input current – 240 VAC / 50 Hz	8.5 mA (Rev. ≥ E0), 11 mA (Rev. < E0)
Nominal voltage	100 to 240 VAC
Connection type	3-wire connections
Rated frequency	47 to 63 Hz
Insulation voltage between channel and bus	1 minute 2500 VAC

Sensor power supply

Voltage	Corresponds to the module power supply
Summation current	2 A eff
Short-circuit proof	No

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately. ; Order 1x bus module X20BM12 separately.
Pitch	12.5 +0.2 mm
