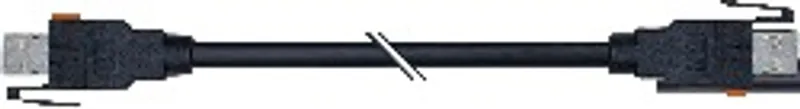

B&R X20CA0X68.0003
X2X Link connection cable, 0.3 m
- MPN
- X20CA0X68.0003
- Category
- X2X Link cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20CA0X68.0003?
X2X Link connection cable, 0.3 m
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Durability | Flame-retardant per VW-1 and FT1 |
| Nominal voltage | 30 V |
Cable construction
| Signal line – Shield | Pair shielding with aluminum foil |
| Signal line – Stranding | Twisted pair wires |
| Outer jacket – Material | PVC |
| Outer jacket – Color | Black |
Electrical properties
| Conductor resistance | 24 AWG <93.2 Ω/km at 20°C, 22 AWG <55 Ω/km at 20°C |
Ambient conditions
| Temperature – Fixed installation | -25 to 80°C |
| Temperature – Flexible installation | -20 to 80°C |
Mechanical properties
| Dimensions – Length | 0.3 m |
| Dimensions – Diameter | 7 mm ±0.19 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
X20CA0X68.0003: frequently asked questions
When can X20CA0X68.0003 be shipped?
X20CA0X68.0003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20CA0X68.0003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20CA0X68.0003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CA0X68.0003, subject to availability and destination.
