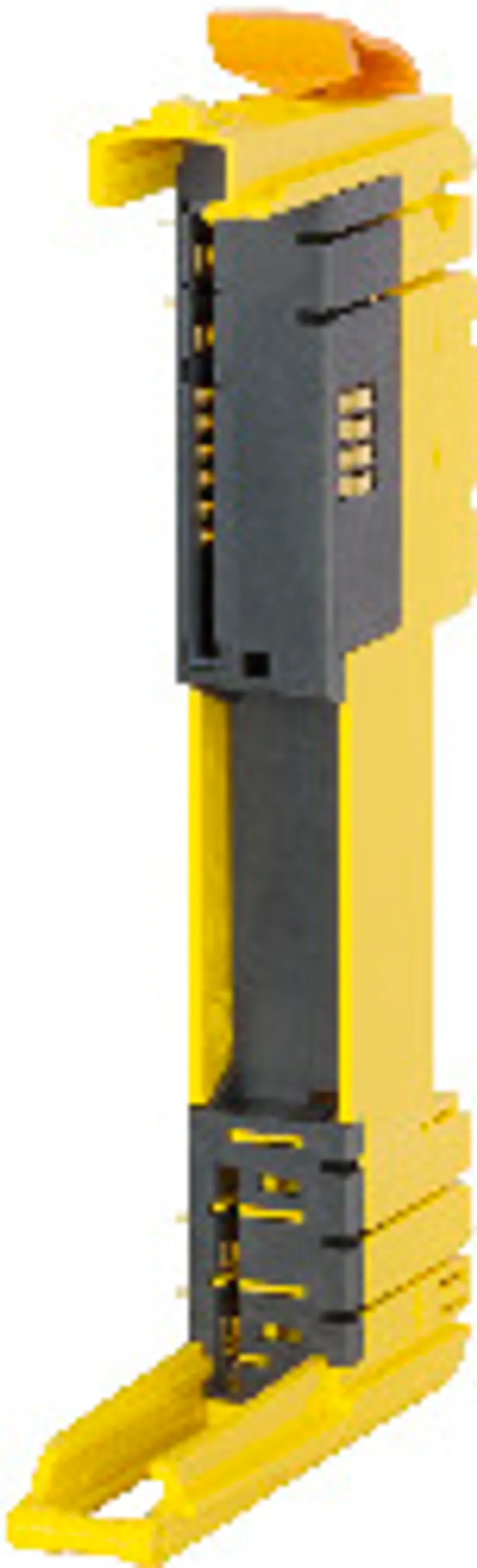

B&R X20BM13 – Bus module, bus module, for X20 SafeIO modules

Name: B&R X20BM13 – Bus module, bus module, for X20 SafeIO modules
Brand: B&R
SKU: X20BM13

MPN: X20BM13 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Bus modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20BM13 be shipped?

X20BM13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20BM13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20BM13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BM13, subject to availability and destination.

• Bus module for single-width SafeIO modules

• The internal I/O power supply is continuous.

The bus module is the base for all single-width SafeIO modules. The internal I/O power supply is continuous.

Specifications

Short description

Bus module

Bus module, for X20 SafeIO modules, internal I/O power supply connected through

General information

Power consumption – Bus	0.13 W
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Additional power dissipation caused by actuators (resistive) [W]	-

I/O power supply

Nominal voltage	24 VDC
Permissible contact load	10 A

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch

12.5 +0.2 mm
