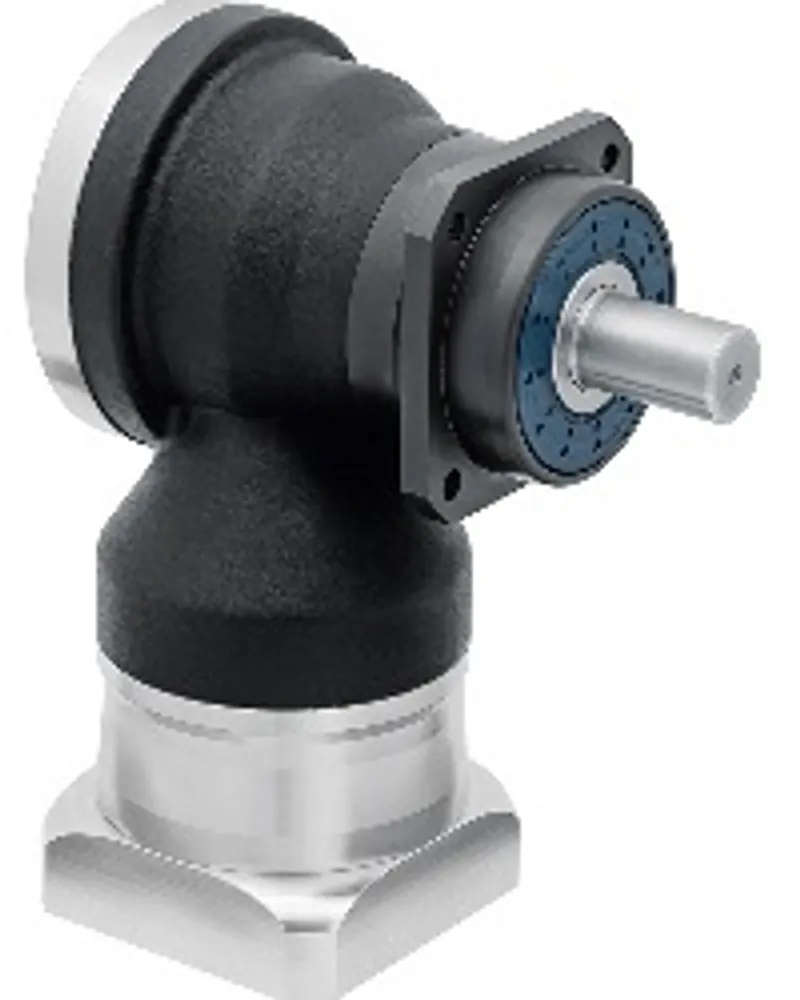

B&R 8GA60-090hh005klmm – Angular PG, i = 005, 1-stage, IP65

Name: B&R 8GA60-090hh005klmm – Angular PG, i = 005, 1-stage, IP65
Brand: B&R
SKU: 8GA60-090hh005klmm

MPN: 8GA60-090hh005klmm · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Angular planetary gearboxes 8GA
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8GA60-090hh005klmm be shipped?

8GA60-090hh005klmm is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GA60-090hh005klmm in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GA60-090hh005klmm and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GA60-090hh005klmm, subject to availability and destination.

Angular PG, i = 005, 1-stage, IP65

Specifications

Gearbox

Number of gear stages	1
Gear ratio i	5
Nominal output torque T 2N [Nm]	75
Max. output torque T 2max [Nm]	120
Emergency switch-off torque T 2stop [Nm]	200
Idle torque [Nm] at 20°C and 3000 rpm	2.1
Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	1900
Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	1550
Max. drive speed n 1max [rpm]	14000
Max. backlash J t [arcmin]	5
Reduced backlash J t [arcmin] less than	0
Torsional rigidity C t21 [Nm/arcmin]	6.6
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Max. radial force Fr max [N] for 30,000 h	5200
Max. radial force Fr max [N] for 20,000 h	5200
Max. axial force Fa max [N] for 30,000 h	5200
Max. axial force Fa max [N] for 20,000 h	5900
Operating noise L PA [dB(A)]	67
Efficiency at full load ŋ [%]	96
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
Weight m [kg]	5
Moment of inertia J 1 [kgcm 2]	1.168
