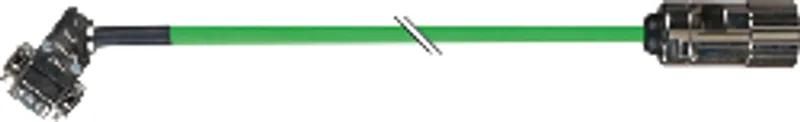

B&R 8CR001.12-1
MPN: 8CR001.12-1 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Resolver cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.07 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8CR001.12-1 be shipped?
8CR001.12-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8CR001.12-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8CR001.12-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CR001.12-1, subject to availability and destination.
• UL/CSA certified
• Can be used in cable drag chains
• Optimally suited for use with ACOPOS servo drives and B&R servo motors
Resolver cable, length 1 m, 3x 2x 24 AWG (19x 0.127), 12-pin female Intercontec resolver connector, 9-pin male DSUB servo connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Certification | UL AWM style 20671, 90°C, 30 V, E63216 and CSA AWM, 90°C, 30 V, I/II A/B FT1 LL46064 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
Cable construction
| Signal line – Quantity | 6 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White/Brown, green/yellow, gray/pink |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 24 AWG / 19 AWG |
| Signal line – Shield | No |
| Signal line – Stranding | White with brown, green with yellow, gray with pink |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green, similar to RAL 6018 flat |
| Outer jacket – Labeling | B&R 3x2x24 AWG FLEX UL AWM STYLE 20671 90°C 30 V E63216 CSA AWM 90°C 30 V I/II A/B FT1 LL46064 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
Connector
| Type | 12-pin female Intercontec resolver connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector; Mating cycles: <200; Contacts: 9; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Test voltage – Wire - Wire | 1.5 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Signal line | ≤86 Ω/km |
| Operating voltage | ≤30 V eff |
| Insulation resistance | >200 MΩ*km |
Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +90°C |
Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Dimensions – Length | 1 m |
| Dimensions – Diameter | 6.5 mm ±0.2 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥50 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature of 20°C and bend radius of 65 mm."> | >3,000,000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.07 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8CR001.12-1 | PDF · 158 KB · 1.2 (03/14/2019) - EN |
Certificates (3)
| E225616 UL Certificate of Compliance ACOPOS | PDF · 242 KB · 1.1 (09/11/2019) |
| EU Declaration Servos ACOPOS | PDF · 271 KB · 2024-02 (10/29/2025) |
| UK Declaration Servos ACOPOS | PDF · 109 KB · 2022-09 (09/08/2022) |
