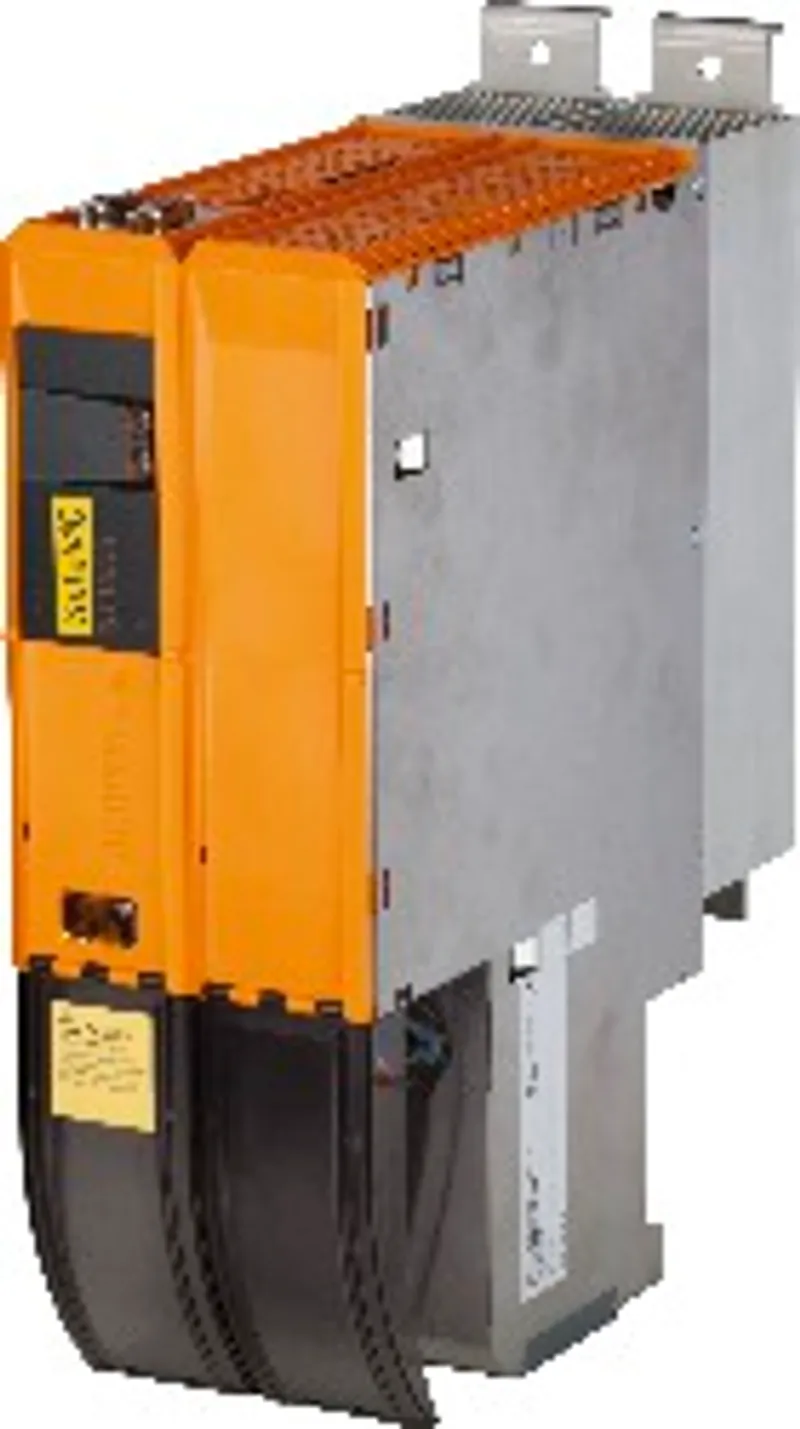

B&R 8BVI0330HWSS.000-1

Name: B&R 8BVI0330HWSS.000-1
Brand: B&R
SKU: 8BVI0330HWSS.000-1

MPN: 8BVI0330HWSS.000-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Wall mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8BVI0330HWSS.000-1 be shipped?

8BVI0330HWSS.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0330HWSS.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0330HWSS.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0330HWSS.000-1, subject to availability and destination.

Clearly structured, straightforward implementation via network-based safety technologyModular expandability through virtual wiringImmediate triggering of safety function due to short cycle timesEasy implementation with transparent control and status information, even in the standard applicationCompact design ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 33 A, AS, wall mounting

Specifications

B&R ID code	0xADC4
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
Functional safety	Yes (openSAFETY)
UL	cULus E225616 Power conversion equipment
KC	Yes
Nominal	5 to 40°C
Continuous power consumption	24.4 kW
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	25 m
DC bus capacitance	990 µF
Variant	ACOPOSmulti backplane
Input voltage	25 VDC ±1.6%
Input capacitance	32.9 µF
Max. power consumption	31 W + PSMC1 + PSLOT2 + P24 V Out + PHoldingBrake
Quantity	1
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset
Continuous power per motor connection	24 kW
Continuous current per motor connection	33 Aeff
Starting at 500 m above sea level	3.3 Aeff per 1000 m
Peak current	83 Aeff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
U, V, W, PE	Connector
Shield connection	Yes
With wire end sleeve	0.5 to 16 mm²
UL/C-UL-US	20 to 6
CSA	20 to 6
Terminal cable cross section dimension of shield connection	23 to 35 mm
Output voltage	Typ. 12.5 V
Continuous current per connection	4.2 A
Max. internal resistance	0.15 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC -2% / -4%
Type	EnDat 2.2
Connections	9-pin female DSUB connector
Status indicators	UP/DN LEDs
Encoder - ACOPOSmulti	No
Encoder monitoring	Yes
Max. encoder cable length	100 m Depends on the cross section of the power supply wires in the encoder cable
Load capacity	350 mA
Short-circuit proof	Yes
Overload-proof	Yes
Signal transmission	RS485
Data transfer rate	6.25 Mbit/s
Max. power consumption per encoder interface	PSMC[W] = 19 V * IEncoder[A]
Circuit	Sink
Input - Inverter module	Yes
Input - Input	Yes
Maximum	55°C
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V
Resistance range	500 Ω to 5 kΩ
Discharge capacitance	0.22 µF
Power dissipation relative to continuous apparent power	IE2 (10,25) 1.2% IE2 (50,25) 1.2% IE2 (10,50) 1.5% IE2 (50,50) 1.5% IE2 (90,50) 1.5% IE2 (10,100) 2.2% IE2 (50,100) 2.2% IE2 (90,100) 2.2%
Nominal losses in standby mode	11 W
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	Max. 95% at 40°C
Operation	5 to 85%
Width	106.5 mm
Height	317 mm
Wall mounting	263 mm
Weight	Approx. 5.4 kg
Module width	2
