B&R 8BCF0060.1221B-0 – EnDat 2.2 cable, length 60 m, 1x 4x 0.14 mm² + 4x 0.35 mm²
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.2 cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.56 kg |
Shipping & availability
When can 8BCF0060.1221B-0 be shipped?
8BCF0060.1221B-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCF0060.1221B-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCF0060.1221B-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCF0060.1221B-0, subject to availability and destination.

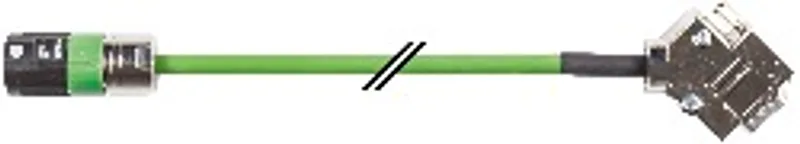

EnDat 2.2 cable, length 60 m, 1x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Cable cross section | 1x 4x 0.14 mm² + 4x 0.34 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 test type B |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 |
Cable construction
| Supply lines – Quantity | 4 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | White/Green, brown/green, blue, white |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.34 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | Yellow, gray, pink, violet |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | All 4 wires together |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Black |
| Outer jacket – Labeling | Heidenhain UR AWM style 20963 80°C 30 V E63216 |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding |
Connector
| Type | 12-pin female series 615 signal connector |
| Mating cycles | >50 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector; Mating cycles: >50; Contacts: 9; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 0.5 kV |
| Test voltage – Wire - Shield | 0.5 kV |
| Conductor resistance – Supply lines | ≤0.06 Ω |
| Conductor resistance – Signal line | ≤0.13 Ω |
| Insulation resistance | >200 GΩ |
Ambient conditions
| Temperature – Moving | -10 to 80°C |
| Temperature – Static | -40 to 80°C |
Mechanical properties
| Dimensions – Length | 60 m |
| Dimensions – Diameter | 6 mm ±0.25 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥75 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3000000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 4.56 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Certificates (3)
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration ACOPOSmicro | PDF · 109 KB · 2022-09 (09/12/2022) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
