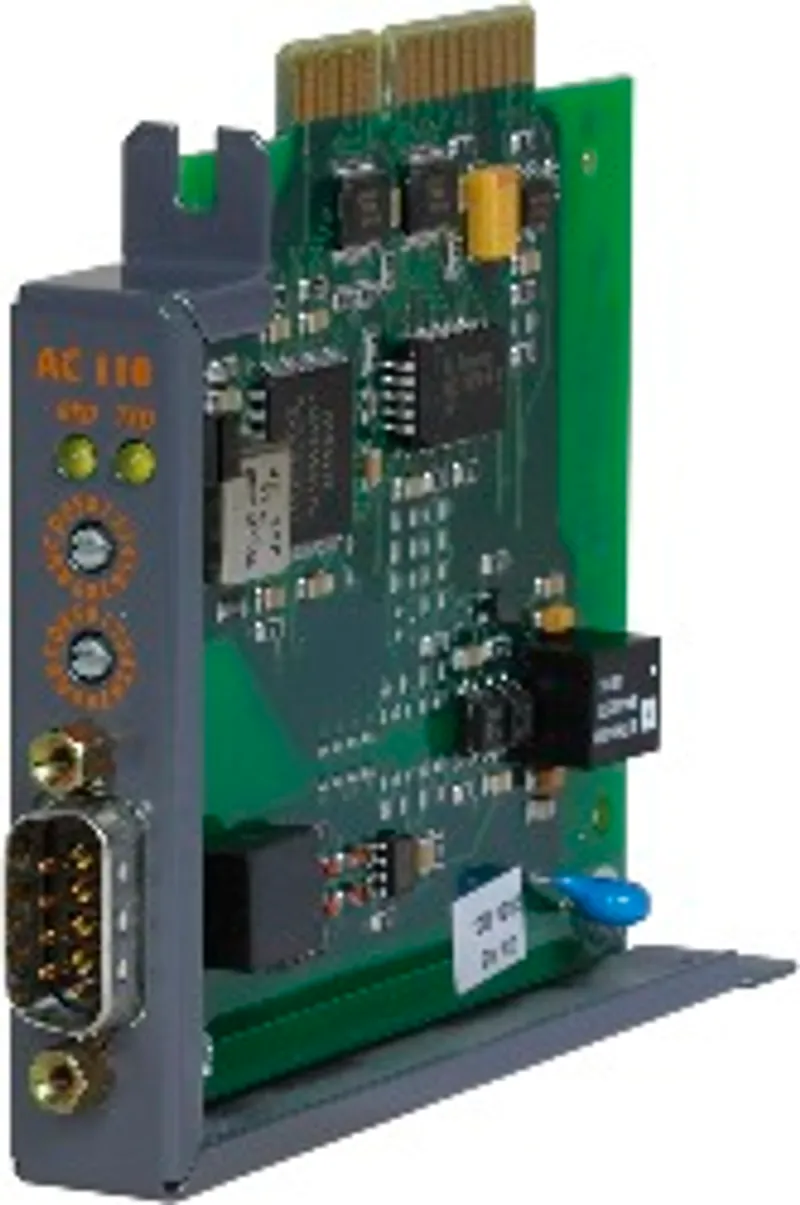

B&R 8AC110.60-2 – CAN interface for installation in ACOPOS servo drives
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Plug-in modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8AC110.60-2 be shipped?
8AC110.60-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8AC110.60-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8AC110.60-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC110.60-2, subject to availability and destination.
• CAN interface for installation in ACOPOS servo drives
• For communication and configuration of ACOPOS servo drives in standard applications
• Node number configurable using switch
ACOPOS plug-in module, CAN interface
Accessories
Optional accessories (3)
| 7AC911.9 | Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The… |
| 0AC913.92 | Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB) |
| 0AC912.9 | Infrastructure components — Bus adapter, CAN, 1 CAN interface |
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOS plug-in module |
| B&R ID code | 0x1198 |
| Slot | Slot 1 |
| Power consumption | Max. 0.7 W |
Interfaces
| CAN – Quantity | 1 |
| CAN – Module-side connection | 9-pin male DSUB connector |
| CAN – Status indicators | RXD/TXD LEDs |
| CAN – Baud rate | 500 kbit/s |
| CAN – Electrical isolation | Yes |
| CAN – Max. distance | 60 m |
| CAN – Network-capable | Yes |
| CAN – Bus terminating resistor | Externally wired |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8AC110.60-2 | PDF · 1 MB · 1.4 (06/21/2016) - EN |
| ACOPOS User´s Manual | PDF · 54 MB · 2.10 (05/23/2022) - EN |
CAD & dimension drawings
| 3D file STEP 8AC110.60-2 | ZIP · 183 KB · 1.0 (03/04/2013) |
Certificates (1)
| ACOPOS KC certificates | ZIP · 601 KB · 1.00 (04/03/2019) |
