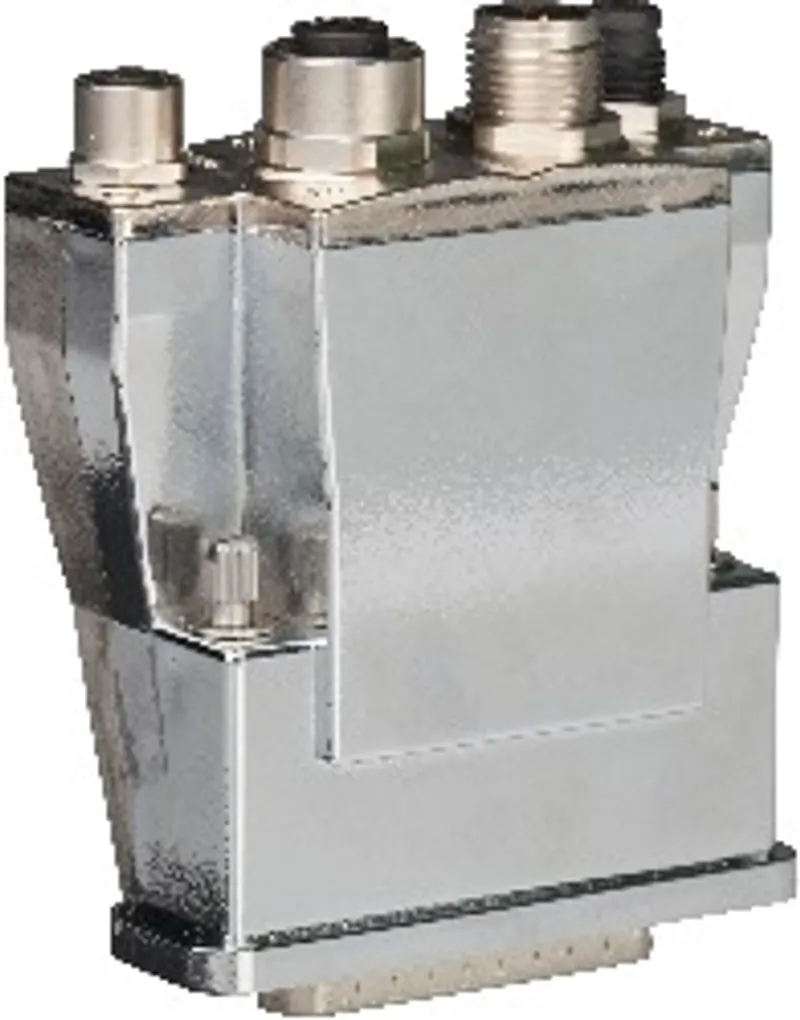

B&R 7XV124.50-62 – Remote valve terminal connection, 24 digital outputs, 0.1 A

MPN: 7XV124.50-62 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XV124 valve connections
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	131 kg

Shipping & availability

When can 7XV124.50-62 be shipped?

7XV124.50-62 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7XV124.50-62 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7XV124.50-62 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7XV124.50-62, subject to availability and destination.

Remote valve terminal connection, 24 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pin 13, X2X Link, electrically isolated, IP67 protection

Specifications

General information

Diagnostics – Power supply	24 VDC OUT: Yes, using LED and software; 24 VDC X2X: Yes, using software
Diagnostics – X2X Link	Yes, using software
Diagnostics – Overload	Yes, using LED and software (outputs)
Power consumption – Internal I/O	Max. 1.5 W (without load)
Power consumption – X2X Link power supply	Max. 0.75 W
Electrical isolation – Digital outputs - 24 VDC X2X, OUT power supply	No
Electrical isolation – X2X Link - 24 VDC X2X, OUT power supply	Yes
Electrical isolation – X2X Link - Digital outputs	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0x25B6
Status LED	Yes (color / blink code); 24 VDC OUT power supply (DCOK LED) = Yes (color / blink code)
Status indicators	Operating status and power supply
Remote valve terminal connection for 25-pin DSUB multi-pin connection	24 valves

Circuit

Bus connection	M12
GND pin	13
Power supply	M8

Interfaces

User interface – Variant	M12
User interface – Type	X2X Link slave

Digital outputs

Switching delay – 0 → 1	Typ. 100 μs / max. 150 μs
Switching delay – 1 → 0	Typ. 125 μs / max. 200 μs
Switching voltage	24 VDC ±25%
Total nominal current	2.4 A
Output circuit	Source
Output protection	Protected against short circuit, overload and overtemperature
Type	High-side driver (source)
Max. output current	0.1 A
Max. switching frequency	100 Hz

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order male/female M12/M8 connectors separately
Installation	25-pin DSUB, screw mounting, 4-40 UNC
Weight	131 g
Module dimensions including mounting plates	67 x 66 x 30 mm (H x W x D)
