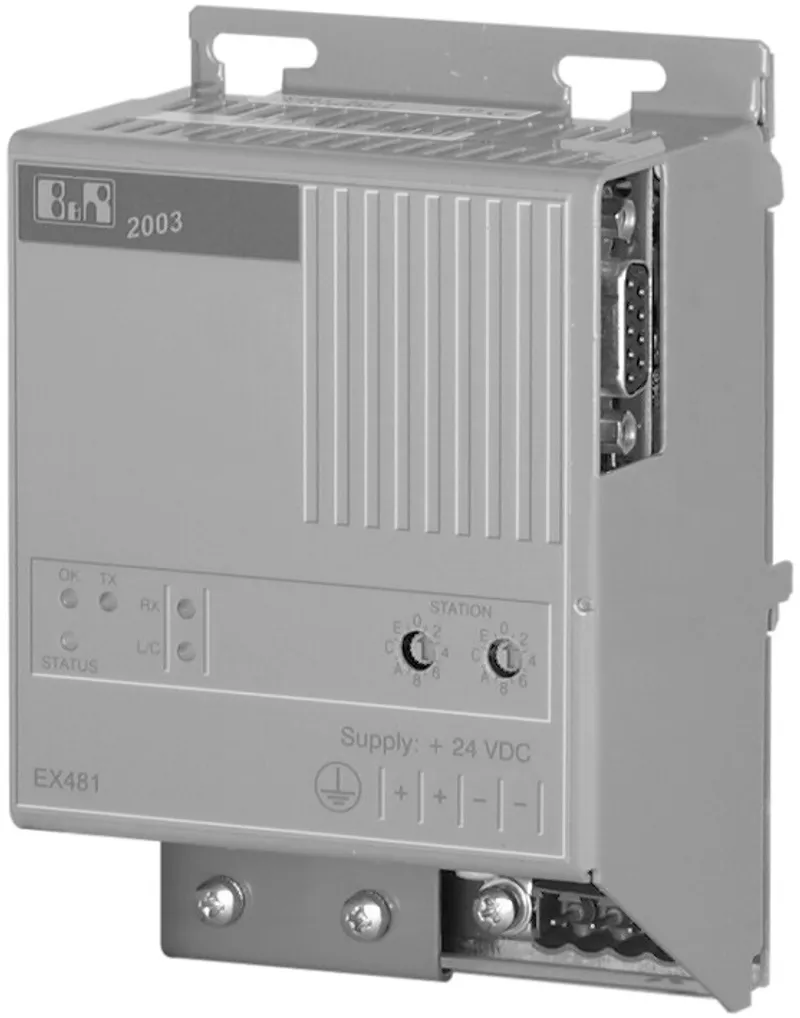

B&R 7EX481.50-1 – 2003 POWERLINK bus controller, 1 POWERLINK interface
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7EX481.50-1 be shipped?
7EX481.50-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7EX481.50-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7EX481.50-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7EX481.50-1, subject to availability and destination.
2003 POWERLINK bus controller, 1 POWERLINK interface, 24 VDC, electrically isolated, order 1x terminal block TB704 separately!
Specifications
General Information
| C-UL-US Listed | In preparation |
| Module Type | B&R 2003 Controller |
| Diagnosis LEDs | Yes |
| I/O Bus Interface | 9 pin DSUB socket |
| Station Number Dial | For setting the Powerlink station number |
| Design | Switching power supply with reverse polarity diode |
| Input Voltage – Minimum | 18 VDC |
| Input Voltage – Nominal | 24 VDC |
| Input Voltage – Maximum | 30 VDC |
| Power Consumption | Max. 20 W |
| Output Power for I/O Modules and Screw- in Modules | 13.4 W |
| Standard (Compliance) | ANSI/IEEE 802.3 |
| Data Rate | 100 Mbps |
| Signal | 100 Base-T |
| Port Design | Shielded RJ45 port |
| Line Length Between Two Stations | Max. 100 m B&R 2003 Powerlink |
Mechanical Characteristics
| Dimensions | B&R 2003 single width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7EX481.50-1 | PDF · 934 KB · 1.0 (06/08/2004) - EN |
