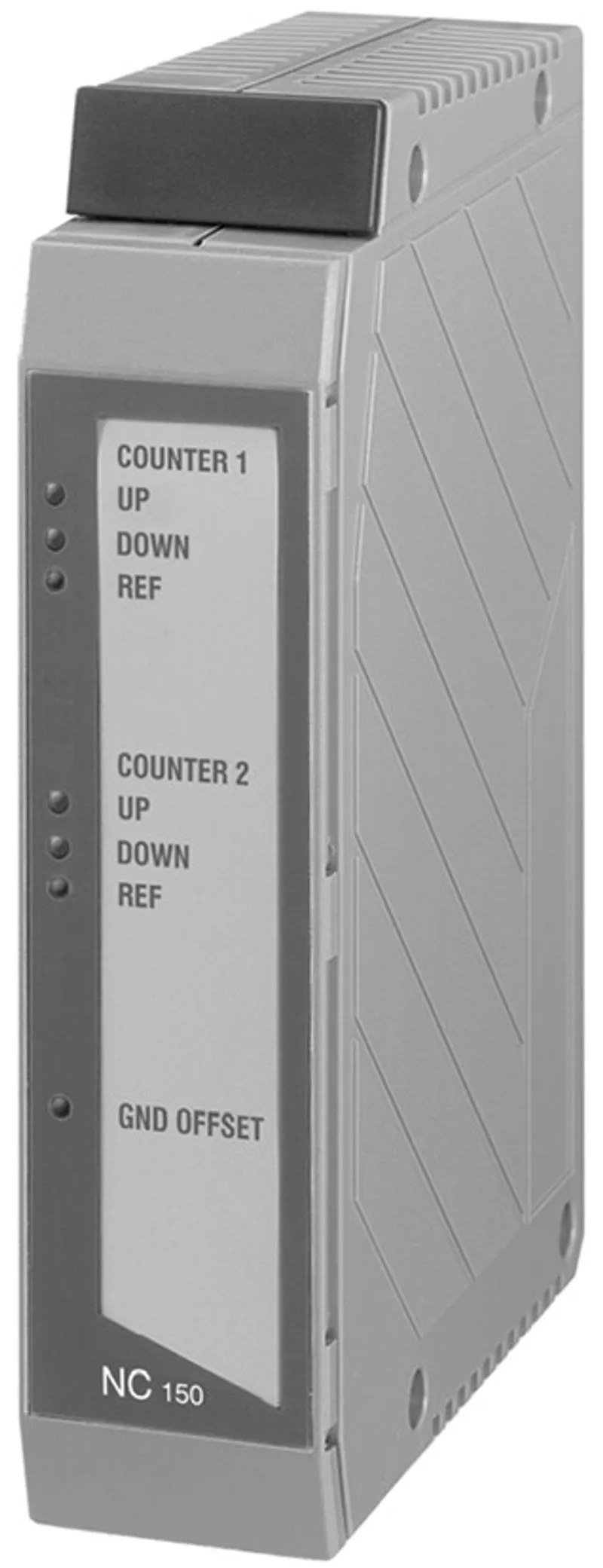

B&R 3NC150.6 – I/O module, 2 counter channels, 2 analog outputs
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3NC150.6 be shipped?
3NC150.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3NC150.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3NC150.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3NC150.6, subject to availability and destination.
2005 counter module, 2 inputs for incremental encoder, 32-bit, input frequency 100 kHz, encoder power supply 5 to 30 VDC, 2 analog outputs ±10 V, 12-bit, 8-pin terminal block included in delivery!
Specifications
Short description
| I/O module | 2 counter channels, 2 analog outputs |
General information
| Diagnostics – Compensation current | Yes, using LED status indicator and software |
| Diagnostics – Homing | Yes, using LED status indicator and software |
| Power consumption – 24 VDC | 3.5 W |
| Power consumption – 5 VDC | 1.5 W |
| Power consumption – Total | 5.0 W |
| Electrical isolation – Output - Output | No |
| Electrical isolation – Output - Encoder | Yes |
| Electrical isolation – Output - PLC | Yes |
| Electrical isolation – Encoder - Encoder | No |
| Electrical isolation – Encoder - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Counter up/down, referencing, equipotential bonding current between analog outputs |
Counter channels
| Execution | Two 9-pin female DSUB connectors |
| Evaluation | 1x, 2x, 4x |
| Operating modes | Incremental or up/down counter configurable using software |
| Input filter | 2 times configurable using software |
| Input frequency | Max. 100 kHz |
| Encoder inputs | Symmetrical and asymmetrical |
| Encoder power supply | 5 to 30 V external |
| Counter size | 32-bit |
Analog outputs
| Output | ±10 V |
| Digital converter resolution | 12-bit |
| Conversion time | 35 µs for all outputs |
| Output protection | Short-circuit proof |
| Basic accuracy | ±0.5% at 20°C (note: Based on the measurement range.) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | 8-pole terminal block is included in delivery. |
