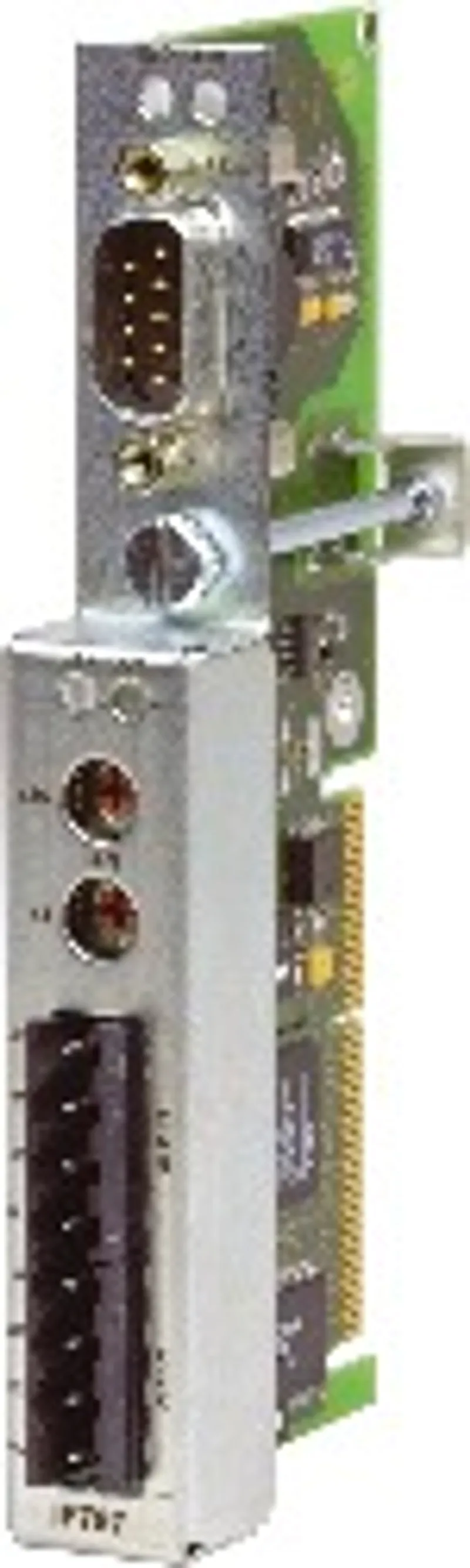

B&R 3IF797.9-1 – Communication module, 1x RS232, 1x CAN bus

MPN: 3IF797.9-1 · Brand: B&R

€815.14 excl. VAT & shipping

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 3 available
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3IF797.9-1 be shipped?

3IF797.9-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3IF797.9-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3IF797.9-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF797.9-1, subject to availability and destination.

• X2X connection

• CAN bus interface

• RS232 can be configured as an online interface

aPCI interface module, 1 X2X Link master interface, electrically isolated, 1 CAN bus interface, electrically isolated, network-capable, max. 500 kbit/s, object buffer in transmit and receive directions, 1 RS232 interface, order 2x 0TB704.9 terminal blocks separately!

Accessories

Required accessories (order separately)

0TB704.9

Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (1)

0AC913.93

Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)

Specifications

Short description

Communication module

1x RS232, 1x CAN bus, 1x X2X Link master

General information

Diagnostics – Data transfer	Yes, using LED status indicators
Power consumption – 3.3 VDC	0.68 W
Power consumption – 5 VDC	1.28 W
Power consumption – Total	1.96 W
Electrical isolation – IFx - IFx	Yes
Electrical isolation – PLC - IF1	No
Electrical isolation – PLC - IF2	Yes
Electrical isolation – PLC - IF3	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Status indicators	2 LEDs for transmitting/receiving data for IF1 ; 1 LED each for transmitting/receiving data for IF2 and IF3

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	9-pin male DSUB connector
Interface IF1 – Max. distance	900 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF2 – Variant	4-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Transfer rate	Max. 500 kbit/s
Interface IF3 – Fieldbus	X2X Link master
Interface IF3 – Variant	4-pin male multipoint connector
Interface IF3 – Distance between 2 stations	Max. 100 m
