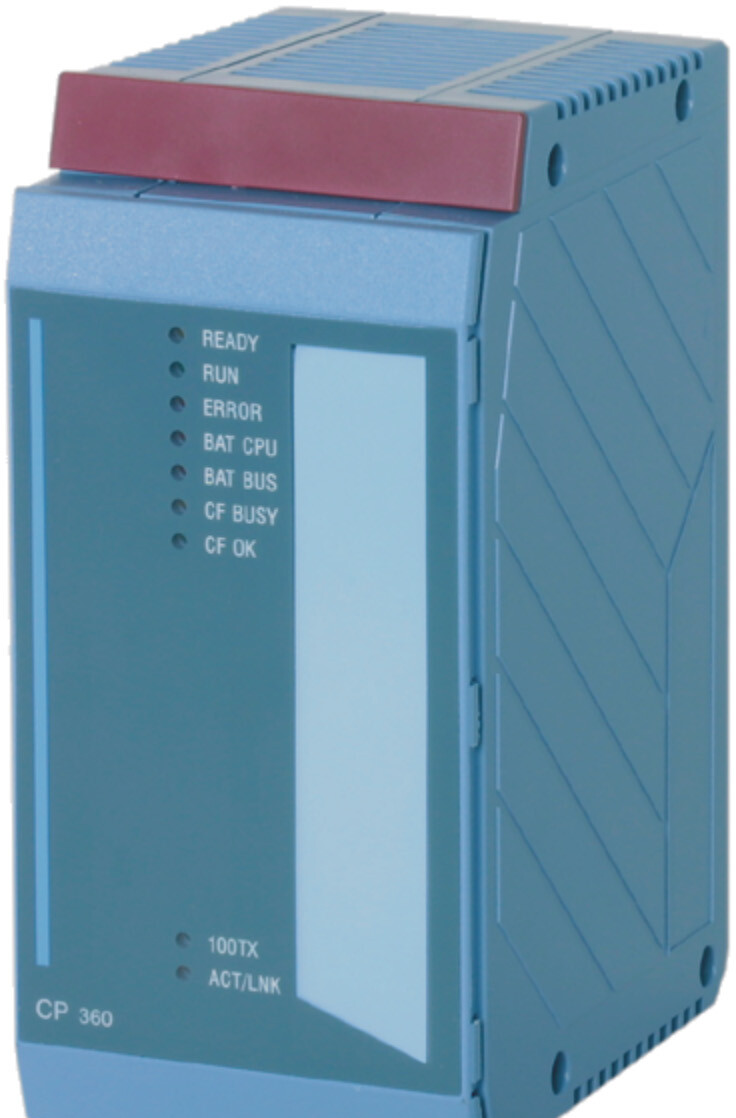

B&R 3CP360.60-2 – 2005 CPU, Pentium 266, 32 MB DRAM, 512 kB SRAM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3CP360.60-2 be shipped?
3CP360.60-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3CP360.60-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3CP360.60-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3CP360.60-2, subject to availability and destination.
2005 CPU, Pentium 266, 32 MB DRAM, 512 kB SRAM, removable application memory: CompactFlash, 1 slot for aPCI modules, 1 RS232 interface, 1 100BASE-T Ethernet interface, order application memory separately!
Specifications
General Information
| C-UL-US Listed | Yes |
| Module Type | B&R 2005 CPU |
| Slot – Main Rack | 3+4 |
| Slot – Expansion Rack | No |
| Power Consumption – 5V | Max. 9 W |
| Power Consumption – 24 V | Max. 2 W |
| Power Consumption – Total | Max. 11 W without memory cards and without interface modules |
| Instruction Cycle Time | 0.02 µs |
| Data and Program Code L1 Cache | 2 x 16 KByte |
| L2 Cache | 512 KByte |
| Standard Memory – RAM | 32 MByte DRAM |
| Standard Memory – User RAM | 496 KByte SRAM |
| Integrated I/O Processor | Processes I/O data points in the background |
| Data Buffering – Lithium Battery | At least 3 years |
| Data Buffering – Battery Monitoring | Yes |
| Peripherals – Connection | ATA / True IDE |
| Peripherals – Memory Size | 8 MByte to 320 MByte (as of 10/2001) |
| Real-time Clock | Nonvolatile |
| Resolution | 1s |
| Reset Button | Yes |
| Status Display | LEDs |
| Insert Slots | 1 (for aPCI interface modules IF7xx) |
Standard Communication Interfaces
| Application Interface IF1 | RS232 |
| Electrical Isolation | No |
| Design | 9 pin DSUB plug |
| Distance | Max. 15 m / 19200 Baud |
| Baud Rate | Max. 115.2 kBaud |
| Application Interface IF2 | ETHERNET |
| Electrical Isolation | Yes |
| Design | RJ45 |
| Distance | Max. 100 m |
| Baud Rate | 10/100 MBaud |
Mechanical Characteristics
| Dimensions | B&R 2005 double width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3CP360.60-2 | PDF · 961 KB · 1.0 (06/08/2004) - EN |
