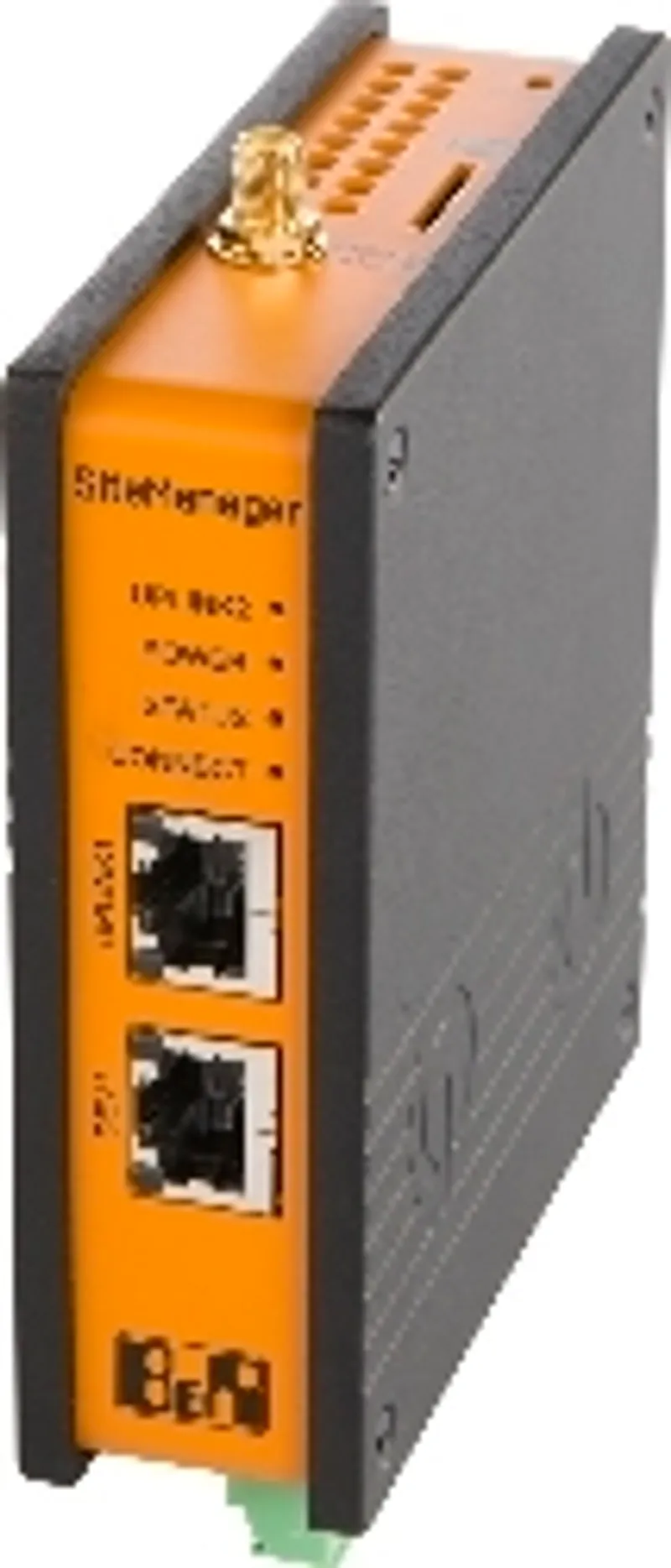

B&R 0RMSM1135.4G-CN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | SiteManager |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.5 kg |
Shipping & availability
When can 0RMSM1135.4G-CN be shipped?
0RMSM1135.4G-CN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0RMSM1135.4G-CN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0RMSM1135.4G-CN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0RMSM1135.4G-CN, subject to availability and destination.
Secure Remote Maintenance -SiteManager, LTE/4G/3G, for region CHINA 1x Ethernet 100BASE-T uplink port, 1x GPRS/3G uplink port, 5 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC
Specifications
Specifications
| B&R ID code | 0xEE28 |
| Reset button | Yes |
| Status LED | Supply voltage Status LinkManager connection Wireless connection |
| Power consumption | Max. 5 W |
| LTE band | B1 (FDD 2100) IMT B3 (1800 +) DCS B5 (850) CLR, US, Korea, etc. B7 (2600) IMT-E B8 (900) E-GSM B38 (TDD 2600) IMT-E B39 (TDD 1900 +) China B40 (TDD 2300) China B41 (TDD 2500) BRS/EBS |
| WCDMA/UMTS | B1 (FDD 2100) IMT B8 (900) E-GSM |
| GPRS/EDGE | B3 (1800) B8 (900) |
| Type | 4G/3G/GPRS |
| Clock frequency | 563 MHz |
| Variant | SMA female |
| Line length | Max. 100 m between 2 nodes (segment length) |
| Transfer rate | Downlink: 50 Mbit/s (10 MHz bandwidth) Uplink: 25 Mbit/s (10 MHz bandwidth) |
| Physical layer | 10BASE-T/100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Nominal voltage | 12 to 24 VDC |
| Degree of protection per EN 60529 | IP20 |
| Operation | 5 to 95% |
| Storage | 5 to 95% |
| Transport | 5 to 95% |
| Material | Aluminum |
| Width | 32 mm |
| Height | 107 mm |
| Depth | 97 mm |
| Weight | 0.5 kg |
