Home / Bosch Rexroth / DR1N Wheel Drive Unit / Bosch Rexroth R911427186

Bosch Rexroth R911427186

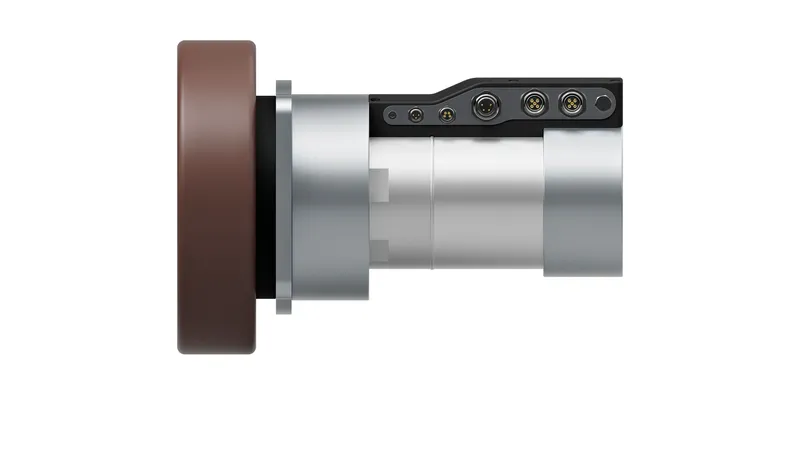

MOTOR DR1N10-NRNNN-1NBFS-S01RS-NN

MPN: R911427186
Category: DR1N Wheel Drive Unit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Bosch Rexroth R911427186?

The ROKIT Wheel Drive Unit from Bosch Rexroth is the ideal wheel drive unit for your mobile robots, such as automated guided vehicles (AGV) or autonomous mobile robots (AMR) with differential drive for transporting Euro pallets. The highly integrated plug-and-drive solution enables fast commissioning and flexible integration. With state-of-the-art technology, precise operation and minimal installation effort, the drive unit offers outstanding performance in a compact design. Thanks to certified functional safety through FSoE (Fail Safe over EtherCAT), it fulfills all necessary safety requirements according to safety level PLd/SIL2 and supports manufacturers in a fast, efficient and cost-saving market launch.

- Entire module is fully FSoE-based (Fail Safe over EtherCAT)

- Plug-and-drive – ready-to-install solution

- All-in-one design

- Minimal cabling effort

- Easy implementation and maintenance

- Standardized, future-proof interface

- Safety functions up to Safety Level PLd/SIL2 can be easily integrated, e.g. Safe Torque Off (STO) or Safe Direction (SDI)

- Small installation space

- Wide voltage range for battery-powered AGV/AMR

- Compatible with ctrlX AUTOMATION solutions

Specifications

Maximum torque [Nm]	70.0
Cooling type	Self-cooling
Predefined communication protocol	EtherCAT (FSoE)
International protection code	IP54
Gear ratio	1 : 17,3
Wheel diameter [mm]	200
Wheel width [mm]	50
Maximum driving speed [m/s]	2
Permissible air humidity (during operation) [%]	5-95
Permissible air humidity (storage) [%]	5-95
Permissible air humidity (transport) [%]	5-75
Ambient temperature (storage and transport) [°C]	-25-70
Ambient temperature (during operation) [°C]	0-40
Maximum operating altitude [m]	1000
Weight [kg]	13.46
Connector outlet	right

R911427186: frequently asked questions

When can R911427186 be shipped?

R911427186 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911427186 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911427186 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911427186, subject to availability and destination.
