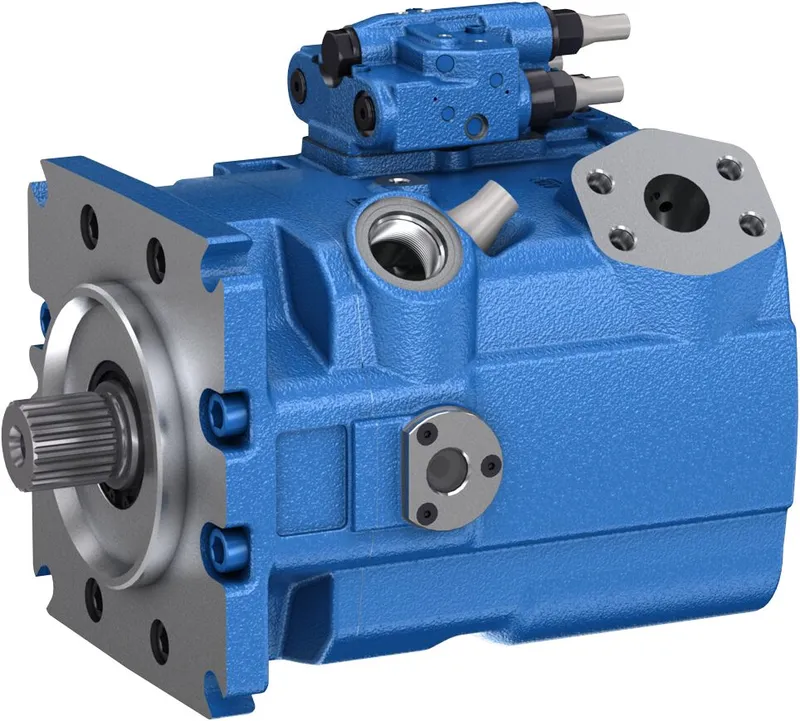

AXIAL-PISTON PUMP A15VSO210PLRDRS0A0V/12MRVE4A2PU0000-0

Name: AXIAL-PISTON PUMP A15VSO210PLRDRS0A0V/12MRVE4A2PU0000-0
Brand: Bosch Rexroth
SKU: R902583263

MPN: R902583263 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Axial piston variable pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R902583263 be shipped?

R902583263 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R902583263 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R902583263 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902583263, subject to availability and destination.

Specifications

Product family	A15V
Type of actuation	Open circuit, without charge pump
Size (displacement) [cm³]	210
Series	Series 1, index 2
Port and fastening threads	Metric, ISO 6149, O-ring
Direction of rotation	clockwise
Sealing material	FKM, shaft seal FKM
Shaft end	Splined shaft DIN 5480, W50x2x24x9g
Mounting flange	SAE J744, 165-4
Through drive	Prepared for through drive, with pressure-proof plugged cover
Connector for solenoids	without connector
Swivel angle indicator	With swivel angle indicator, without swivel angle sensor
Special version	Standard version
Rotational speed [rpm]	1500.0
Max. displacement [cm³]	210.0
Min. displacement [cm³]	0
Max. flow [l/min]	315.0
Min. flow [l/min]	0
Drive power [kW]	45.0
Pressure controller setting [bar]	350
Sensors	without sensor
Painting	unpainted
Swiveling range	One-sided swiveling (-5% to 100%)
Power controller	Fixed setting
Pressure controller 1	Fixed setting
Pressure controller 2	Without pressure cut-off
Stroke control	without stroke control
Load-sensing	Load-sensing, pump pressure internal, fixed setting
Override DG from cat. T	Without override DG (T)
Override DG from cat. V	Without override DG (V)
Addition for controller variant DRDR	Without addition for variant DRDR
Basic position and external control pressure supply	Max. swivel angle, without external control pressure supply
Rotary group	Efficiency and rotational speed-optimized (pump)
Weight [kg]	122.55
