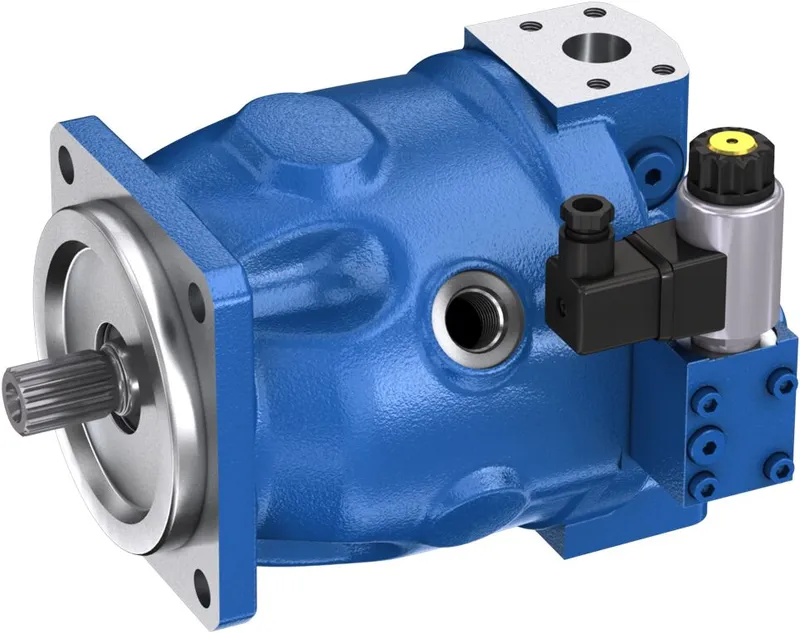

AXIAL-PISTON PUMP A A10VZO018DR000/10R-VRC12N000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902557889 be shipped?
R902557889 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902557889 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902557889 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902557889, subject to availability and destination.
The proven axial piston units from the A10 product family have now been further developed for use in speed-controlled drives. They are approved for start/stop operation and designed for a changing direction of rotation. The A10 units can be used as pumps and as motors in one- and two-quadrant operation. For use in single- and double-quadrant operation Suitable for start/stop-operation Suitable for long pressure retention operation Well-tried A10 rotary group technology High total efficiency
Specifications
Specifications
| Version_1 | Standard |
| Version_2 | Standard |
| Product family | A10VZ |
| Type of actuation | Pump, open circuit |
| Size (displacement) [cm³] | 18 |
| Control device | DR remote controlled |
| Series | Series 1, index 0 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Sealing material | FKM (standard) |
| Shaft end | Splined shaft outlet |
| Mounting flange | ISO 3019-1 (SAE), 2 hole |
| Working ports | B flan l metr, S flan l metr |
| Through drive | Without through drive |
| Connector for solenoids | Without |
| Rotational speed [rpm] | 3300.0 |
| Working pressure [bar] | 315.0 |
| Max. displacement [cm³] | 18.0 |
| Max. displacement setting | Variabel |
| Min. displacement [cm³] | 0.0 |
| Min. displacement setting | Variabel |
| Max. flow [l/min] | 59.4 |
| Min. flow [l/min] | 0.0 |
| Internal drain line | No |
| Classification society (external) | No |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | without |
| Paint/top coat | Without |
| Weight [kg] | 12 |
