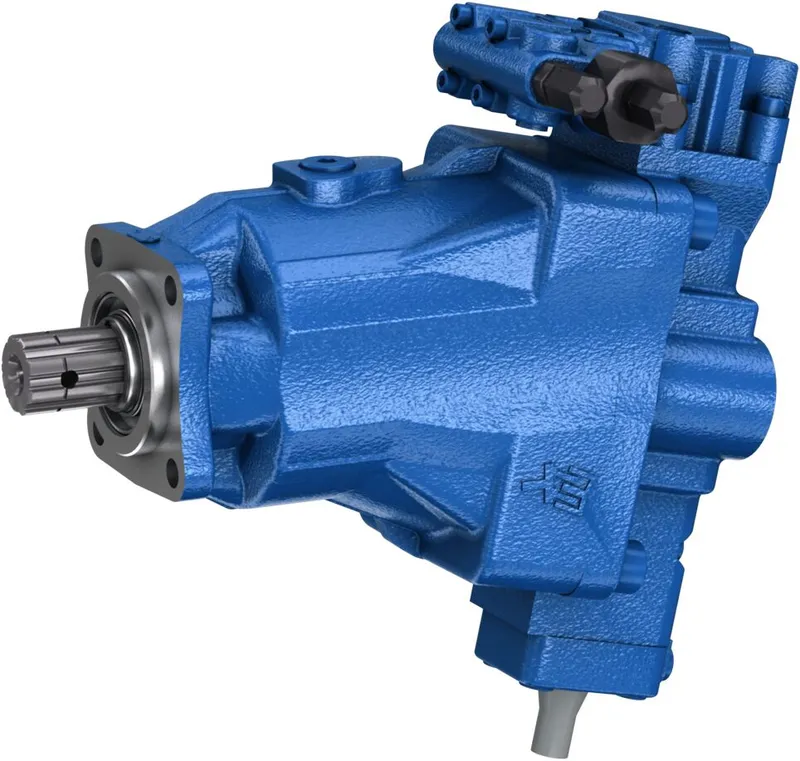

AXIAL-PISTON PUMP A18VO055DRS00/11NRWK0E810-0 *GO2EU*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902247052 be shipped?
R902247052 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902247052 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902247052 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902247052, subject to availability and destination.
A18VO is a variable displacement pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The pump has been especially designed for demanding applications and comfortable control in working equipment in commercial vehicles, e.g. large HGV loading cranes and superstructures. The flow is proportional to the drive speed and the displacement. By adjusting the bent axis, the flow can be continuously changed. Flange and shaft designed for direct mounting on the power take-off of commercial vehicles Optimized weight by cast aluminum housing High total efficiency Low operating noise Excellent suction characteristics Long service life
Specifications
Specifications
| Product family | A18V |
| Type of actuation | Pump, open circuit |
| Size (displacement) [cm³] | 55 |
| Series | 11 |
| Port and fastening threads | metric |
| Direction of rotation | clockwise |
| Sealing material | FKM (fluorocarbon rubber) 2 WDR |
| Shaft end | Splined shaft similar to DIN ISO 14 |
| Mounting flange | Special flange ISO 7653-1985 |
| Connector for solenoids | without connector |
| Port plate for service lines | Threaded port A and S rear |
| Additional functions | without additional functions, standard |
| Max. operating pressure [bar] | 350.0 |
| Max. displacement [cm³] | 55.0 |
| Min. displacement [cm³] | 0.0 |
| Max. flow [l/min] | 133.0 |
| Min. flow [l/min] | 0.0 |
| Max. rotational speed [rpm] | 2500 |
| Pressure controller setting [bar] | 350 |
| Load-sensing setting [bar] | 30 |
| Suction adapter | without |
| Adapter | without |
| Port A | DIN ISO 228 - G 3/4 open |
| Suction port S | DIN ISO 228 - G 1 open |
| Port R | DIN 3852 M18X1.5 plugged |
| Port M1 | DIN 3852 M12x1.5 plugged |
| Port X | ISO 11926 7/16-20 UNF-2B open |
| Port X2 | without |
| Port MA | DIN 3852 M10x1 plugged |
| Port T | DIN 3852 M12x1.5 open |
| Classification society (external) | Standard without acceptance |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Weight [kg] | 16 |
