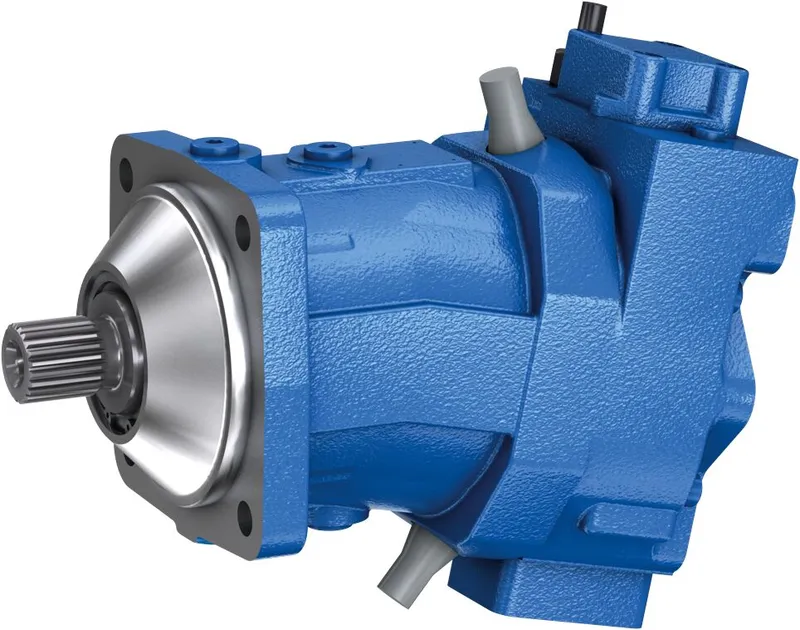

AXIAL-PISTON PUMP A7VO160DR/63R-NPB01 *GO2EU*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902230089 be shipped?
R902230089 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902230089 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902230089 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902230089, subject to availability and destination.
A7VO is a variable displacement pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. By adjusting the bent axis, the flow can be continuously changed. Robust pump with long service life Well-tried rotary group technology
Specifications
Specifications
| Product family | A7VO |
| Type of actuation | Pump |
| Size (displacement) [cm³] | 160 |
| Control device | Pressure controller |
| Pressure cut-off | without |
| Series | 63 |
| Direction of rotation | clockwise |
| Sealing material | NBR, WDR-FKM (std up to NG160) |
| Shaft end | Cyl. shaft w. key acc. to DIN6885 |
| Shaft end size | Shaft key AS14X9X70 |
| Mounting flange | 4-hole ISO 3019-2 |
| Port plate for service lines | SAE A/B and S rear |
| Max. operating pressure [bar] | 350.0 |
| Max. flow [l/min] | 294.0 |
| Min. flow [l/min] | 0.0 |
| Max. rotational speed [rpm] | 1900.0 |
| Pressure controller setting [bar] | 350 |
| Displacement limitations [cm³] | ohne (Standard) |
| Working pressure at min. flow [bar] | 50 |
| Working pressure at max. flow [bar] | 50 |
| Solenoid version | without |
| Port A | Without |
| Suction port S | SAE 3" fastening thread M16 |
| Port T1 | M12x1.5 open |
| Port X1 | without |
| Port B | SAE 1 1/4" fastening thread M14 |
| Port U | M22x1.5 plugged |
| Classification society (external) | Standard without acceptance |
| Test certificate | without |
| Test certificate language code | without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Stroke limiter (up to NG160) | Without |
| Stroke limiter (from NG250) | Without |
| Remote control LR (from NG250) | Without |
| Remote control pressure controller | without |
| Pressure controller with load-sensing | without |
| Electric control EP (up to NG160) [mA] | ohne |
| Weight [kg] | 74.2 |
