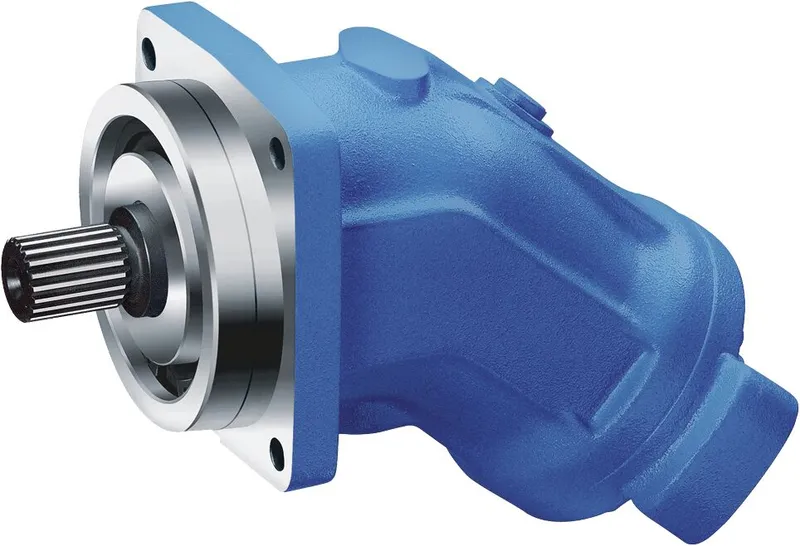

AXIAL-PISTON MOTOR A2FM63/61W-VAB010 *GO2EU*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston fixed motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902230037 be shipped?
R902230037 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902230037 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902230037 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902230037, subject to availability and destination.
The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure. High power density Very high total efficiency High starting efficiency Robust 40° bent-axis technology
Specifications
Specifications
| Product family | A2FM |
| Type of actuation | Motor |
| Size (displacement) [cm³] | 63 |
| Series | 61 |
| Direction of rotation | alternating |
| Sealing material | FKM |
| Low temperature version | no |
| Shaft end | A (splined shaft DIN 5480) |
| Mounting flange | 4-hole ISO 3019-2 |
| Working ports | 01 (port A, B;SAE rear) |
| Speed sensing | without |
| Pressure relief valve | without |
| Rotary group, hydraulic part | Standard |
| Drive shaft bearing | Standard bearing |
| Shaft seal ring | Standard WDR |
| Housing ports | Leakage oil port T1 |
| Housing ports, status | Leakage oil port T1 plugged |
| Installation version of port plate | Installation version 1 (standard) |
| Fixing screws | Standard |
| Port plate | A-Standard |
| Classification society (external) | Standard (without acceptance) |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Weight [kg] | 18.5 |
