Bosch Rexroth R901490404
REFLECTOR AND DRIVE ASSY. TS-HC-WS200-230V/60HZ-1F
- MPN
- R901490404
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

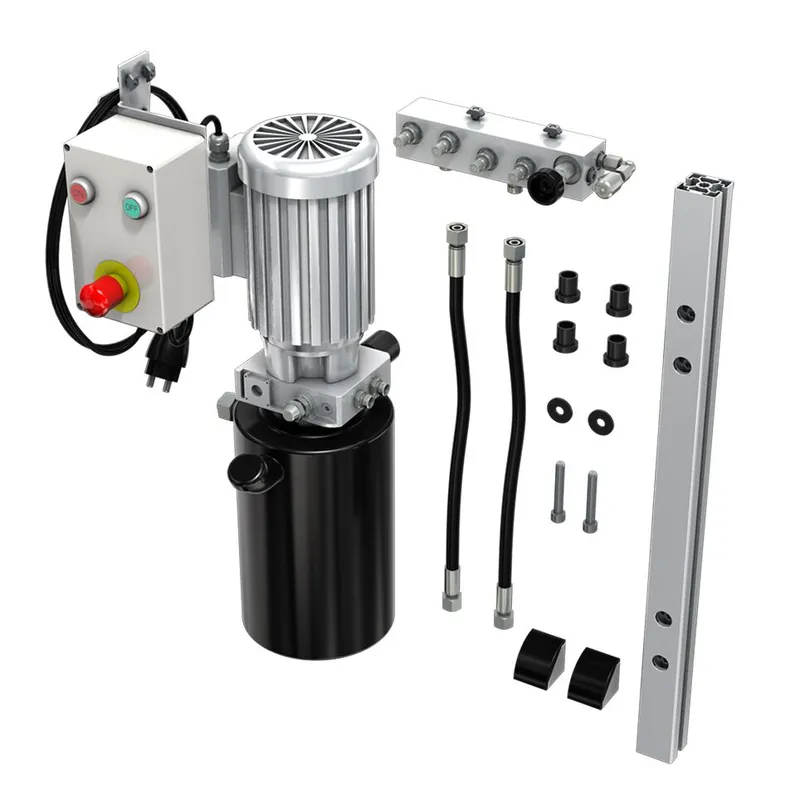

What is the Bosch Rexroth R901490404?
Supply voltage: 230 V/60 Hz
1 power unit with noise-reduced fixed displacement pump
1 P/T distributor with pressure relief valve and low-leakage oil, self-sealing quick-release coupling connectors
1 control box, 1 hose set, 1 mounting kit, 1 damping set
Suitable for Hydraulix 200 workstation
Specifications
Specifications
| Max. flow [l/min] | 3.0 |
| Operating pressure max. [bar] | 70 |
| Mains frequency [Hz] | 60 |
| Current consumption [A] | 1.6 |
| Weight [kg] | 20.8 |
R901490404: frequently asked questions
When can R901490404 be shipped?
R901490404 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901490404 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901490404 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901490404, subject to availability and destination.
