Bosch Rexroth R901463351

ACCUMULATOR GROUP ABSBG-2X/B32,0N-CE /30E210G 24V/A6M DC

MPN: R901463351
Category: Modules for power units, accumulator stations

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Bosch Rexroth R901463351?

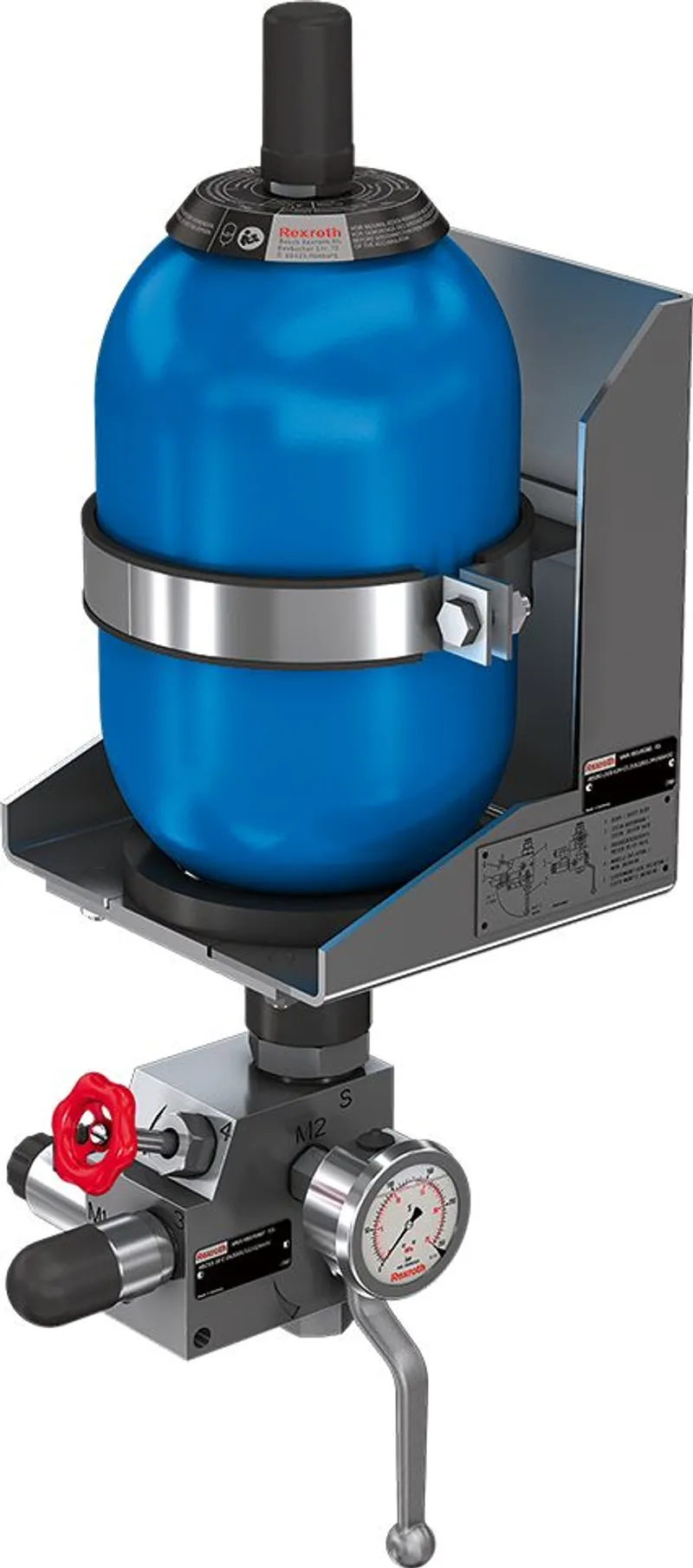

Complete mounted accumulator station on a console consisting of a bladder-type accumulator, accumulator shut-off block and pressure gauge with red marking

Bladder-type accumulator 32.0 liters (conformity CE)

Accumulator shut-off block (NG6) including type-examination tested pressure valve (acc. to PED 2014/68/EU) set to 210 bar, unloading: Manual (valve voltage 24 V DC voltage)

Specifications

Product family	ABSBG
Operating pressure, max. [bar]	210.0
Max. flow [l/min]	900.0
Type of connection	Assembly kit
Type of actuation	with manual actuation
Material (diaphragm / bladder)	NBR
Supply voltage	24 VDC
Electrical connector	Connector, 3-pole (2 + PE)
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Conformity	CE
Hydraulic fluid	HL; HLP
Seals	FKM
Weight [kg]	139
