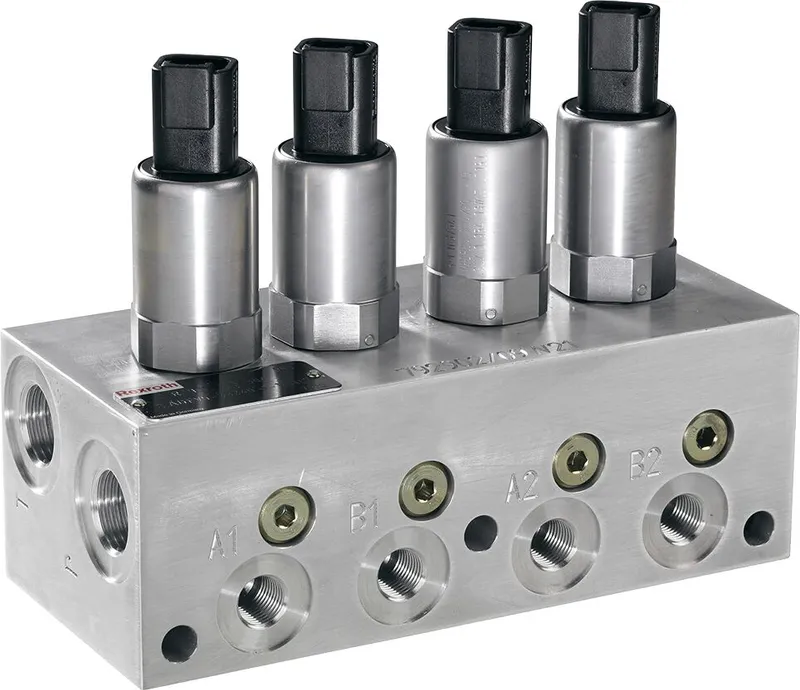

HY-MANIFOLD BLOCK HICFP06-2A-AL-1X/DR30G24K40V

Name: HY-MANIFOLD BLOCK HICFP06-2A-AL-1X/DR30G24K40V
Brand: Bosch Rexroth
SKU: R901391736

MPN: R901391736 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Standard functions
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R901391736 be shipped?

R901391736 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901391736 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901391736 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901391736, subject to availability and destination.

Maximum operating pressure 100 bar (1450 psi) Maximum flow 40 l/min (11 gpm) Cavity M24x1,5

Specifications

Product family classification	Remote control plate
Product family type	HICFP
Product family	HICFP; Remote control plate
Ports number	6
Operating pressure, max. [bar]	100.0
Max. flow [l/min]	40.0
Normal position	Normally closed
Type of connection	Threaded connection
Direct - Pilot	Direct acting
Cavity	M24x1,5
Nominal flow [l/min]	40.0
Coil integrated	Integrated coil
Supply voltage	24 V DC
Maximum control pressure [bar]	30
Electrical connector	Deutsch DT04-2P
Ports	Threaded connection, flat-sealing according to DIN 3852-2
Sealing material	FKM
Hydraulic fluid	HEES; HEPG; HETG; HL; HLP; HLPD; HVLP; HVLPD
Product type	HICFP
Weight [kg]	3.84
