Bosch Rexroth R18536237X
ROLLER RUNNER BLOCK RESIST CR RWD-065-FLS-C2-H-2
- MPN
- R18536237X
- Category
- Roller runner blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R18536237X?

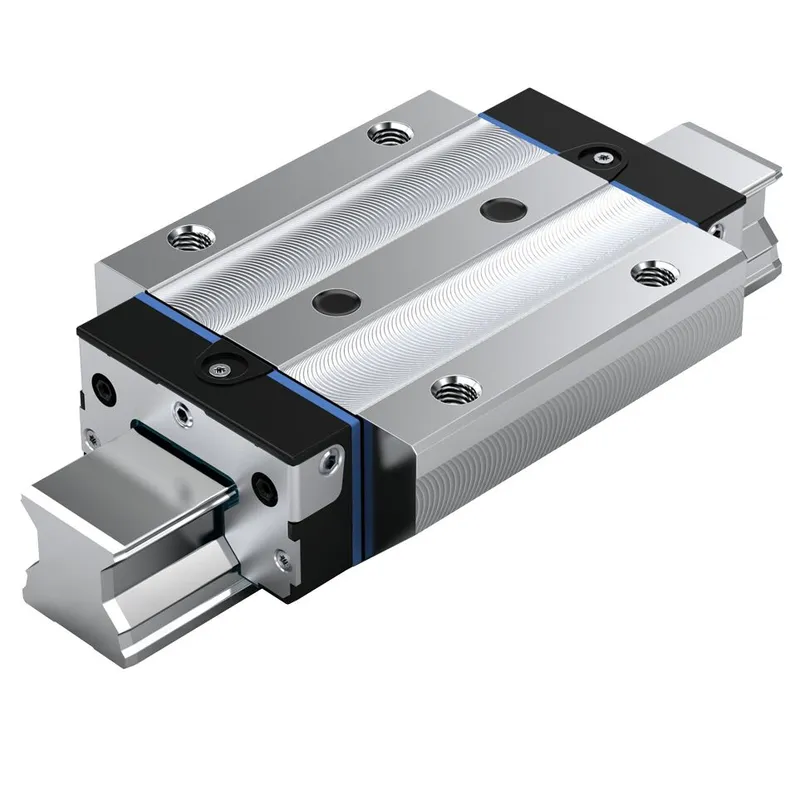

The roller runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 65
Format FLS: Width = flange, length = long, height = standard
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C2: Medium preload
Accuracy class H: High
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version

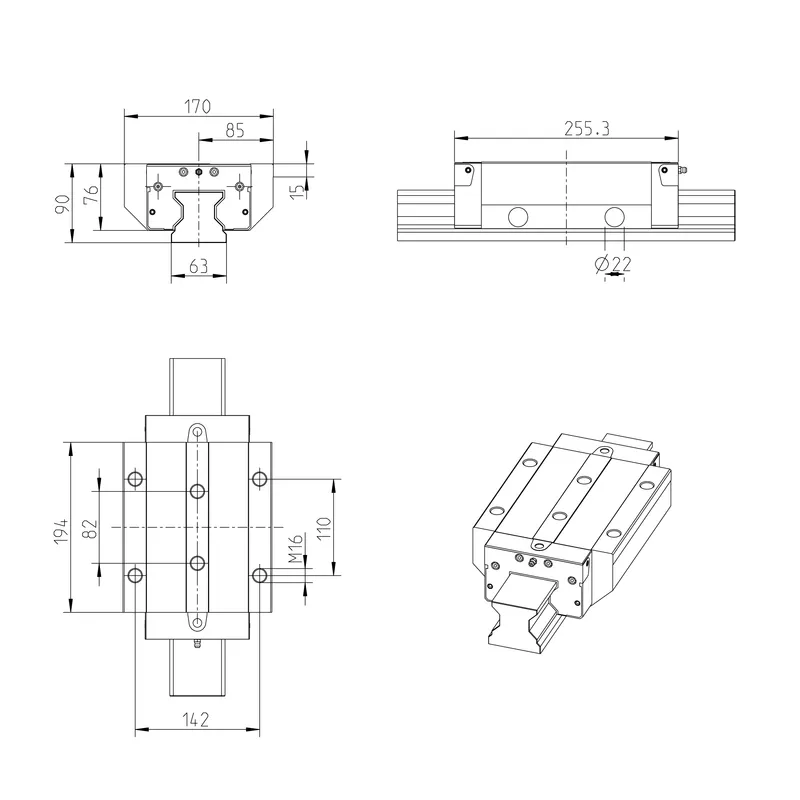

Overall length of the runner block = 255.3 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
High torque load capacity
The same high load ratings in all four main directions of loading
Maximum rigidity in all load directions due to additional screw connections on two bore holes in the center of the Roller Runner Block
Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated
All guide rail versions can be combined at will with all roller runner block variants
Accessories can be screwed down to the front of the Roller Runner Block.
Lube nipples possible on all sides for easy maintenance
Minimum lubrication quantities thanks to innovative channel design
Smooth, quiet running thanks to optimally designed return and guideways of the rollers
Attachments on the Roller Runner Block can be mounted from above and below
Lowest elastic deflection and greatest precision in the process due to the multi-optimized entry-zone geometry and high number of rollers
The roller runner block is simply slid onto the rail with the transport lock.
Integrated all-around sealing as standard
Unrestricted interchangeability
Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request
Sizes 25 and 65
Preload classes C1 to C5
Version with seals DS, SS or AS
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 65 |
| Format | FLS - flange, long, standard height |
| Model | High-precision roller runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C2 - Medium preload |
| Accuracy class | H - Highly accurate |
| Seal | DS - Double-lip seal |
| Width of runner block [mm] | 170.0 |
| Length of runner block [mm] | 255.3 |
| Height of runner block [mm] | 76.0 |
| Height runner block with guide rail [mm] | 90.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax [m/s] | 4.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 14.2 |
| Dynamic load capacity C50 [N] | 364000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 295900.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 606300.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 12900.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 10510.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 21540 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 10900.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 8870.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 18180 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner block. |
| Pitch T guide rail [mm] | 75 |

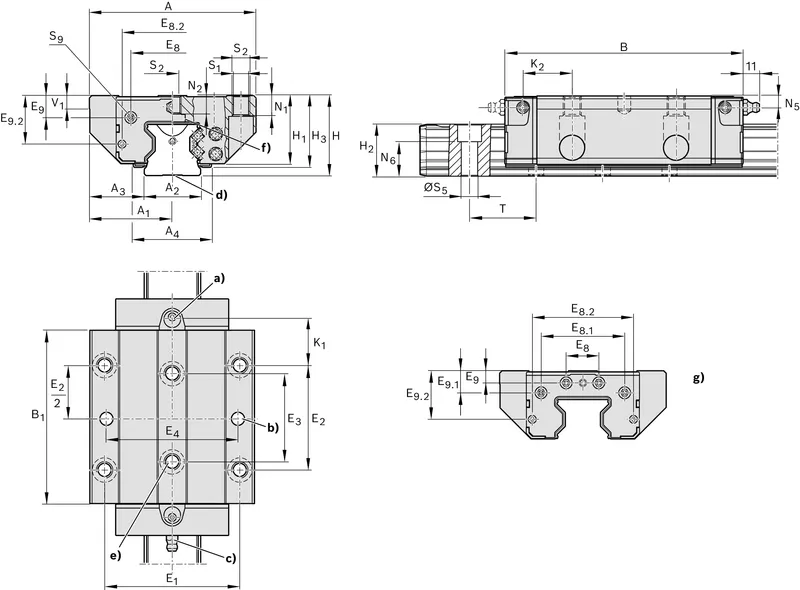

| Dimension A (profiled rail systems) [mm] | 170 |
| Dimension A1 (profiled rail systems) [mm] | 85 |
| Dimension A2 (profiled rail systems) [mm] | 63 |
| Dimension A3 (profiled rail systems) [mm] | 53.5 |
| Dimension B (profiled rail systems) [mm] | 255.3 |
| Dimension B1 [mm] | 194 |
| Dimension diameter S5 (profiled rail systems) | 18 |
| Dimension E1 [mm] | 142 |
| Dimension E2 (profiled rail systems) [mm] | 110 |
| Dimension E3 (profiled rail systems) [mm] | 82 |
| Dimension E8 (profiled rail systems) [mm] | 35 |
| Dimension E8.1 (profiled rail systems) [mm] | 93 |
| Dimension E9 (profiled rail systems) [mm] | 9.3 |
| Dimension E9.1 (profiled rail systems) [mm] | 26 |
| Dimension H [mm] | 90.0 |
| Dimension H1 (profiled rail systems) [mm] | 76 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 58.15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 57.85 |
| Dimension K1 (profiled rail systems) [mm] | 54 |
| Dimension K2 (profiled rail systems) [mm] | 57 |
| Dimension N1 (profiled rail systems) [mm] | 23 |
| Dimension N2 (profiled rail systems) [mm] | 21.5 |
| Dimension N5 (profiled rail systems) [mm] | 9.3 |
| Dimension N6 (profiled rail systems) [mm] | 36.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 thread diameter (profiled rail systems) [mm] | 14.6 |
| Dimension S2 (profiled rail systems) | M16 |
| Dimension S9 | M4 |
| Dimension S9 thread diameter (profiled rail systems) | M4 |
| Dimension T1 min [mm] | 21 |
| Dimension V1 [mm] | 15 |
| Note of Dimension T | Dimension T = Rail separation of the roller guide rail |
