Bosch Rexroth R184761342

ROLLER GUIDE RAIL RESIST CRII RSA-065-SNS-H-MB-00

MPN: R184761342
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R184761342?

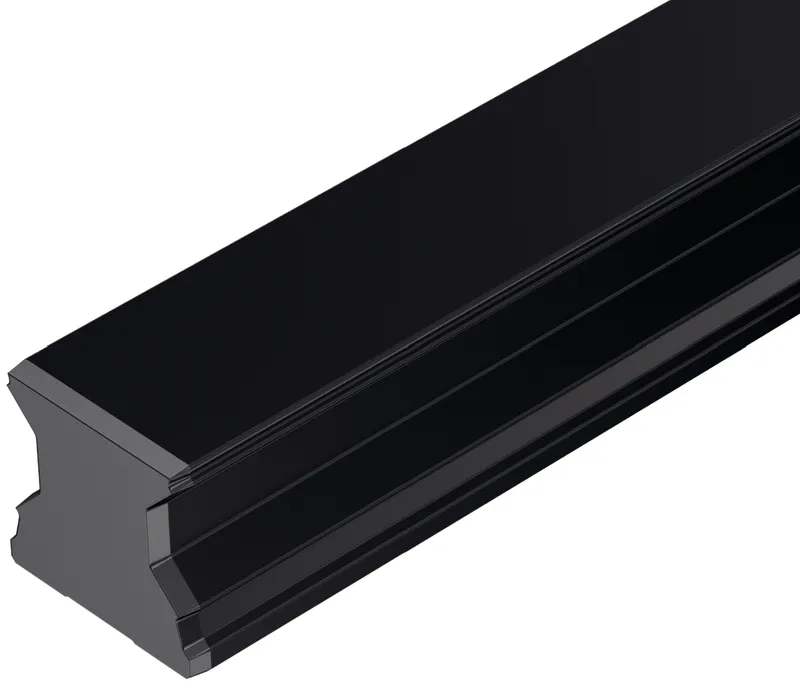

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CRII coating. Additionally, it is characterized by the following product features:

Size 65

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS, black, hard chrome plated

Fastener MB: Bolting from below

Cover 00: Without cover

Accuracy class high

Number of partial sections: 2

Rail in standard version

For mounting from below

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Corrosion-resistant Resist CR coating: black finish, hard chrome plated

Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR II, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request

Specifications

Version	Roller rail systems
Nominal size [mm]	65
Format	SNS - Standard guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from below
Guide rail cover	Without cover strip
Max. length Lmax [mm]	3971.0
Minimum length Lmin [mm]	190.0
Number of holes nB (profiled rail systems)	53
Number of sections	2-piece
Mass m (kg/m) [kg/m]	17.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	75

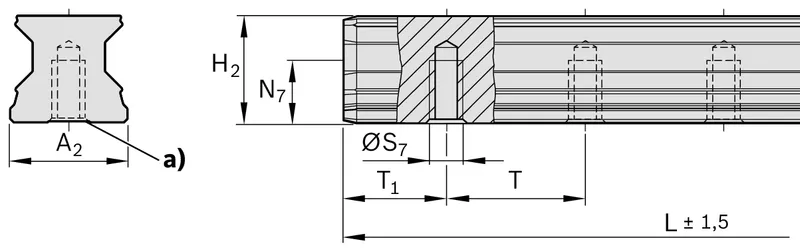

Dimension A2 (profiled rail systems) [mm]	63
Dimension H2 without cover strip (profiled rail systems) [mm]	57.85
Dimension N7 (profiled rail systems) [mm]	25
Dimension S7 thread diameter	M16
Dimension T [mm]	75
Dimension T1 max (profiled rail systems) [mm]	55
Dimension T1 min [mm]	21
Dimension T1 s (profiled rail systems) [mm]	35.5
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
