Bosch Rexroth R182423216
ROLLER RUNNER BLOCK CARBON STEEL RWA-025-SLH-C3-P-2
- MPN
- R182423216
- Category
- Roller runner blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

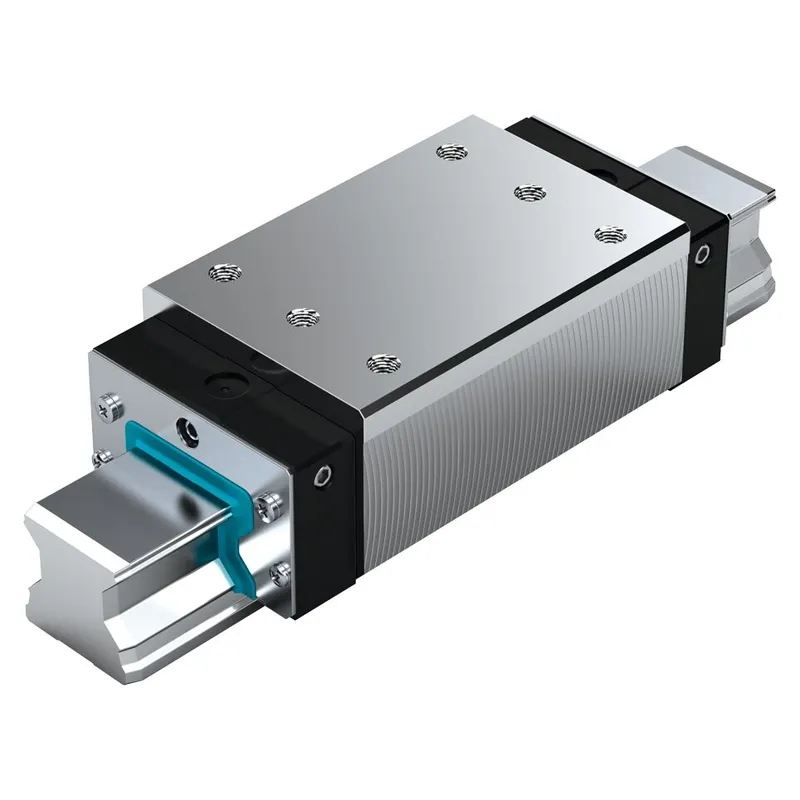

What is the Bosch Rexroth R182423216?
The roller runner block is highly precise and characterized by the following product features:
Size 25
Format SLH: Width = slimline, length = long, height = high
Runner block body made of unalloyed steel CS
Preload class C3: High preload
Accuracy class P: Precision
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
No lube connection attached.
Runner block body in standard version
Overall length of the runner block = 115.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 25 |
| Format | SLH - slimline, long, high |
| Model | High-precision roller runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C3 - High preload |
| Accuracy class | P - Precise |
| Seal | SS - Standard seal |
| Width of runner block [mm] | 48.0 |
| Length of runner block [mm] | 109.0 |
| Height of runner block [mm] | 34.0 |
| Height runner block with guide rail [mm] | 40.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Possible speeds of up to 4 m/s. Service life is limited by heightened stress to plastic parts. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.9 |
| Dynamic load capacity C50 [N] | 41000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 33300.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 70000.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 530.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 432.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 908 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 520.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 420.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 900 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner block. |
| Product information | Oil and grease lubrication from above |

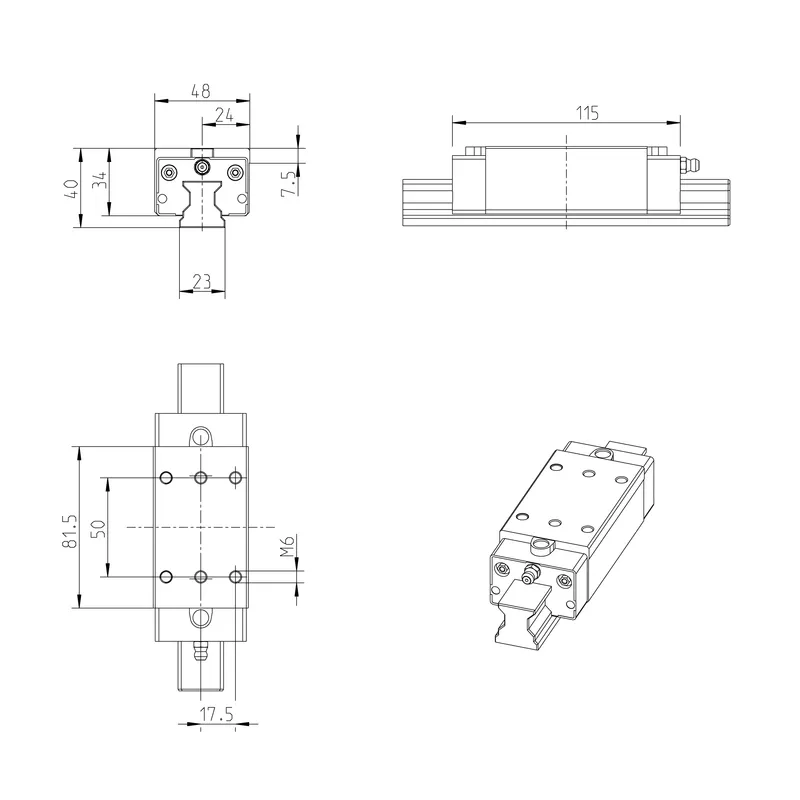

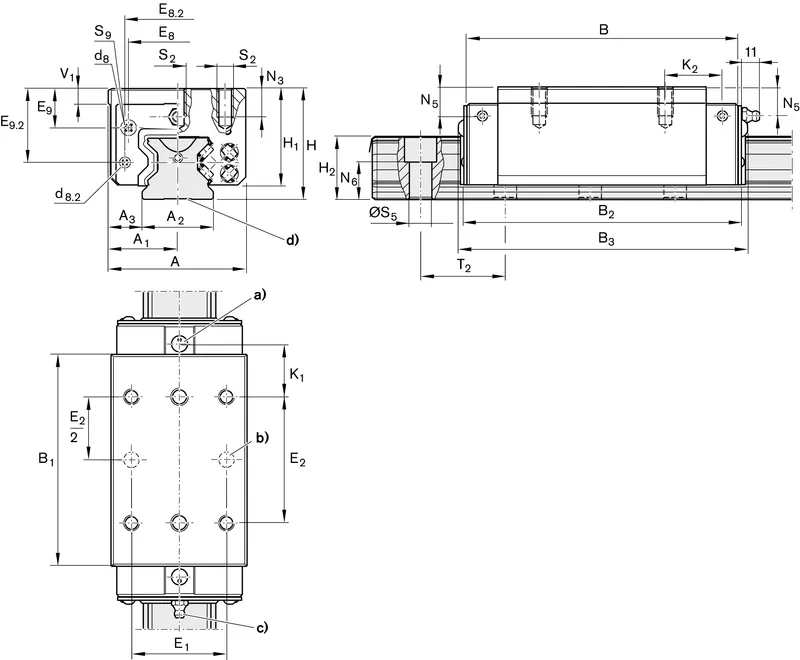

| Dimension A (profiled rail systems) [mm] | 48 |
| Dimension A1 (profiled rail systems) [mm] | 24 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension A3 (profiled rail systems) [mm] | 12.5 |
| Dimension B (profiled rail systems) [mm] | 109 |
| Dimension B1 [mm] | 81.5 |
| Dimension B2 (profiled rail systems) [mm] | 111 |
| Dimension B3 [mm] | 115 |
| Dimension diameter S5 (profiled rail systems) | 7 |
| Dimension E1 [mm] | 35 |
| Dimension E2 (profiled rail systems) [mm] | 50 |
| Dimension E8 (profiled rail systems) [mm] | 33.4 |
| Dimension E9 (profiled rail systems) [mm] | 12.4 |
| Dimension H [mm] | 40.0 |
| Dimension H1 (profiled rail systems) [mm] | 34 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 23.6 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 23.4 |
| Dimension K1 (profiled rail systems) [mm] | 20.6 |
| Dimension N3 (profiled rail systems) [mm] | 9 |
| Dimension N5 (profiled rail systems) [mm] | 9.5 |
| Dimension N6 (profiled rail systems) [mm] | 14.3 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M6 |
| Dimension S9 | M3 |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension T2 [mm] | 30 |
| Dimension V1 [mm] | 7.5 |
