Bosch Rexroth 3842999898
BELT SECTION BS 1
- MPN
- 3842999898
- Category
- Belt sections TS 1
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 3842999898?

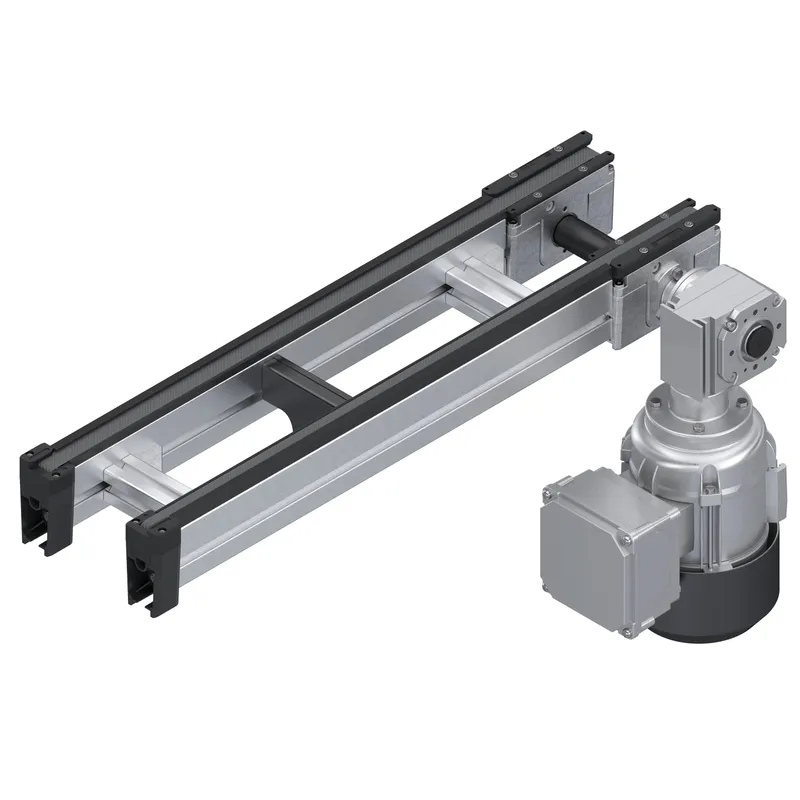

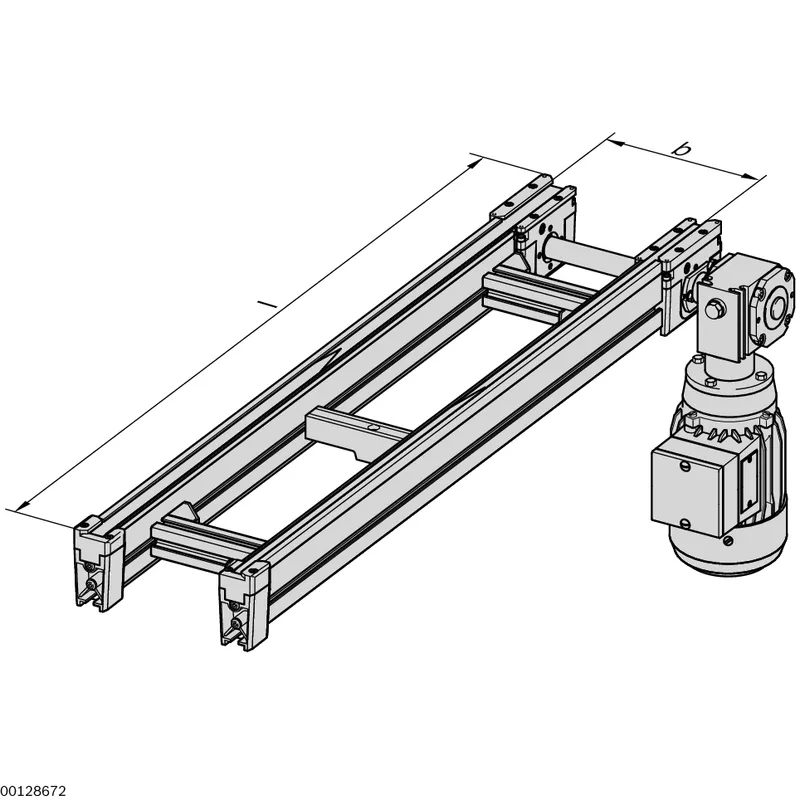

Longitudinal conveying of workpiece pallet on conveyor sections of up to 5000 mm. In connection with two lift transverse units, the BS 1 can be used as a transverse conveyor.

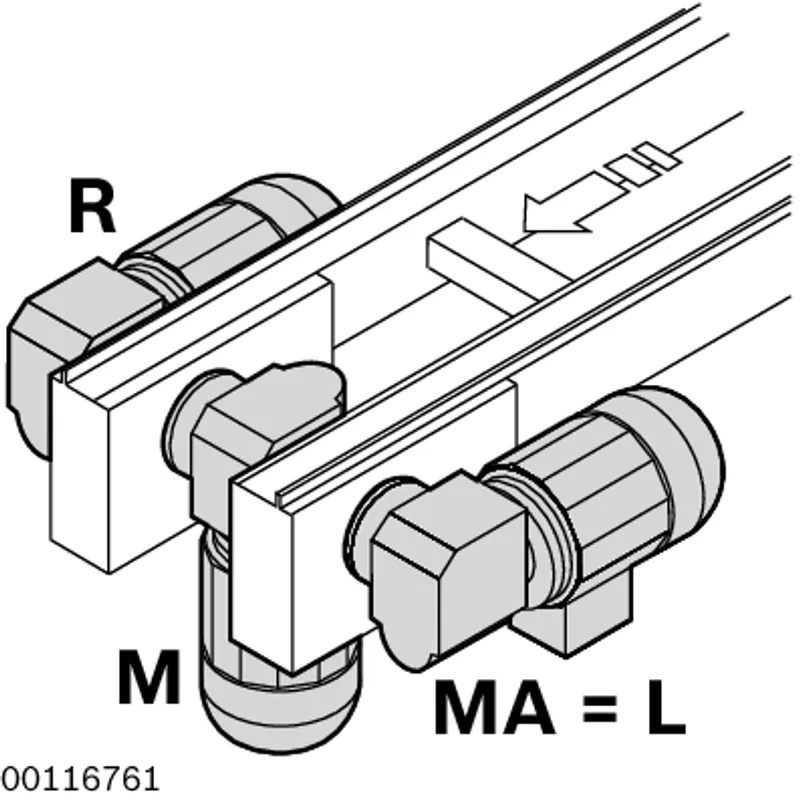

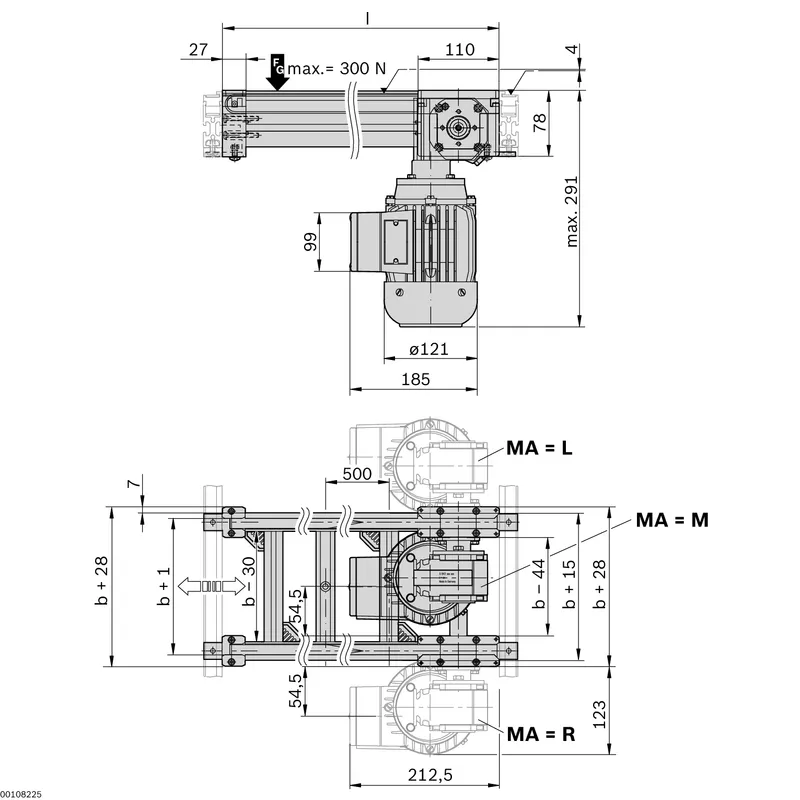

Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
Section loads up to 30 kg in accumulation operation
Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
Depending on the length, the BS 1 is delivered with two, three or four cross connectors
Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
Special models on request
Specifications
Specifications
| ESD | Yes |
| Length max [l max] [mm] | 5000 |
| Length min [L min] [mm] | 250 |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 720 |
| Track width in direction of transport [b min] [mm] | 80 |
| Section load in accumulation operation [kg] | 30 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Delivery information | Assembled. Motor included separately. |
| Preferred values [mm] | 120; 160; 80 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Connection kit; Leg set SZ 1 |
| Weight [kg] | 0 |
