DRIVE KIT VFPLUS CURVE VAR

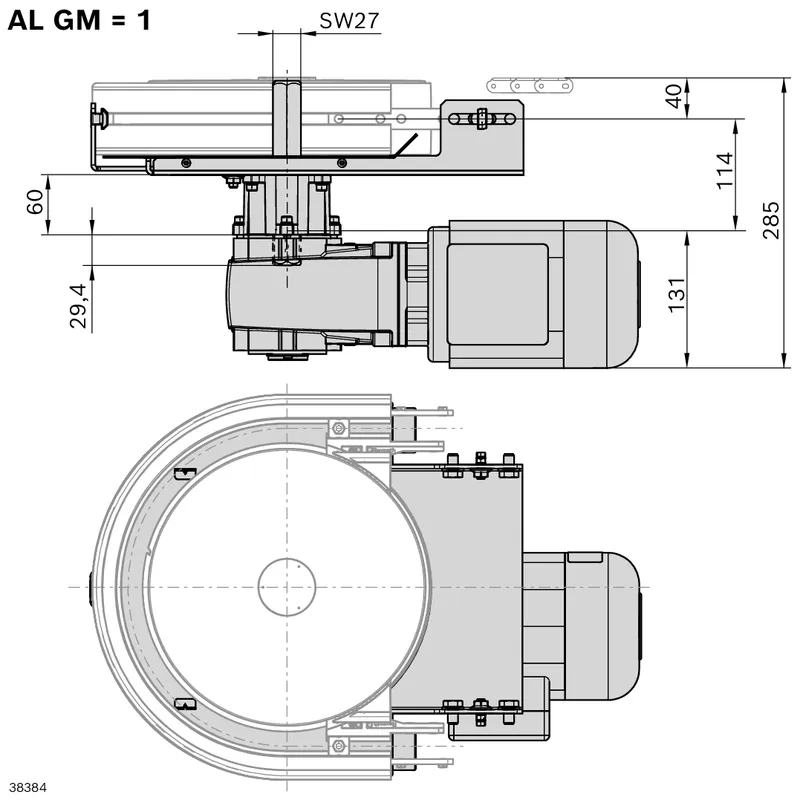

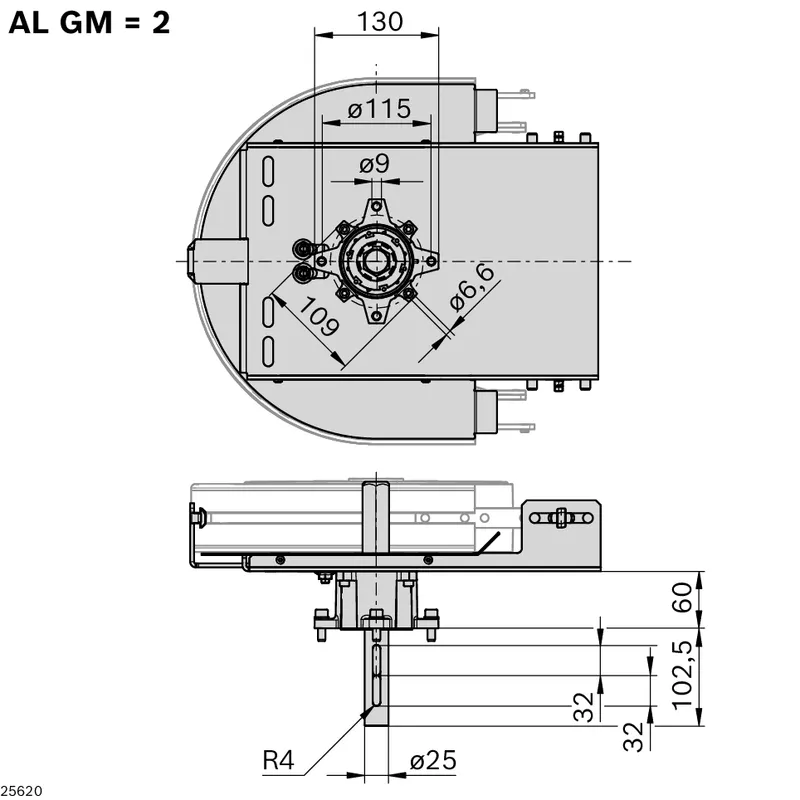

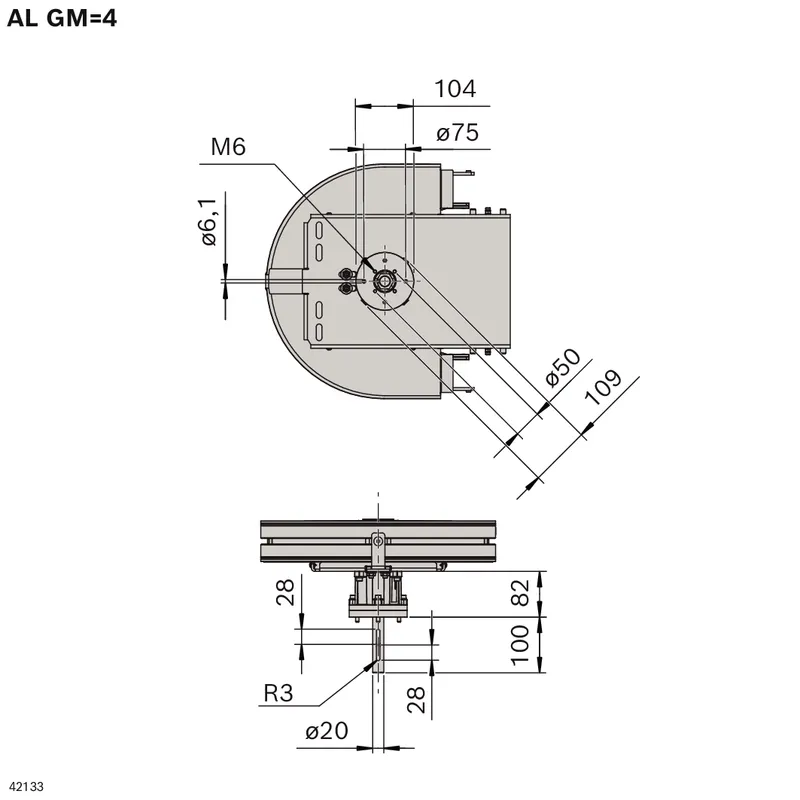

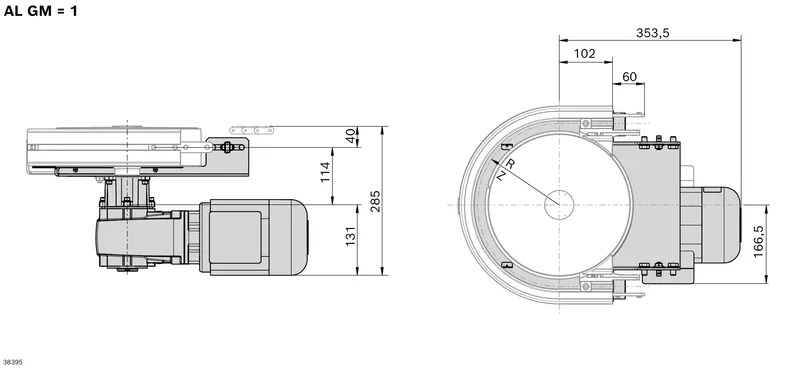

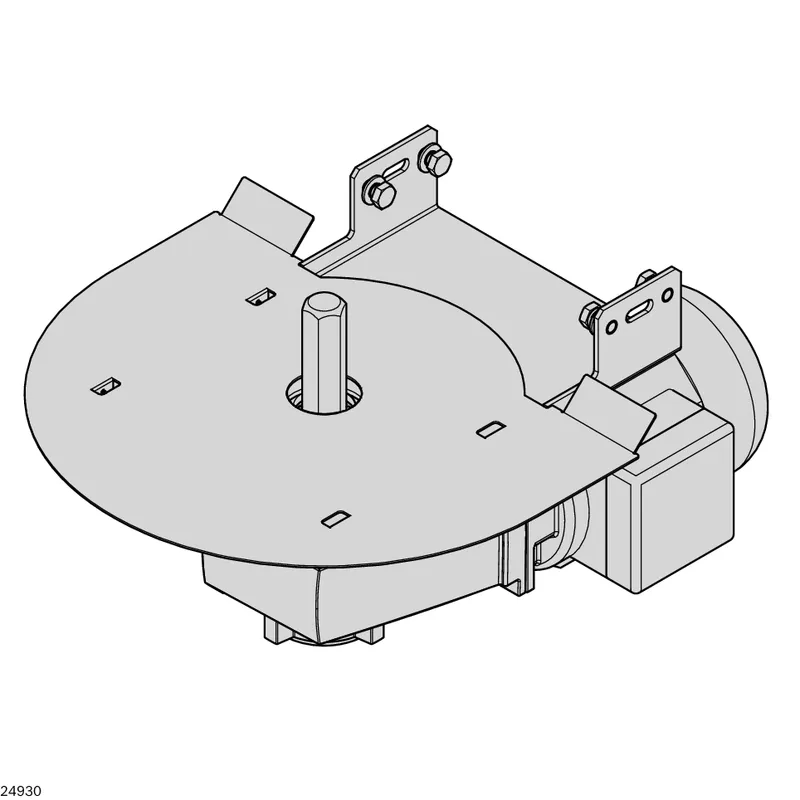

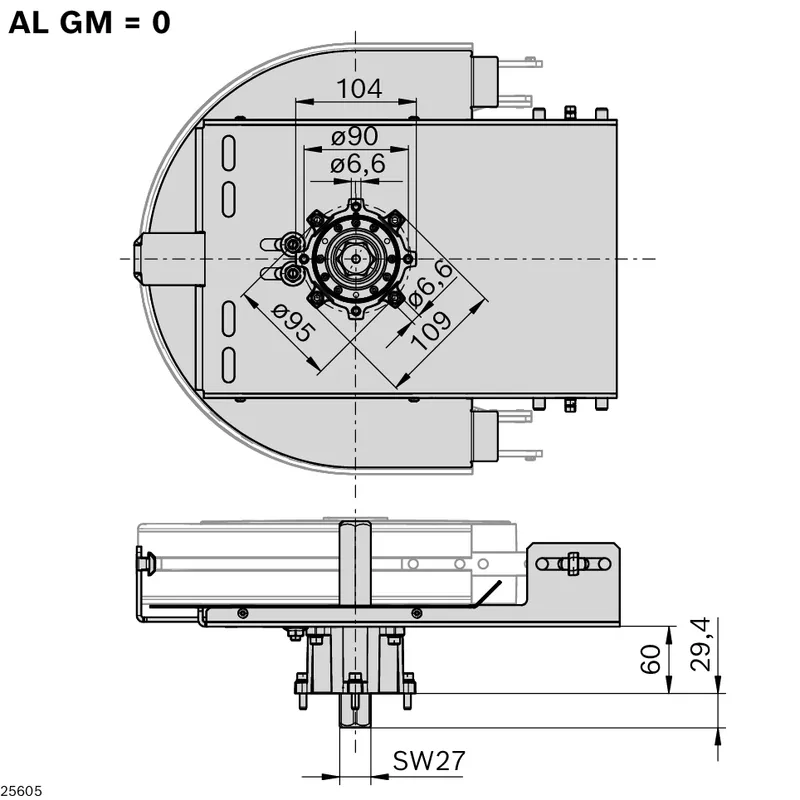

The curve wheel drive kit contains a flange for attaching the motor to the curve wheel, a hexagonal shaft for transmission of force, as well as other optional equipment features. The transmission of force of several superimposed curve wheels is possible; the motor torque then has to be distributed across all curve wheel levels. For building a circulation system with curve wheel (AC = 0) or an alpine conveyor tower (AC = 1) With preset ball catch coupling (Kpg = 1) for limiting the torque or for the drive kit of the alpine conveyor tower (AC = 1) also without (Kpg = 0). The adjustable ball catch coupling is protected and integrated in the flange to save space and does not serve personal protection With Lenze gear motor (GM = 1, without surface and corrosion protection) or with an interface for attaching an SEW SA47 gear motor (GM = 2). In order to ensure a compact installation situation, smaller and lighter gear motors (GM=3) or an interface for the installation of an SEW SA37 gear motor (GM=4) are available for applications with low load. An adaptation by the customer is required for attaching other gear motors (GM = 0), Fixed or adjustable speed (vN). For an adjustable speed, gear motors must be retrofitted with an FU (frequency converter) Connections are made using terminal boxes (AT = K) or plugs (AT = S)

Specifications
