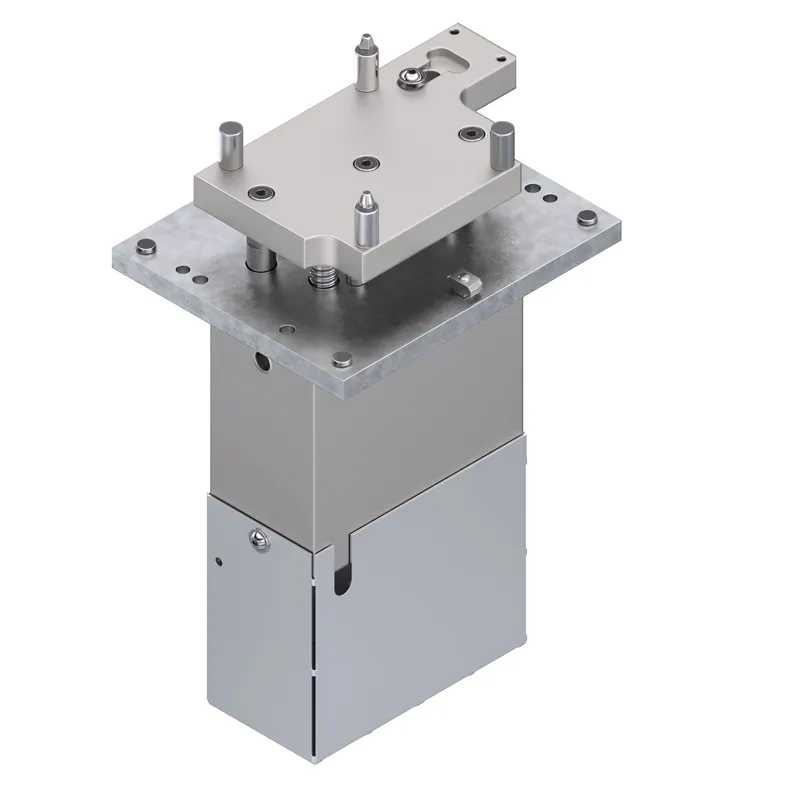

LIFT POSITIONING UNIT HP 1 MITTELSTELLUNG

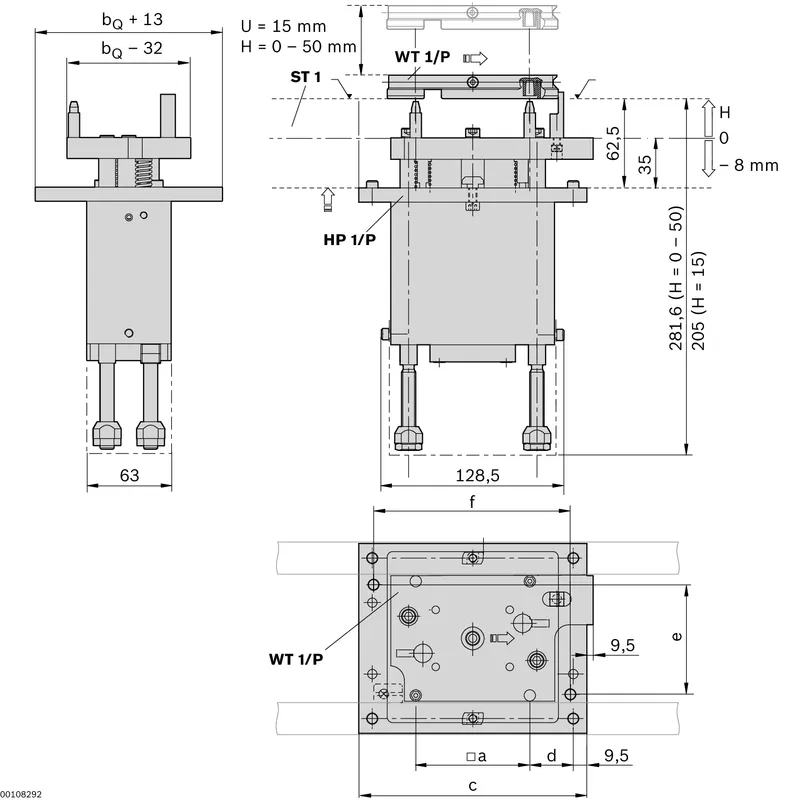

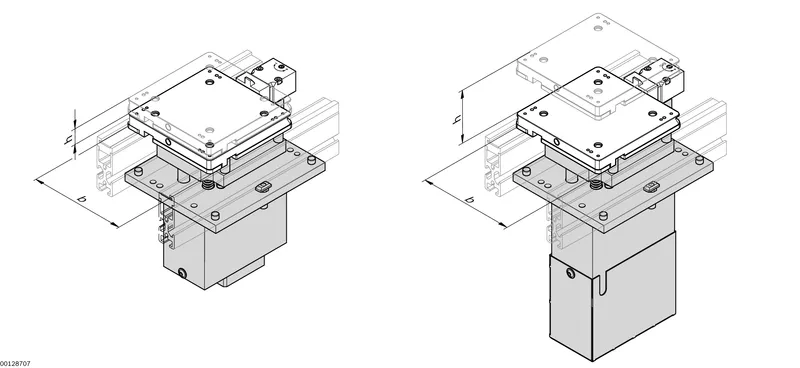

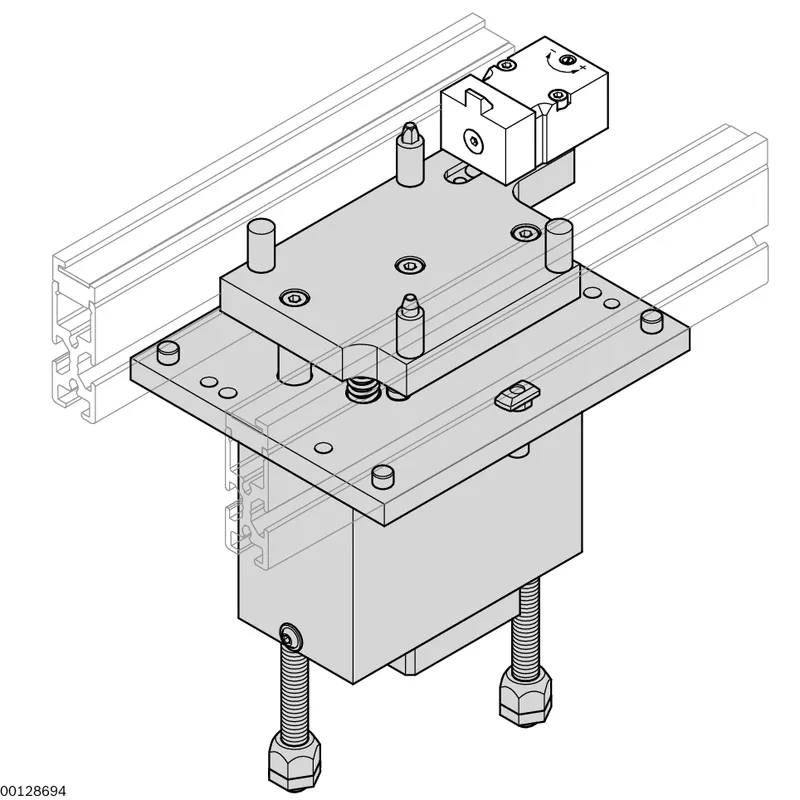

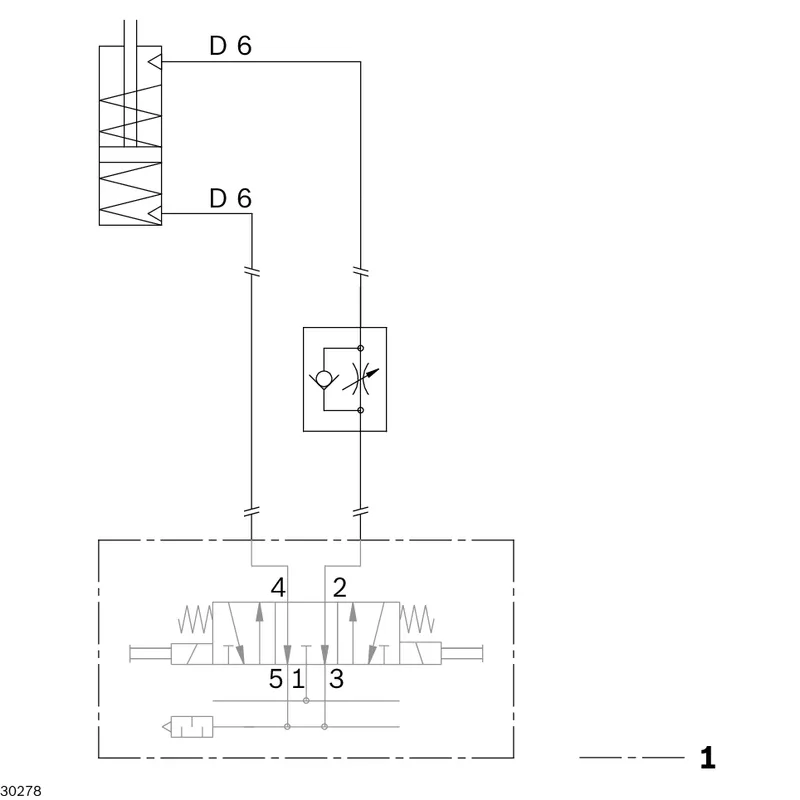

Lift positioning unit HP 1/P h=0-50mm Can be used with workpiece pallets WT 1/P Positioning via the HP 1/P positioning pins and the positioning bushings on the WT 1/P workpiece pallet Permissible vertical process force up to 400 N incl. WT 1/P. The positioning plate of the HP 1/P supports the WT 1/P on its carrying plate during this process. Repeat accuracy in X- and Y-direction: ± 0.025 mm Fixed stop for pre-positioning the arriving workpiece pallet. Can be replaced with a damper DA 1/B if necessary. With the HP 1/P in the version with variable lift, the lifting height above conveying level is max. 50 mm. The lifting height is infinitely variable. The version with a fixed lifting height 15 mm above the conveying level has an extremely low installation height. It is therefore particularly suited for use on manual workstations without restricting the legroom. The HP 1/P has three positions:- Bottom position: WT on the section are let through.- Center position: WT are stopped on the section (by integrated fixed stop or optional damper DA 1/B). The center position can be approached from the bottom and the top position.

Specifications
