SUPPORTING STRUCTURE 160-320+ AL L VAR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Section AL, section profile |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842996028 be shipped?
3842996028 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842996028 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842996028 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842996028, subject to availability and destination.

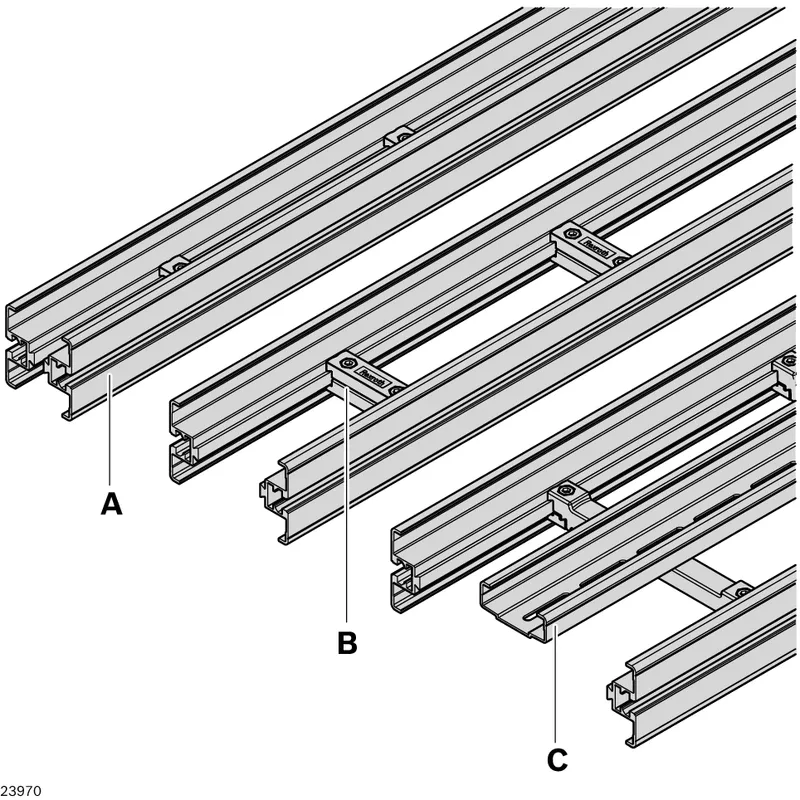

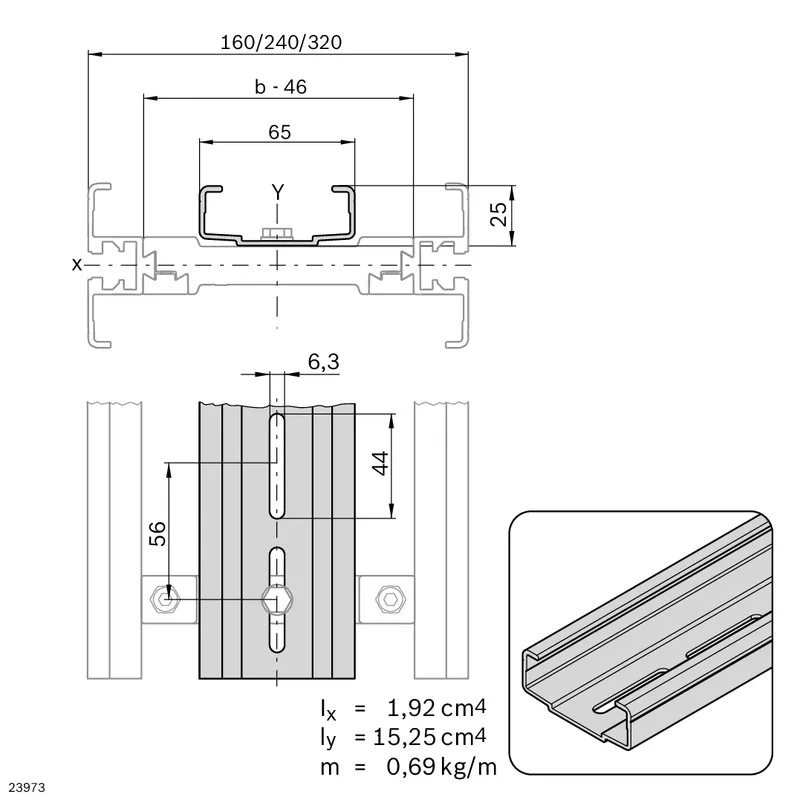

Support profile VFplus AL, L75-6000 Slot on the inside for attaching main components such as drive/return unit, curves, etc. External 10 mm slot for the simple attachment of lateral guides, supports or components from the modular aluminum framing system If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid Cross connector with mounting option for support profile Support profile with elongated holes at regular intervals for fastening
