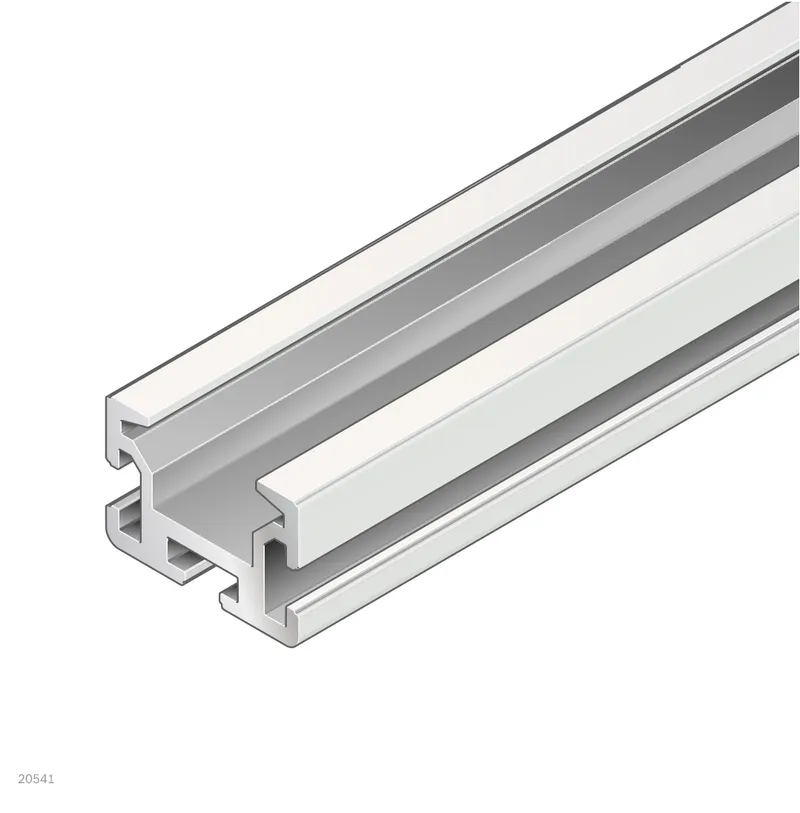

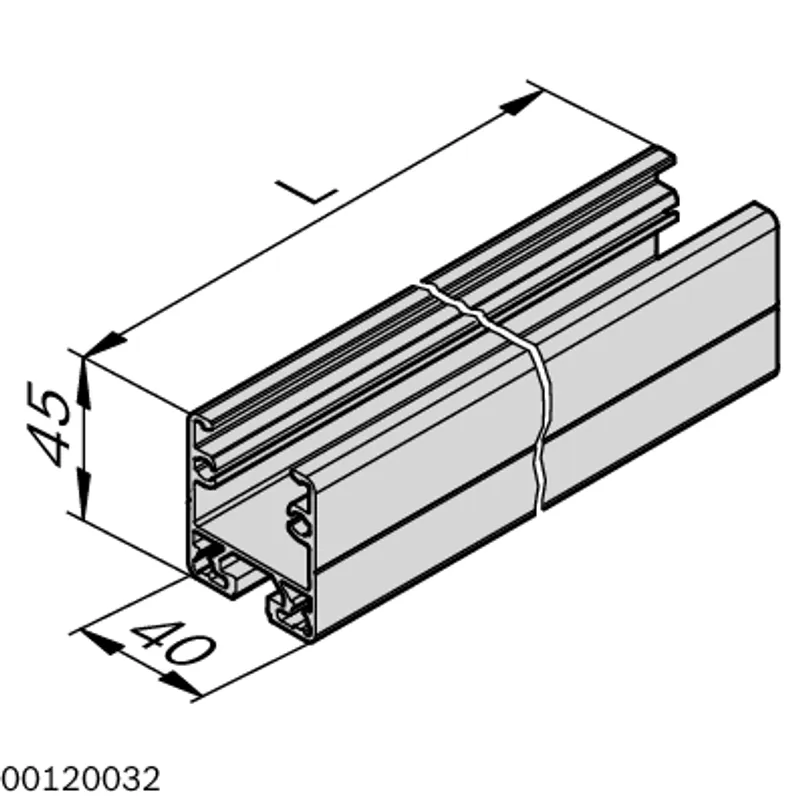

U-PROFILE 40X45
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lean conveyor tracks components |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842993316 be shipped?
3842993316 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842993316 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842993316 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993316, subject to availability and destination.

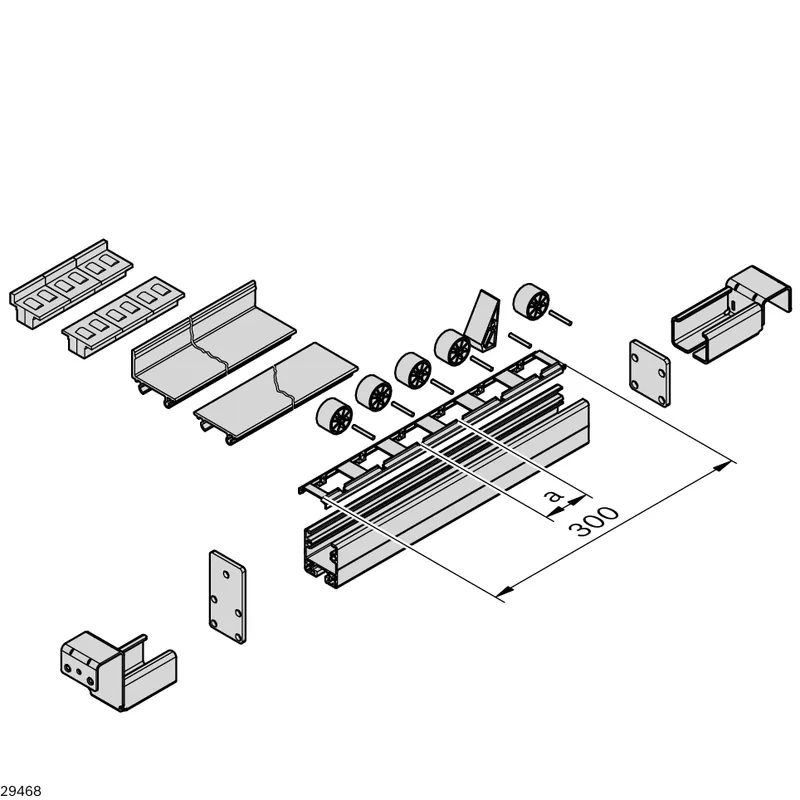

U-profile, L50-6000 Profiles which are normally used to construct TS 2plus and TS 4 transfer systems and lean conveyor tracks are also suitable for the construction of manual conveyor sections. Detailed information can be found in chapter 12 “Elements for manual movement” and in the respective special catalogs

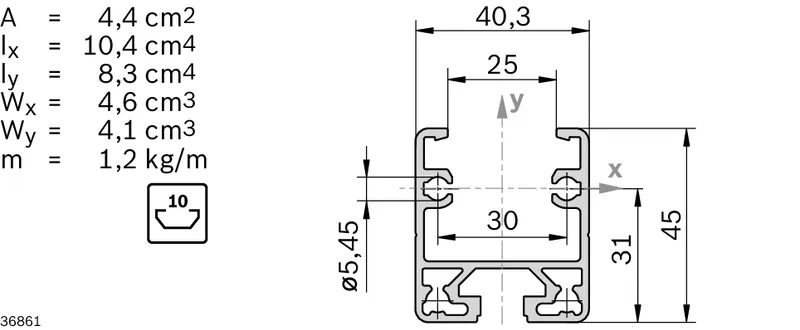

Specifications
Specifications
| Condition on delivery | Variable length |
| Profile slot | 10 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 30 |
| Mass [m] [kg] | 1.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 10.4 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 8.3 |
| Profile surface [A] [cm²] | 4.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 4.6 |
| Moment of resistance in the y-direction [Wy] [cm³] | 4.1 |
| Material | Aluminum, anodized |
| Weight [kg] | 0 |
