CONNECTING KIT 65+ SL BRIDGE S FLA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drive and return unit AL, connection kit |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842571170 be shipped?
3842571170 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842571170 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842571170 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842571170, subject to availability and destination.

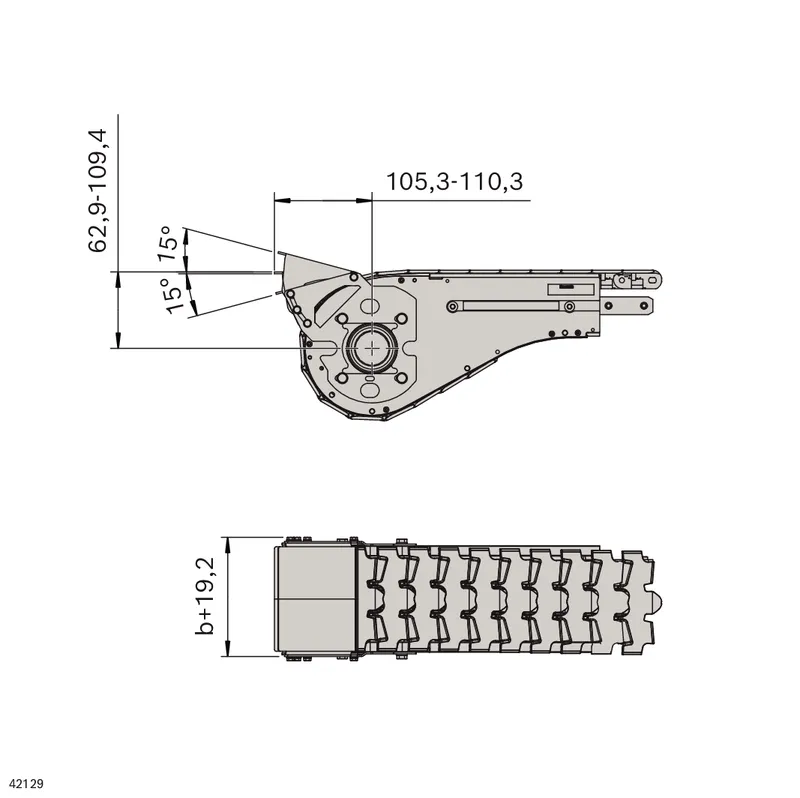

The sliding bridge is suitable for conveyed materials from approx. 80 mm in length (depending on the angle of inclination, speed, position of the center of gravity, product friction, etc.) The material to be conveyed is transferred via a corrugated metal sheet with an inclination adjustment of ±15° (gradient only) Version for flat conveyor chain Can be retrofitted into the basic unit and return unit at any time (cannot be combined with the transmission kit) Suitable for mounting on AL and STS
Specifications
Specifications
| Condition on delivery | Some assembly required |
| Delivery unit | 1 |
| Size [b] [mm] | 65 |
| Scope of delivery | Incl. fastening material |
| Modification | Version for the static friction chain is available on request from our modification department. COS@boschrexroth.de |
| Material | Steel, stainless |
| Weight [kg] | 0.52 |
