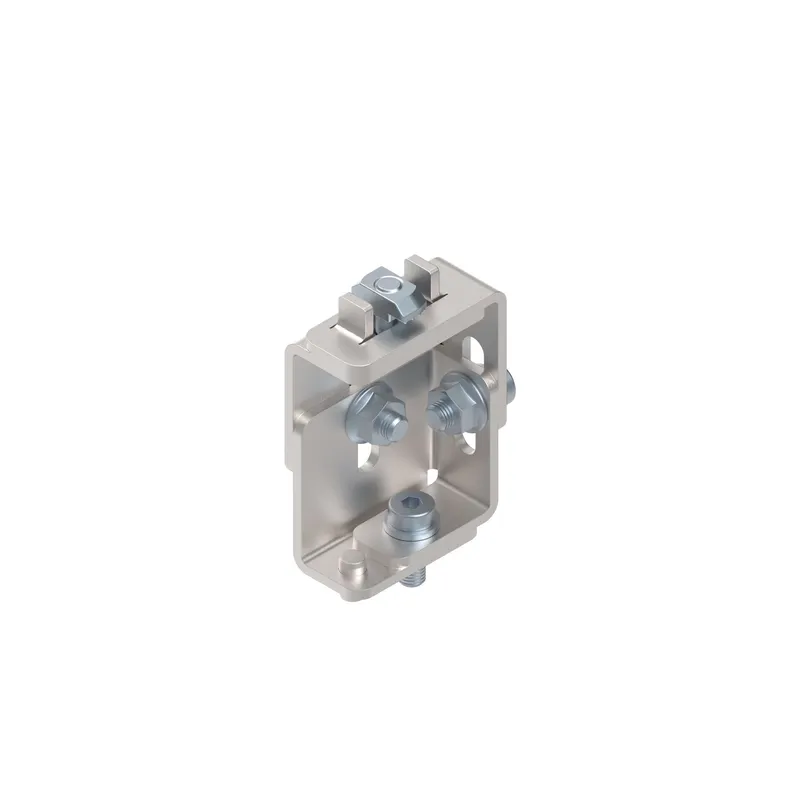

CONVEYOR LEG SET SZ 1/TM 60
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Leg sets TS 1 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842570343 be shipped?
3842570343 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842570343 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842570343 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842570343, subject to availability and destination.

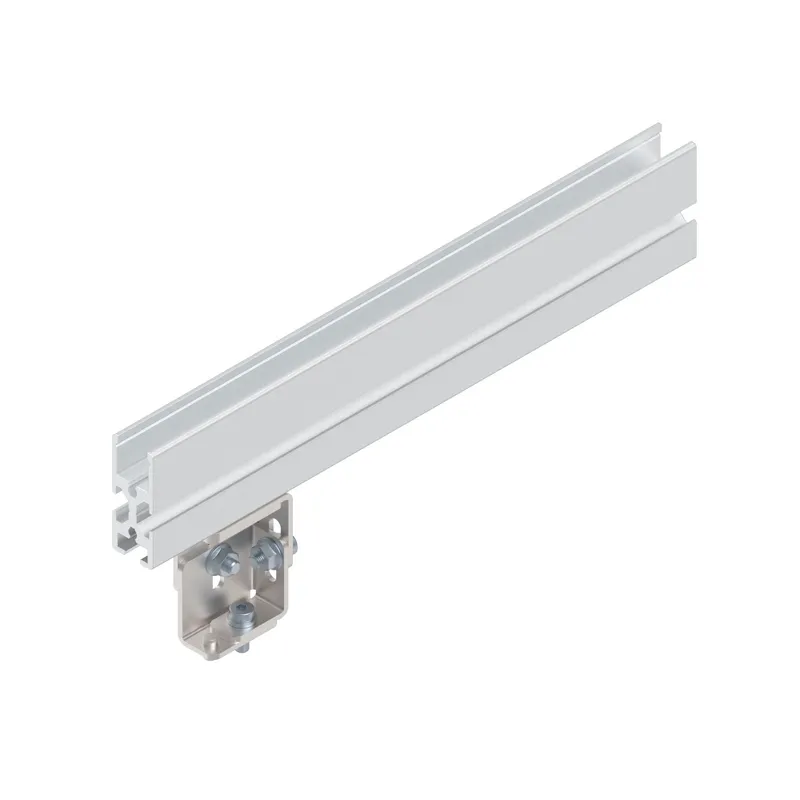

With the SZ 1/TM 60 leg set, the conveyor system can be mounted on flat surfaces (e.g. mounting tables) at short distances from the mounting level. The holder thus offers the possibility of implementing a flexible and simple installation. Realization of low transportation heights Assembly on machine table possible Variable height (45 – 60 mm)
Specifications
Specifications
| Condition on delivery | Not assembled |
| ESD | Yes |
| Delivery unit | 2 |
| Track width in direction of transport [b max] [mm] | 160 |
| Track width in direction of transport [b min] [mm] | 80 |

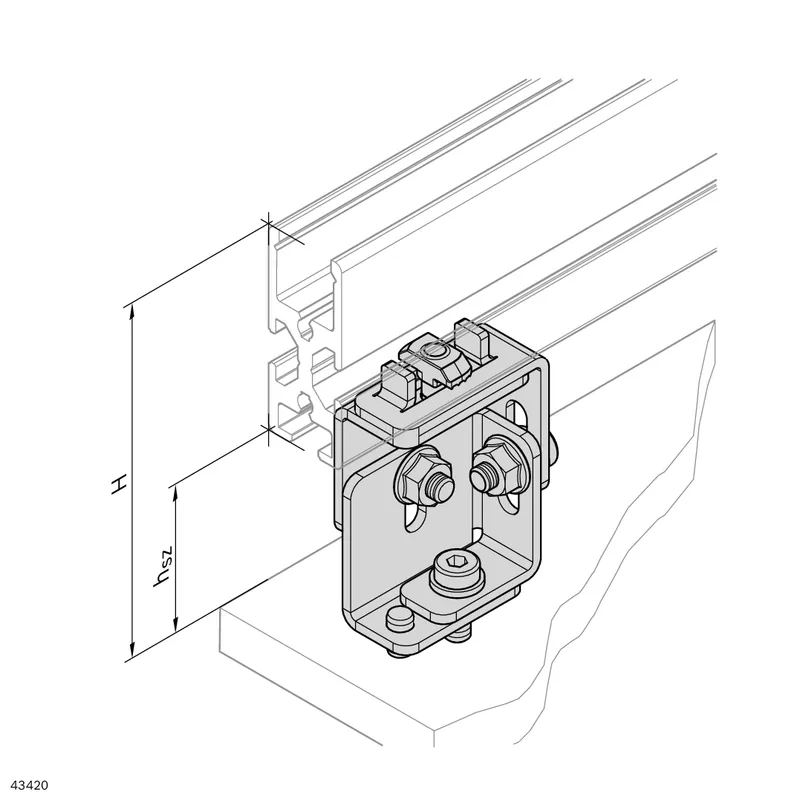

| Transportation height [H] | 107,5 … 122,5 mm |

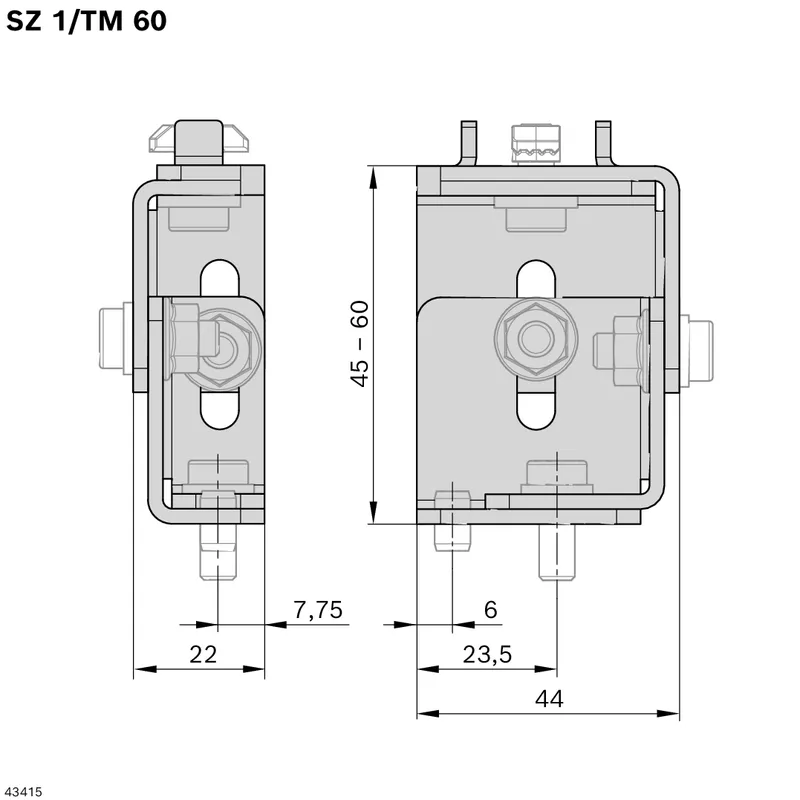

| Leg set height [hSZ min] [mm] | 45 |
| Leg set height [hSZ max] [mm] | 60 |
| Scope of delivery | Fastening material for assembly on belt sections; Incl. fastening material; Two-part support system with connection elements |
| Material | Steel, galvanized |
| Weight [kg] | 0.32 |
