CONNECTING KIT VF+ 120 BRIDGE BELT R

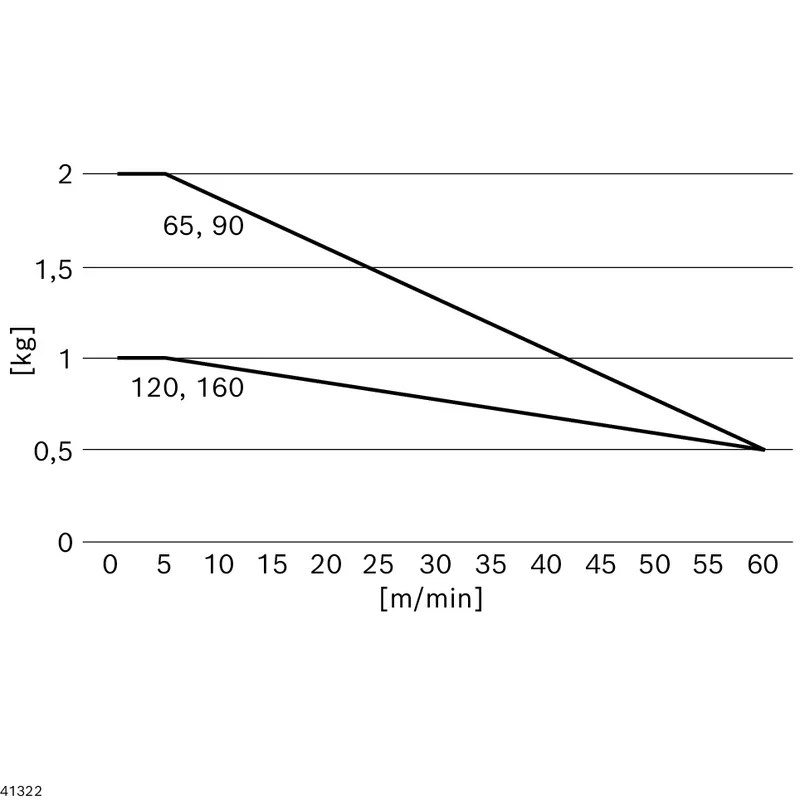

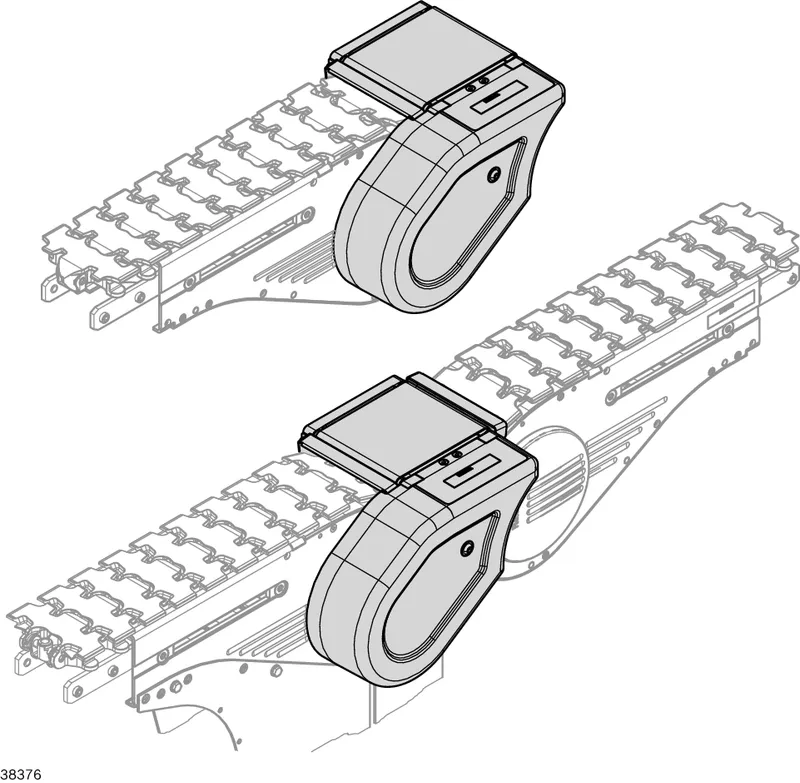

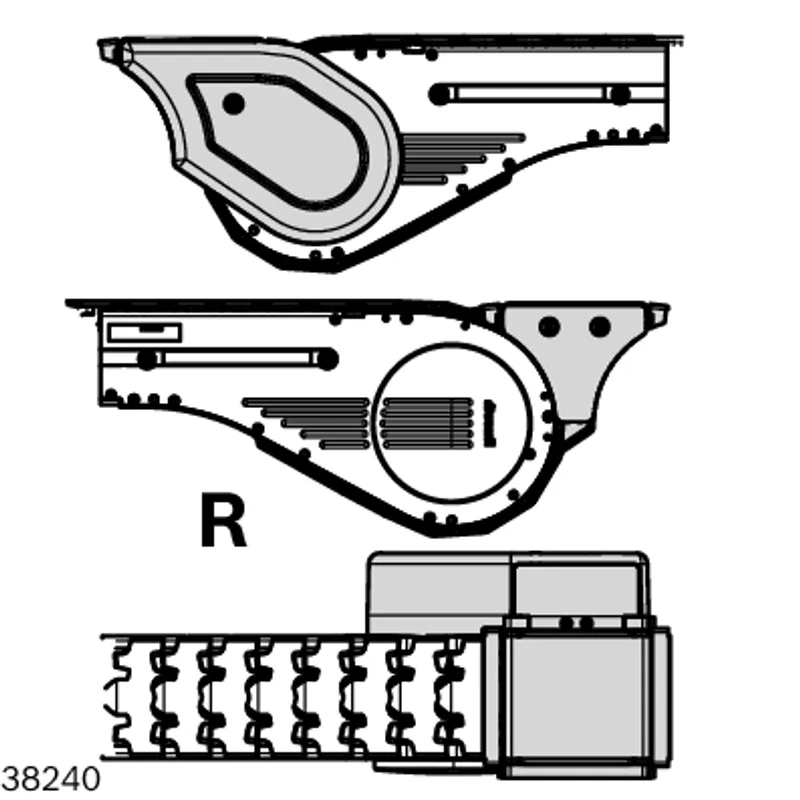

The active belt bridge is used as transfer unit for bridging the conveyor trench between the basic unit and the return unit between section start or end and a third-party conveyor or in connection drive Only for flat conveyor chain and static friction chain The active belt bridge is driven by a transmission (on the drive or return unit side) Suitable for conveyed materials from approx. 80 mm in length (depending on the speed, position of the center of gravity, product friction, etc.) Installation possible on both the drive and return side (make sure to use the correct L/R version) Not permitted for wet operation, rough ambient conditions or sharp-edged products Accumulation not permitted Load depending on the speed (see diagram) The speed of the adjacent conveyor should be approximately the same to prevent premature wear Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard Can be retrofitted into a standard configuration at any time Easy replacement of the belt from the top
