Home / Bosch Rexroth / Components of lift transverse units / Bosch Rexroth 3842554659

Bosch Rexroth 3842554659

ROLLER A=135

MPN: 3842554659
Category: Components of lift transverse units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842554659?

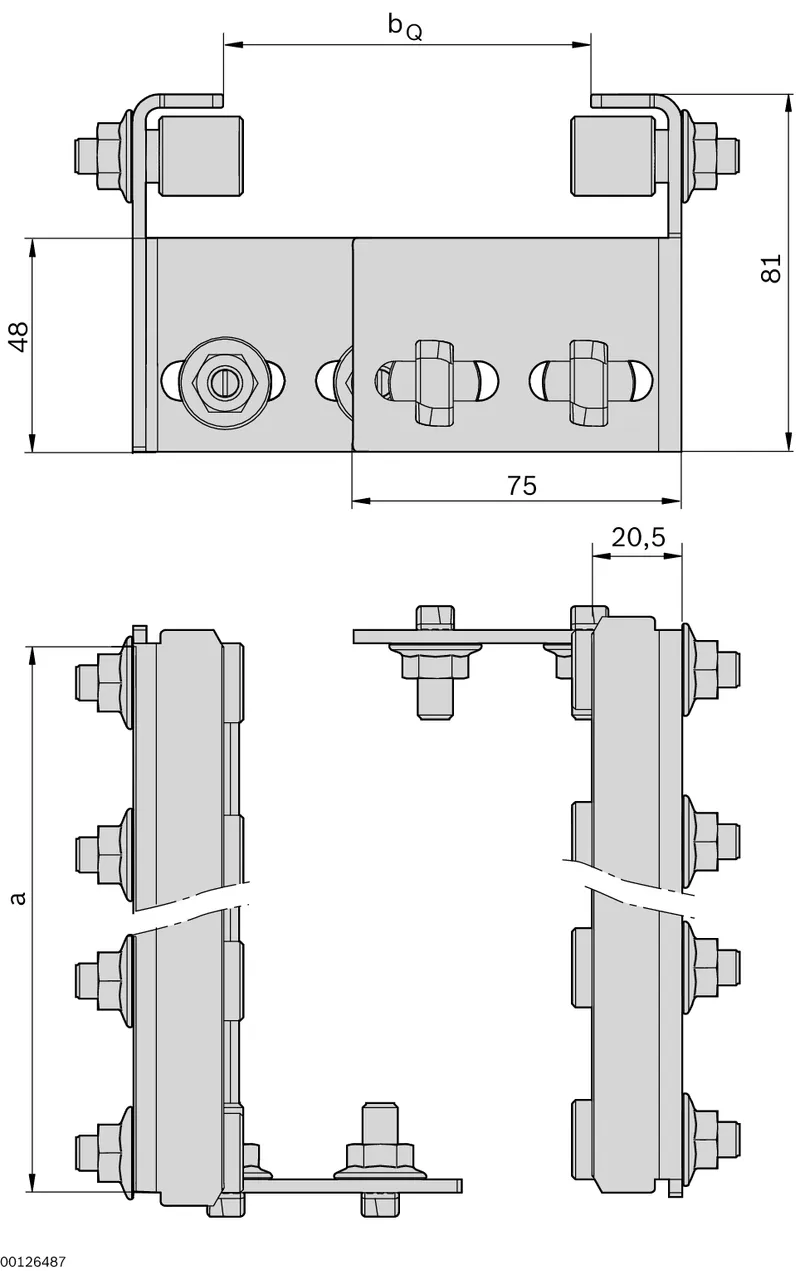

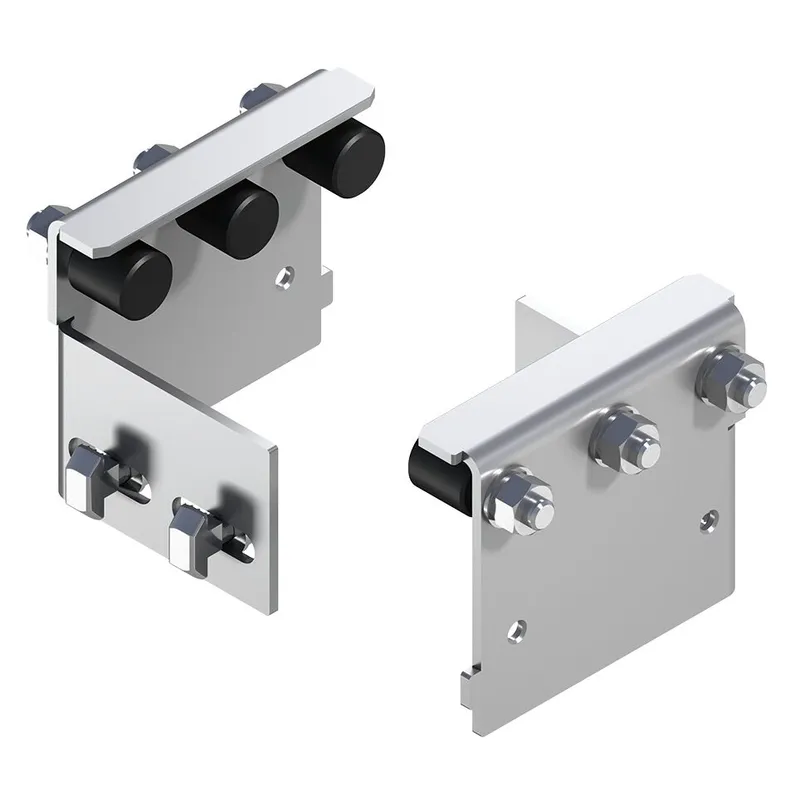

Intermediate section with roller a = 135

Unmounted roller section for transverse conveying of workpiece pallets between parallel conveyor sections at a distance of a = 45 to 135 mm

Use in conjunction with two HQ 2 lift transverse units

Without own drive

Conveyor medium: Rollers made of galvanized steel

Reversible operation possible

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS

Specifications

Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Weight [kg]	1.27
