RETURN 240+ AL

Name: RETURN 240+ AL
Brand: Bosch Rexroth
SKU: 3842547520

MPN: 3842547520 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Drive and return unit AL
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842547520 be shipped?

3842547520 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547520 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547520 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547520, subject to availability and destination.

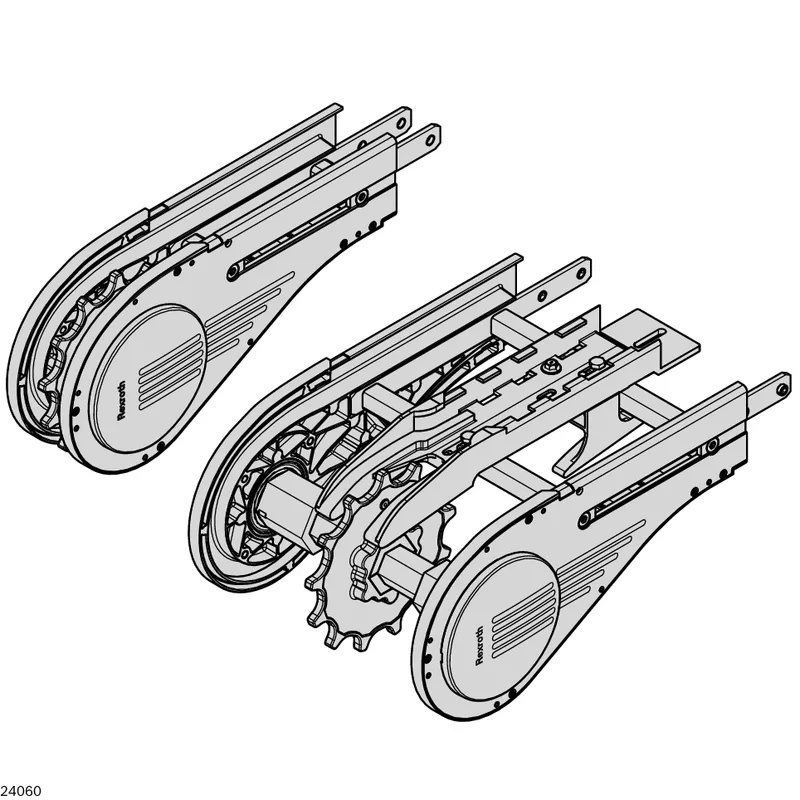

Return unit AL; VFplus 240 Reduced noise emission due to slide rails guided in the return unit Installation of the drive kit possible on the right/left (motor, coupling, flange) Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling Side elements with slot to attach holders for lateral guides, or similar

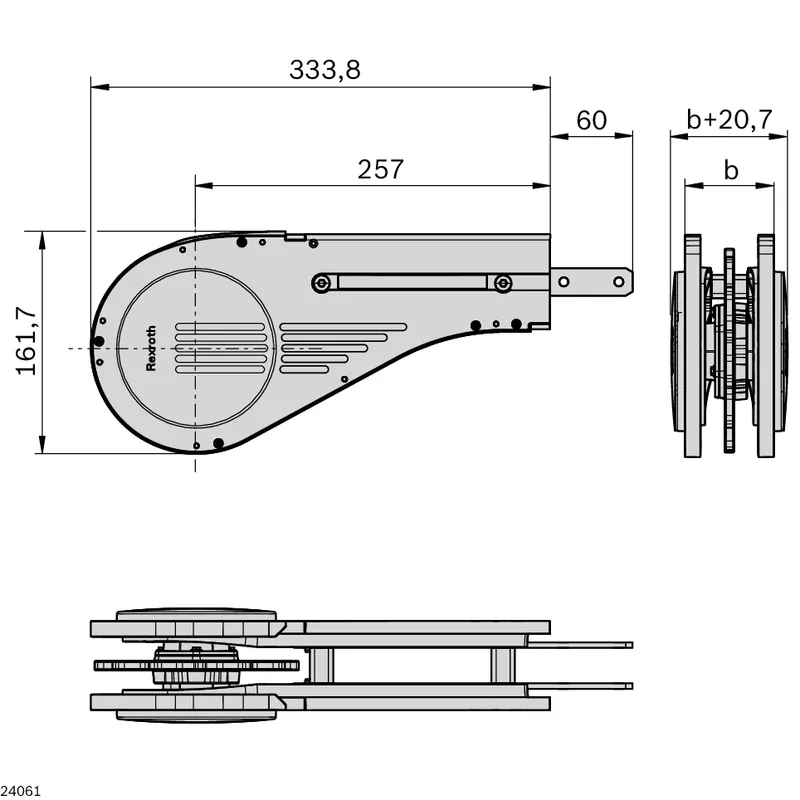

Specifications

Size [b] [mm]	240
Track width in direction of transport [b] [mm]	240
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Steel, galvanized; Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA; Housing: Diecast aluminum, powder-coated
Actual chain length [m]	0,742
Effective sliding rail length [m]	4x 0,2
Required accessories	For use as a drive:Assembly moduleDrive kitMotor support; Slide rail: Length calculation
Weight [kg]	3.08
