SECTION PROFILE 90+ AL 12X6070
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Section AL, section profile |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842546644 be shipped?
3842546644 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842546644 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842546644 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842546644, subject to availability and destination.

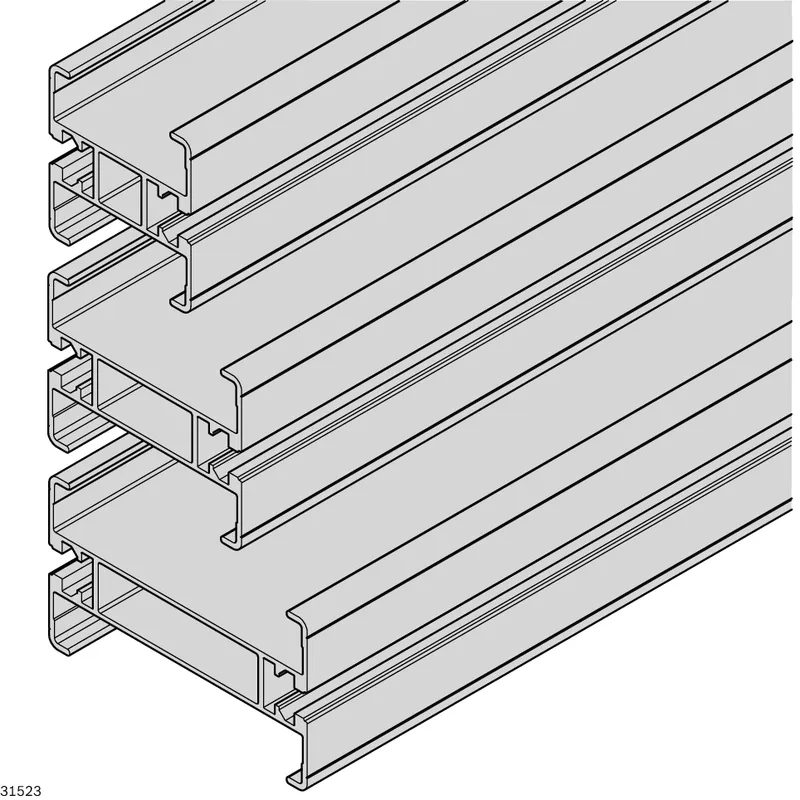

Section profile VFplus 90 AL, L6070 The section profile is the supporting element when building straight conveyor sections and is used for mounting all necessary components. Size: 65, 90, 120 Slot on the inside for attaching main components such as drive/return unit, curves, etc. Slot on the outside for fastening lateral guides, supports, or other accessories If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid Special constructions can be attached quickly and simply using components from the modular aluminum framing system and the external 10 mm slot.
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Profile slot | 10 |
| Color | Natural |
| Delivery unit | 12 |
| Mass [m] [kg] | 2.42 |

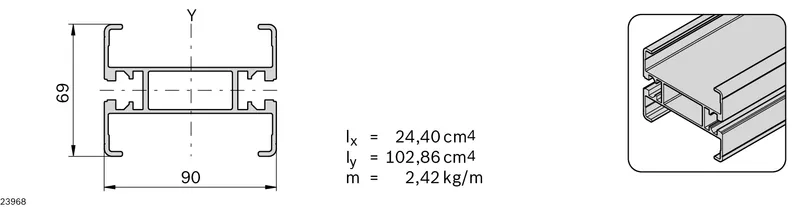

| Size [b] [mm] | 90 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 24.4 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 102.86 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Required accessories | Profile connector; Slide rail |
| Recommended accessories | Cover profile |
| Weight [kg] | 180.7 |
