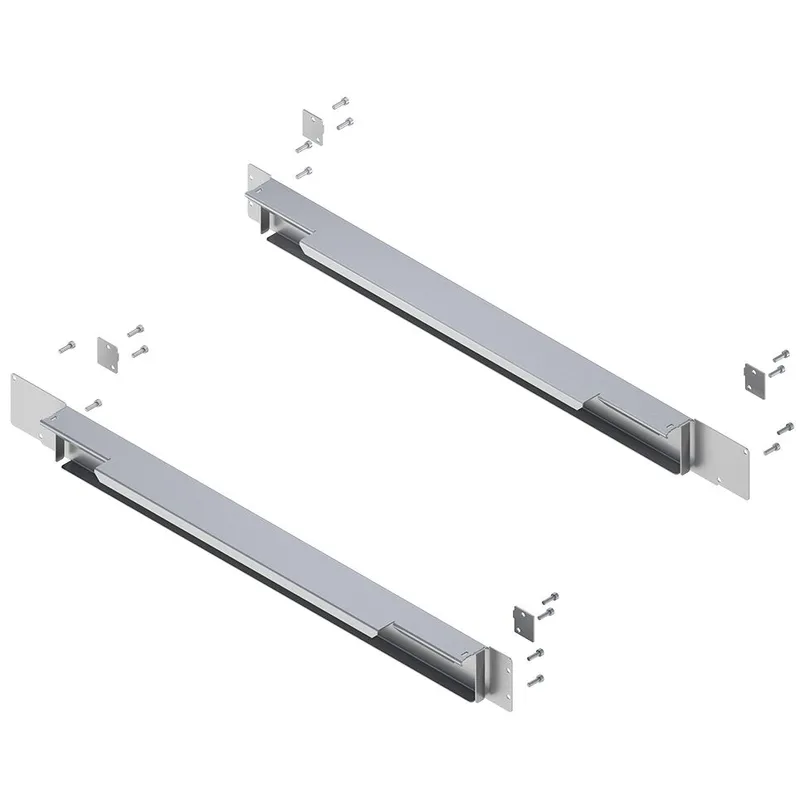

STOP SHEET 455 130

ST5/XH, ST5/H end plate; AS on left 455/130 The protective covers and end plates are provided in working areas to increase safety They can be ordered separately for conveyor units; for curves, diverters, and junctions they are optionally included in the scope of delivery (SC = 2) The protective covers and end plates are clipped between the rollers using spring elements <b>Note:</b> Do not walk on the protective covers or end plates Protective covers for various widths and roller spacings Special covers for conveyor section center, transitions, and ends <b>End plates</b> End plate, left drive side (<b>D</b>) End plate, right drive side (<b>E</b>) Lateral guide cover Lateral guide protective cover (<b>F</b>), 2x required <b>Thread forming screw</b> Screw (<b>G</b>), 4 required for each end plate (<b>D</b>/<b>E</b>) and 2 for each lateral guide cover (<b>F</b>) Spring element Spring element (<b>H</b>), 2x required for each end plate Caps cover cap for the open profile ends (<b>J</b>), 2x required for each section end
