CARRYING PLATE WT5 / 455X650X19,05
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Carrying plates, standard |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842545267 be shipped?
3842545267 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842545267 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842545267 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842545267, subject to availability and destination.

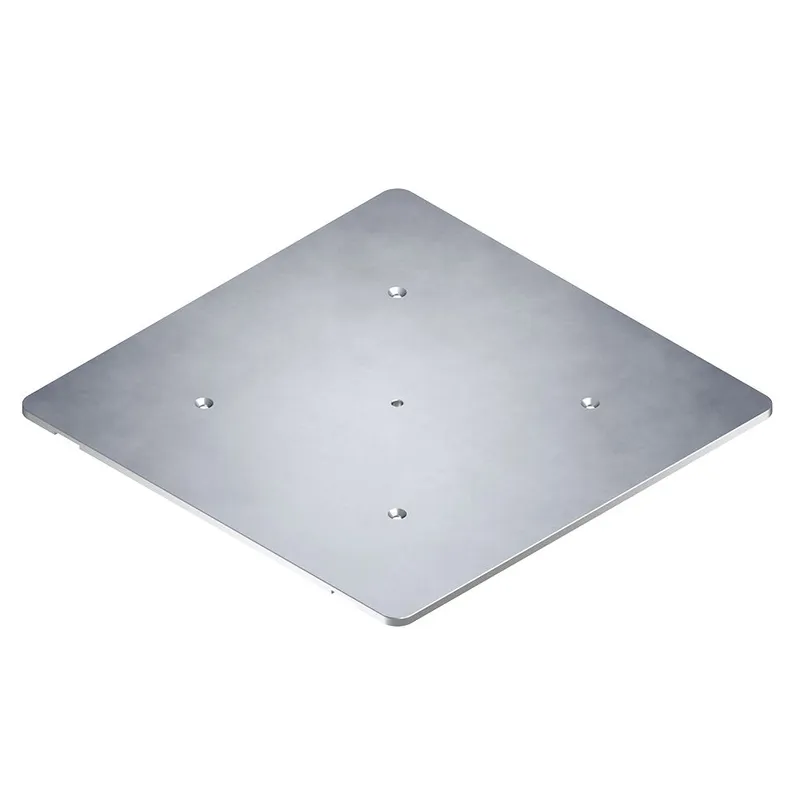

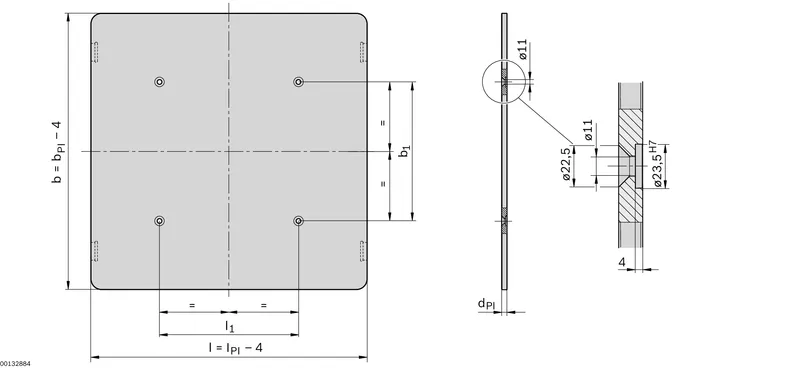

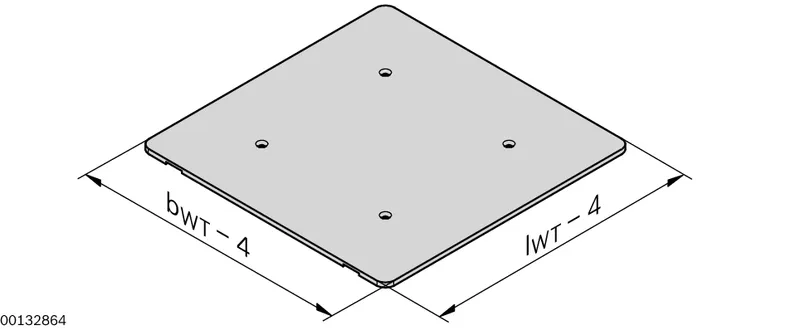

Carrying plates, standard 19.05 455/650 For combination with a base pallet to form a WT 5 workpiece pallet For finishing fixtures by the user 6 standard sizes in 2 thicknesses Carrying plate, ready to assemble with mounting holes <b>Notice:</b> To assemble the carrying plate on the base body: Positioning bushing set 3842545264
Specifications
Specifications
| Plate thickness [dPL] [mm] | 19.05 |
| Workpiece pallet length [lWT] [mm] | 650 |
| Plate weight [mPL] [kg] | 14.9 |
| Flatness [mm] | 0.8 |
| Material | Aluminum |
| Workpiece pallet width [bWT] [mm] | 455 |
| Required accessories | Positioning bushing kit |
| Weight [kg] | 14.9 |
