BASE BODY WT5 /845X1040
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Base body |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842545095 be shipped?
3842545095 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842545095 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842545095 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842545095, subject to availability and destination.

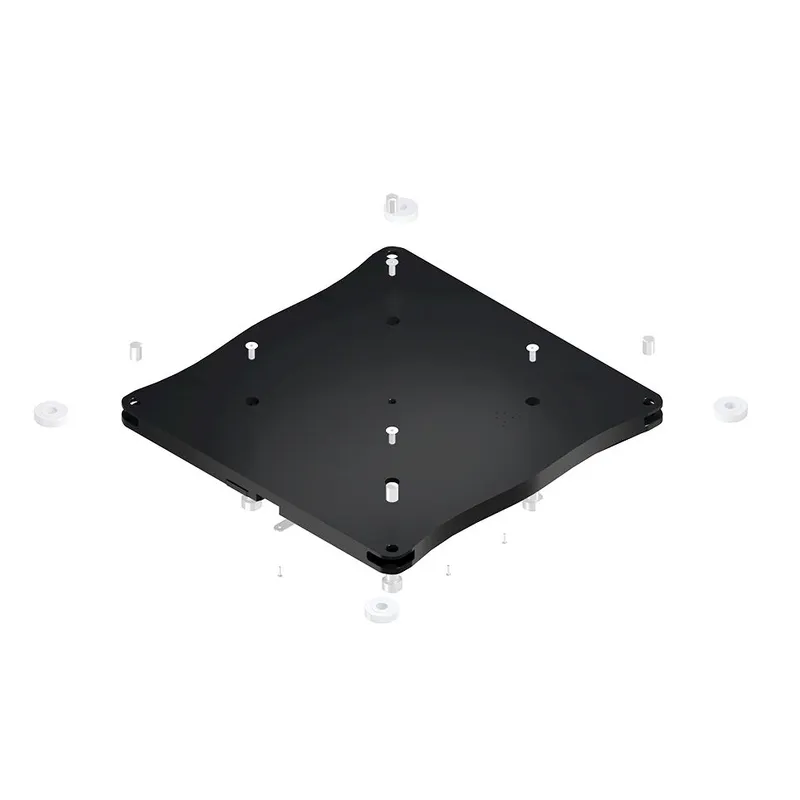

Base body WT 5, 845/1040 The base pallet is the interface between the transfer system and the carrying plate with workpiece fixtures The base pallet is designed to deal with the highest loads 6 standard sizes Optimized contours for easier movement through curves Stop gate stop on interior and exterior of the workpiece pallet surface (in the longitudinal conveyor direction) Can be combined with mobile data tags from the ID 200 RFID system

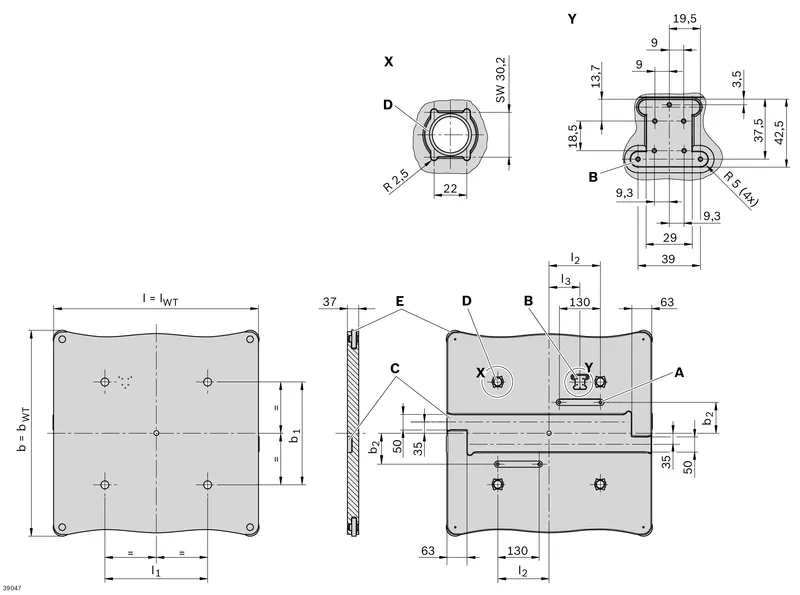

Specifications
Specifications
| Length [l1] [mm] | 715 |
| Length [l2] [mm] | 357.5 |

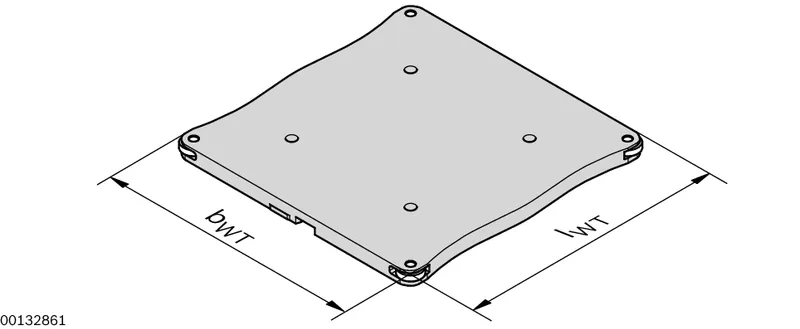

| Workpiece pallet length [lWT] [mm] | 1040 |
| Weight workpiece pallet [mWT] [kg] | 27.2 |
| Length [l3] [mm] | 162.5 |
| Delivery information | Not assembled, attachment kit available, without carrying plate |
| Material | PE-UHMW, ESD-compatible |
| Workpiece pallet width [bWT] [mm] | 845 |
| Dimension [b1] [mm] | 520 |
| Dimension [b2] [mm] | 97.5 |
| Required accessories | Attachment kit incl. rollers, roller pins, damping elements and sensor plates |
| Recommended accessories | Carrying plate; Positioning bushing kit |
| Weight [kg] | 26.7 |
