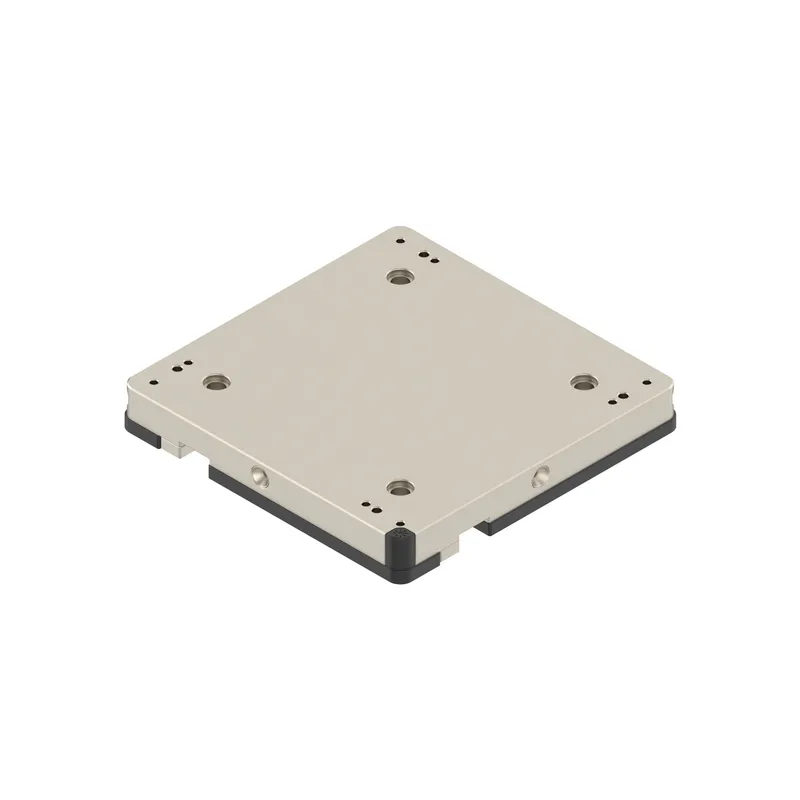

WORKPIECE PALLET WT 1/P-AL-160 KPL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Workpiece pallet WT 1/P |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842530445 be shipped?
3842530445 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842530445 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842530445 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842530445, subject to availability and destination.

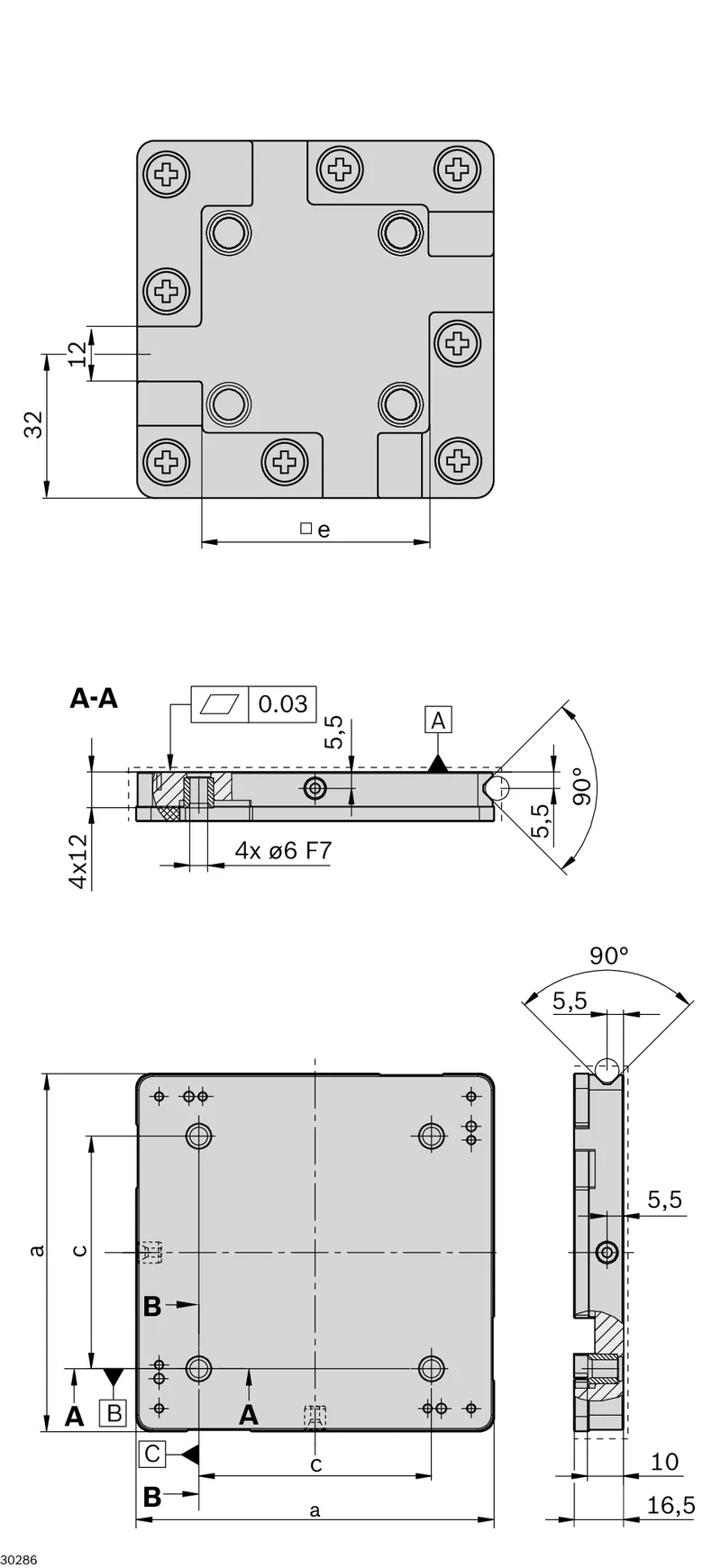

Workpiece pallet WT 1/P 160x160 3 standard sizes Aluminum all-metal construction Double-sided dovetail slot for positioning in the positioning unit PE 1/P Positioning bushings for use with the lift positioning unit HP 1/P Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200 Replaceable outer soles
Specifications
Specifications
| ESD | Yes |
| Dimension [a] [mm] | 160 |
| Scope of delivery | Workpiece pallet, complete |
| Delivery information | Fully assembled |
| Material information | Wear pad: Polyamide (PA 66); Workpiece pallet: Aluminum, chem. Nickel-plated |
| Workpiece pallet width [bWT] [mm] | 160 |
| Clean room classification | ISO class 7 |
| Dry room [%rF] | <1 |
| Dimension [c] [mm] | 118 |
| Dimension [d] [mm] | 59 |
| Dimension b [mm] | 132 |
| Workpiece pallet length [lWT] [mm] | 160 |
| Weight workpiece pallet [mWT] [kg] | 0.76 |
| Flatness [mm] | 0.05 |
| Admissible WT contact area weight [FGL] [kg] | 3 |
| Recommended accessories | Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT; Switching element |
| Weight [kg] | 0.79 |
