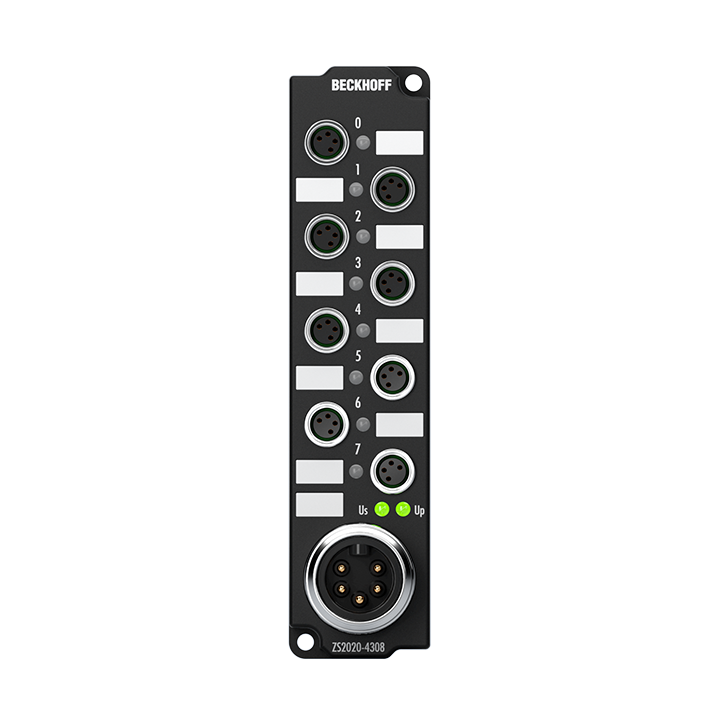

Power distribution box
MPN: ZS2020-4308 · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Power connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZS2020-4308 be shipped?
ZS2020-4308 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS2020-4308 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS2020-4308 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS2020-4308, subject to availability and destination.
power distribution box, 8 x M8, 4-pin, 1 x 7/8“
Specifications
Specifications
| Number of outputs | 8 |
| Power supply connection | 7/8" plug, 5-pin |
| Output connections | M8, screw type, 4-pin |
| Current load | I∑ = 4 A per US and UP |
| Dimensions (W x H x D) | 30 mm x 126 mm x 31 mm |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Protection rating | IP65/66/67 (according to EN 60529) |
| Installation position | variable |
| Nominal voltage | 24 V DC |
| Material | PA6 (polyamide) |
| Approvals/markings | CE |
