Beckhoff ZK4800-8022-0xxx

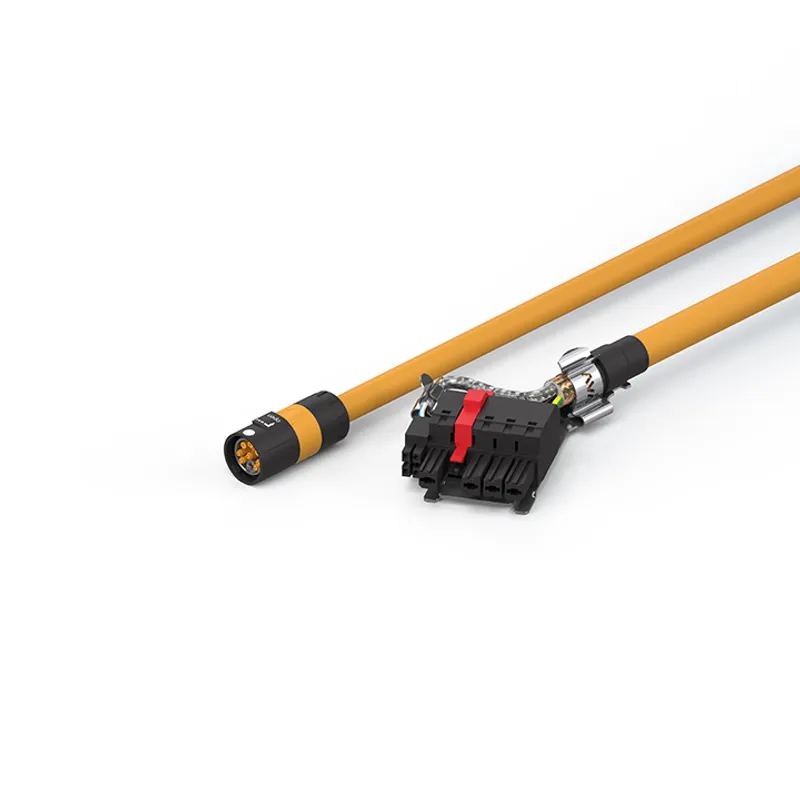

Motor connection cable 1 mm², drag-chain suitable

MPN: ZK4800-8022-0xxx
Category: Motor cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZK4800-8022-0xxx?

Highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 81 mm (7 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 1 mm² + (2 x 0.75 mm²) + (2 x AWG22)). The cable is

Specifications

Installation size	Pitch dimension 7.62 mm
Connector type	plug
Contact type	female
Number of positions (face)	4-pin
Mating cycles	25
Wire termination	Push-in
Max. wire cross-section	AWG24…AWG8 (0.5 mm²…10 mm²)
Operating voltage	max. 1000 V AC (UL), Uo/U 600/1000 V (VDE)
Cross-section (power)	1.00 mm² (approx. AWG18)
Cross-section (signal)	AWG22 (approx. 0.34 mm²)
Use	drag-chain suitable
Material jacket	TPU (thermoplastic polyurethane)
Outer cable diameter	11.6 mm ± 0.4 mm (0.4567" ± 0.0157")
Min. bending radius, fixed installation	5 x outer cable diameter
Max. number of cycles	5 million
Jacket color	orange
A1	44.00 mm
A2	19.00 mm
B1	60.00 mm
B2	47.00 mm
