Beckhoff ZB7401-xxxx

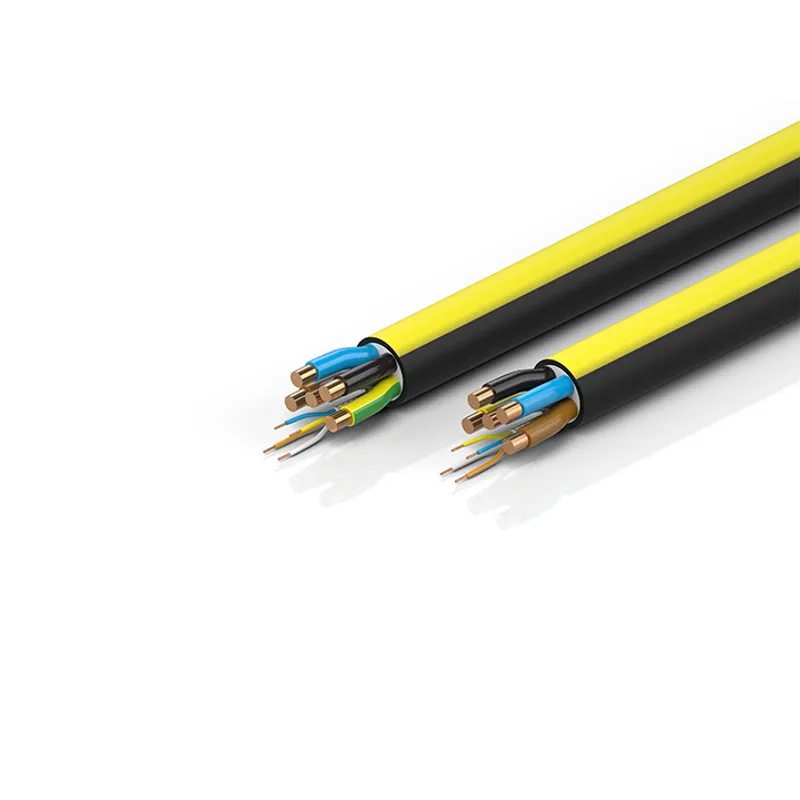

EtherCAT/Ethernet cable, no overall shield, PUR, drag-chain suitable, 5 G 16 mm² + (1 x 4 x AWG22), black with yellow stripe, OD = 24.0 mm (±0.2 mm)
- MPN
- ZB7401-xxxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff ZB7401-xxxx?
EtherCAT/Ethernet cable, no complete shield, PUR, drag-chain suitable, 5 G 16 mm² + (1 x 4 x AWG22), black with yellow stripe, OD = 24.0 mm (±0.2
Specifications
Specifications
| Cross-section (power) | 5 x 16.0 mm² (approx. AWG5) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 24.0 mm ± 0.5 mm (0.9448" ± 0.01969") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
ZB7401-xxxx: frequently asked questions
When can ZB7401-xxxx be shipped?
ZB7401-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZB7401-xxxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZB7401-xxxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZB7401-xxxx, subject to availability and destination.
