Home / Beckhoff / Hybrid cables / Beckhoff ZB7211-xxxx
Beckhoff

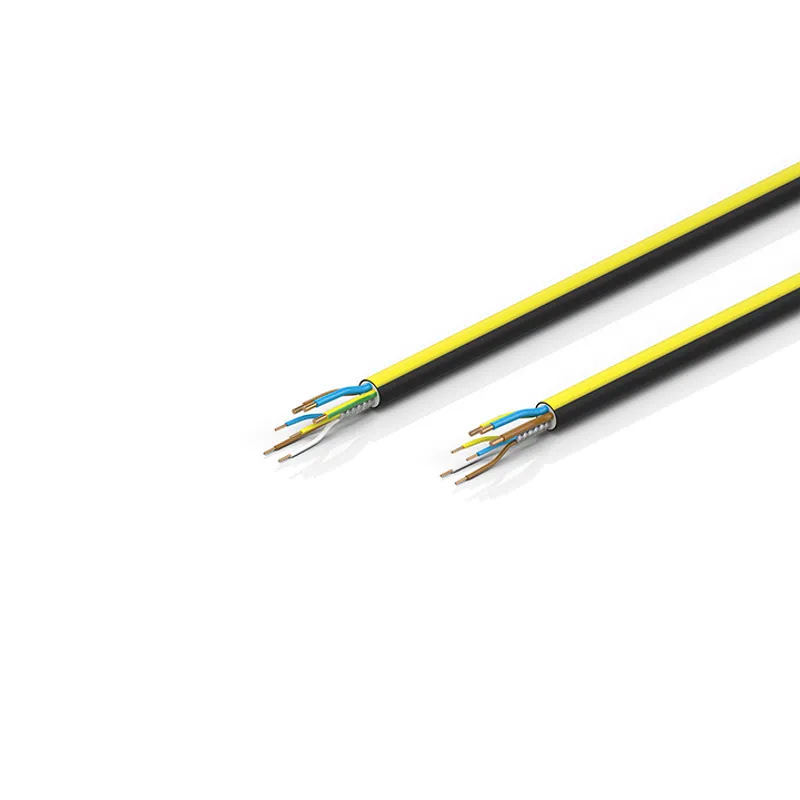

Beckhoff ZB7211-xxxx

EtherCAT/Ethernet cable, no overall shield, PUR, drag-chain suitable, 3 G 2.5 mm² + (1 x 4 x AWG22), black with yellow stripe, OD = 11.1 mm (±0.2 mm)

MPN
ZB7211-xxxx
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZB7211-xxxx?

EtherCAT/Ethernet cable, no overall shield, PUR, drag-chain suitable, 3 G 2.5 mm² + (1 x 4 x AWG22), black with yellow stripe, OD = 11.1 mm

Specifications

Specifications

Operating voltage≤ 600 V
Cross-section (power)3 x 2.5 mm² (approx. AWG14)
Cross-section (Ethernet)1 x 4 x 0.34 mm² (AWG22)
Usedrag-chain suitable
Material jacketPUR (polyurethane)
Outer cable diameter11.1 mm ± 0.2 mm (0.4370" ± 0.0079")
Min. bending radius, moved7 x outer cable diameter
Min. bending radius, fixed installation4 x outer cable diameter
Max. number of cycles3 million
Jacket colorblack (similar to RAL 9005) with yellow stripe (similar to RAL 1003)

ZB7211-xxxx: frequently asked questions

When can ZB7211-xxxx be shipped?

ZB7211-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZB7211-xxxx in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZB7211-xxxx and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZB7211-xxxx, subject to availability and destination.
