Beckhoff ZB7100-xxxx

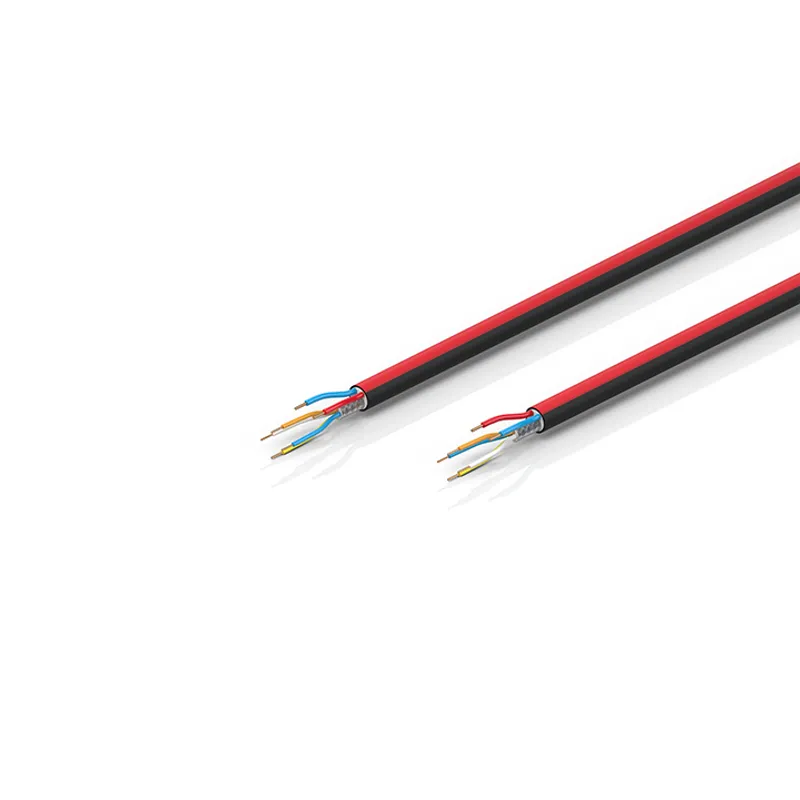

EtherCAT P cable, no overall shield, PUR, drag-chain suitable, 2 x 0.75 mm² + (1 x 4 x AWG22), black with red stripe, OD = 9.0 mm (±0.2 mm)

MPN: ZB7100-xxxx
Category: Hybrid cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZB7100-xxxx?

EtherCAT P cable, no overall shield, PUR, drag-chain suitable, 2 x 0.75 mm² + (1 x 4 x AWG22), black with red stripe, OD = 9.0 mm

Specifications

Specifications

Cross-section (Ethernet)	1 x 4 x 0.34 mm² (AWG22)
Cross-section (power)	2 x 0.75 mm² (approx. AWG18)
Use	drag-chain suitable
Material jacket	PUR (polyurethane)
Outer cable diameter	9.0 mm ± 0.2 mm (0.3543" ± 0.0079")
Jacket color	black (similar to RAL 9005) with red stripe (similar to RAL 3020)
