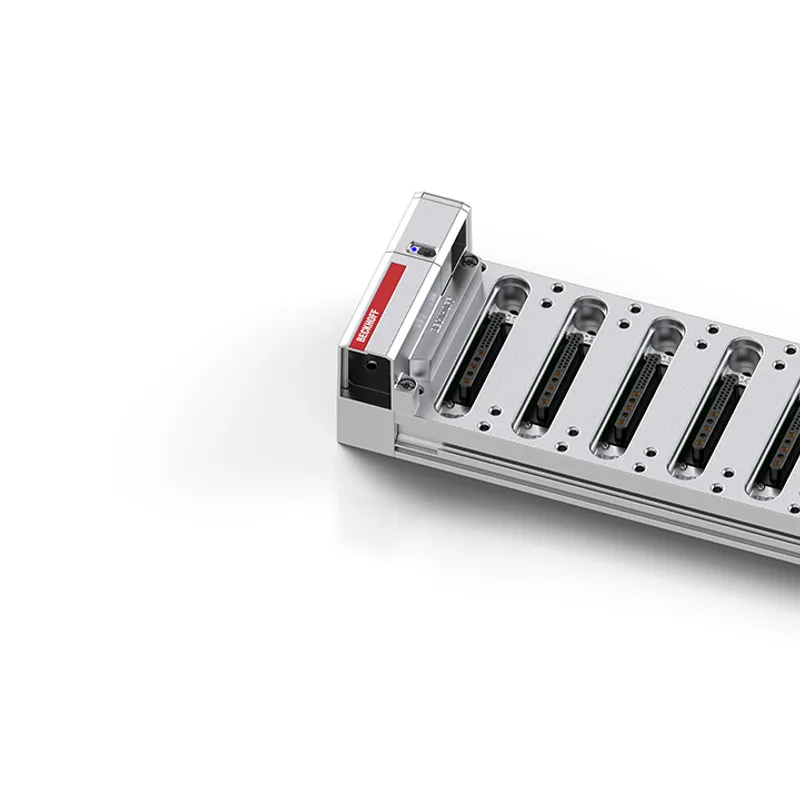

Baseplate, 1-row, 8 data slots, extended functions
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | MBxxxx | Baseplates |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MB1108-0000-0000 be shipped?
MB1108-0000-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MB1108-0000-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MB1108-0000-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MB1108-0000-0000, subject to availability and destination.
The 1-row baseplates of the MBxxxx series are available in various lengths and are used to accommodate 1-row function modules. The data connectors provide 24 V DC or 48 V DC and EtherCAT for the connected modules. Potential equalization points and an
Specifications
Specifications
| Product category | baseplates |
| Category/version | 1-row |
| Row 1 | 8 x data connector |
| Potential equalization points | 2 |
| Additional functions | yes |
| Dimensions (W x H x D) | 390 mm x 110 mm x 32.5 mm (+ 37 mm PE cover) |
| Operating temperature | 0…50°C |
| Storage temperature | -25…+60°C |
| Protection rating | IP65/67 |
| Approvals/markings | CE, UL (in preparation) |
